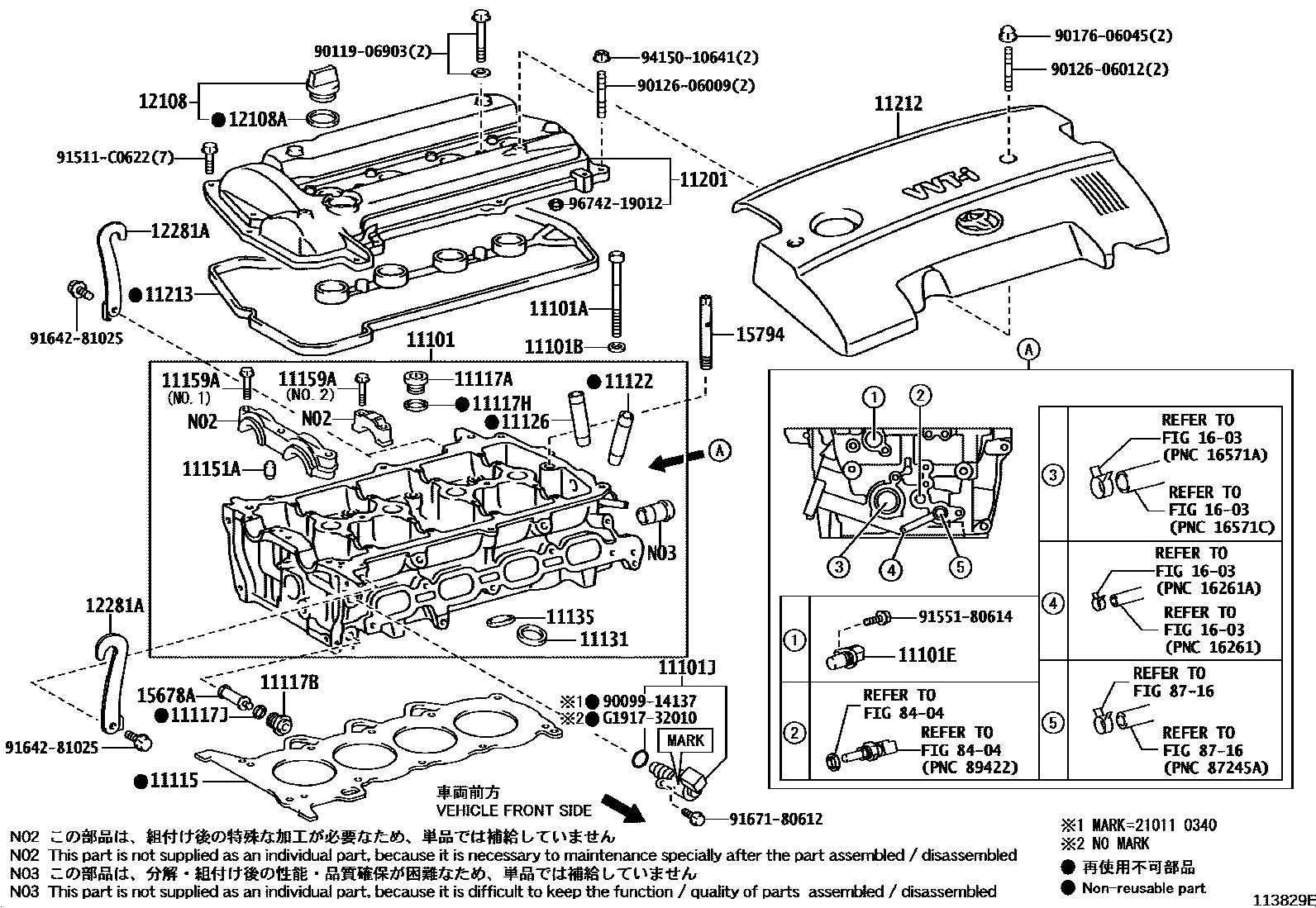

CYLINDER HEAD

0001 1 0002 1 0003 1

11101HEAD SUB-ASSY, CYLINDER

main11101-21033i1NZFE..NCP105200509-201008

sub11101-21034

main11101-21050i1NZFE..NCP100200509-201008

sub11101-21051

main11101-23080i2SZFE..SCP100200509-201008

sub11101-23904

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02126i1NZFE..NCP10#200509-200701

sub90910-02170

main90910-02143i2SZFE..SCP100200509-200712

main90910-02170i1NZFE..NCP10#200701-200712

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024i1NZFE..NCP10#200509-200712

main90201-10136i2SZFE..SCP100200509-200712

11101ESENSOR, CAM POSITION

main90919-05024i1NZFE..NCP10#200509-200712

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-21011i1NZFE..NCP10#200509-200712

11115GASKET, CYLINDER HEAD

main11115-21050i1NZFE..NCP10#200509-200712

sub11115-21080

main11115-23050i2SZFE..SCP100200509-200712

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-14013i2SZFE..SCP100200509-200712

main90341-20002i1NZFE..NCP105200509-200712

main90341-24013i1NZFE..NCP100200509-200712

sub90341-24011

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-14013i1NZFE..NCP10#200509-200712

11117HGASKET(FOR WATER HOLE)

main90430-20004i1NZFE..NCP105200509-200712

main90430-24246i1NZFE..NCP100200509-200712

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1NZFE..NCP10#200509-200712

11122BUSH, INTAKE VALVE GUIDE

main11122-21010i1NZFE..NCP105200509-200712

main11122-23020i2SZFE..SCP100200509-200712

main11122-75020i1NZFE..NCP100200509-200712

main11123-21010i1NZFE..NCP105200509-200712

main11123-23020i2SZFE..SCP100200509-200712

main11123-75020i1NZFE..NCP100200509-200712

11126BUSH, EXHAUST VALVE GUIDE

main11122-21010i1NZFE..NCP105200509-200712

main11122-23020i2SZFE..SCP100200509-200712

main11122-75020i1NZFE..NCP100200509-200712

main11123-21010i1NZFE..NCP105200509-200712

main11123-23020i2SZFE..SCP100200509-200712

main11123-75020i1NZFE..NCP100200509-200712

11131SEAT, INTAKE VALVE

main11131-21020i1NZFE..NCP10#200509-200712

sub11131-21021

main11131-23020i2SZFE..SCP100200509-200712

main11132-21020i1NZFE..NCP10#200509-200712

sub11132-21021

main11132-23020i2SZFE..SCP100200509-200712

11135SEAT, EXHAUST VALVE

main11135-21020i1NZFE..NCP100200509-200712

sub11135-21041

main11135-21040i1NZFE..NCP105200509-200712

sub11135-21041

main11135-23030i2SZFE..SCP100200509-200712

main11136-21020i1NZFE..NCP100200509-200712

main11136-21040i1NZFE..NCP105200509-200712

main11136-23030i2SZFE..SCP100200509-200712

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90250-06001i1NZFE..NCP10#200509-200712

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080i1NZFE..NCP10#200509-200712

main90119-06884i2SZFE..SCP100200509-200712

main90119-08A29i1NZFE..NCP10#200509-200712

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-21050i1NZFE..NCP105200509-200712

sub11201-21051

main11201-21070i1NZFE..NCP100200509-200712

main11201-23080i2SZFE..SCP100200509-200908

sub11201-23081

main11201-23081i2SZFE..SCP100200909

11212COVER, CYLINDER HEAD, NO.2

main11212-21021i1NZFE..NCP100200509-200712

sub11212-21040

main11212-21031i1NZFE..NCP105200509-200510

sub11212-21032

main11212-21032i1NZFE..NCP105200510-200712

sub11212-21060

11213GASKET, CYLINDER HEAD COVER

main11213-21011i1NZFE..NCP105200509-200712

main11213-21020i1NZFE..NCP100200509-200712

main11213-23030i2SZFE..SCP100200509-200712

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i1NZFE..NCP10#200509-200712

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i2SZFE..SCP100200509-200712

12281AHANGER, ENGINE, NO.1

main12281-21010i1NZFE..NCP10#200509-200712

main12281-23040i2SZFE..SCP100200509-200712

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1NZFE..NCP10#200509-200712

15794NOZZLE, CYLINDER HEAD OIL

main15794-21010i1NZFE..NCP100200509-200712

1603

8404

8716

9009914137

main90099-14137

9011906903

main90119-06903

9012606009

main90126-06009

9012606012

main90126-06012

9017606045

main90176-06045

91511C0622

main91511-C0622

9155180614

main91551-80614

9164281025

main91642-81025

9167180612

main91671-80612

9415010641

main94150-10641

9674219012

main96742-19012

G191732010

mainG1917-32010

39 parts on this diagram · 3 diagrams in section
