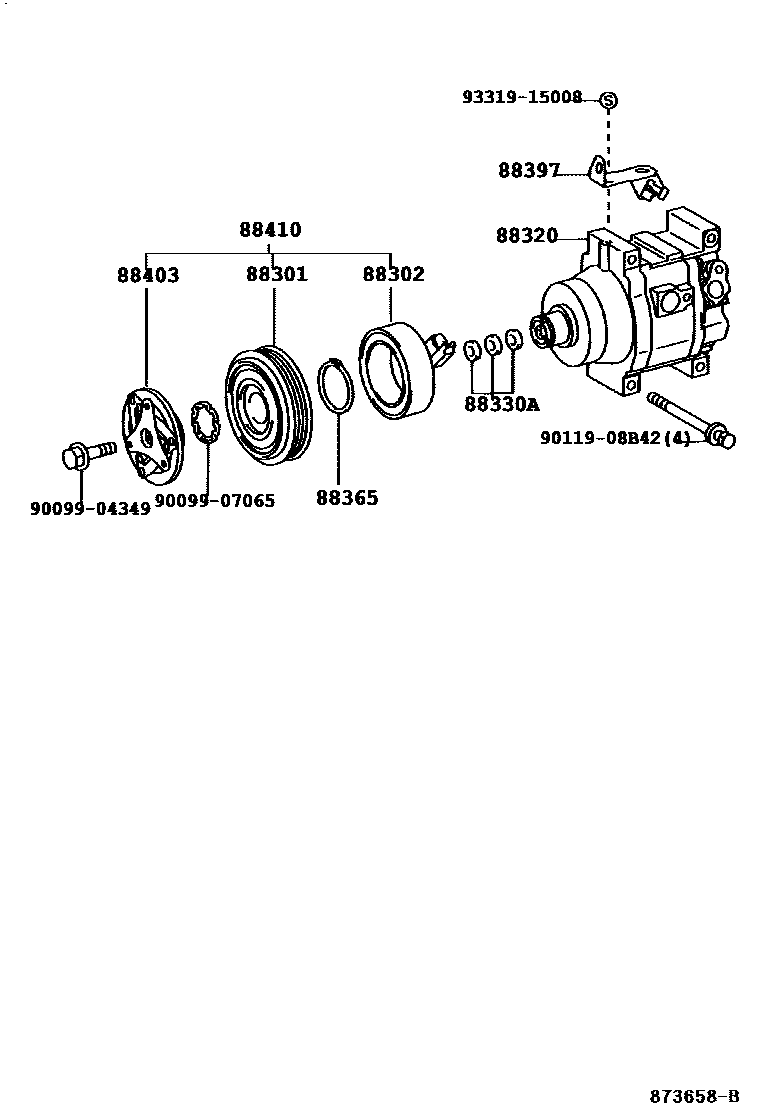

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-1A160iNCP2#200106-200208

main88412-52040iNCP2#199908-200106

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16070iNCP2#199908-200106

main88411-1A050iNCP2#200106-200208

88320COMPRESSOR ASSY, COOLER

main88320-52010iNCP2#200106-200208

main88320-52040iNCP2#199908-200106

main88320-52120iNCP2#200208-200303

main88320-52400iNCP2#200308-200509

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iNCP2#200303-200304

88365RING, SNAP

main88365-87201iNCP2#199908-200208

88397CLIP, SENSOR

main88397-52020iNCP2#199908-200208

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16020iNCP2#199908-200106

main88403-1A020iNCP2#200106-200208

88410CLUTCH ASSY, MAGNET

main88410-1A210iNCP2#200106-200208

main88410-2B260iNCP2#200306-200308

sub88410-2B261

main88410-2B280iNCP2#200308-200509

main88410-52050iNCP2#199908-200106

main88410-52140iNCP2#200208-200306

sub88410-52141

9009904349

main90099-04349

9009907065

main90099-07065

9011908B42

main90119-08B42

9331915008

main93319-15008

12 parts on this diagram · 2 diagrams in section
