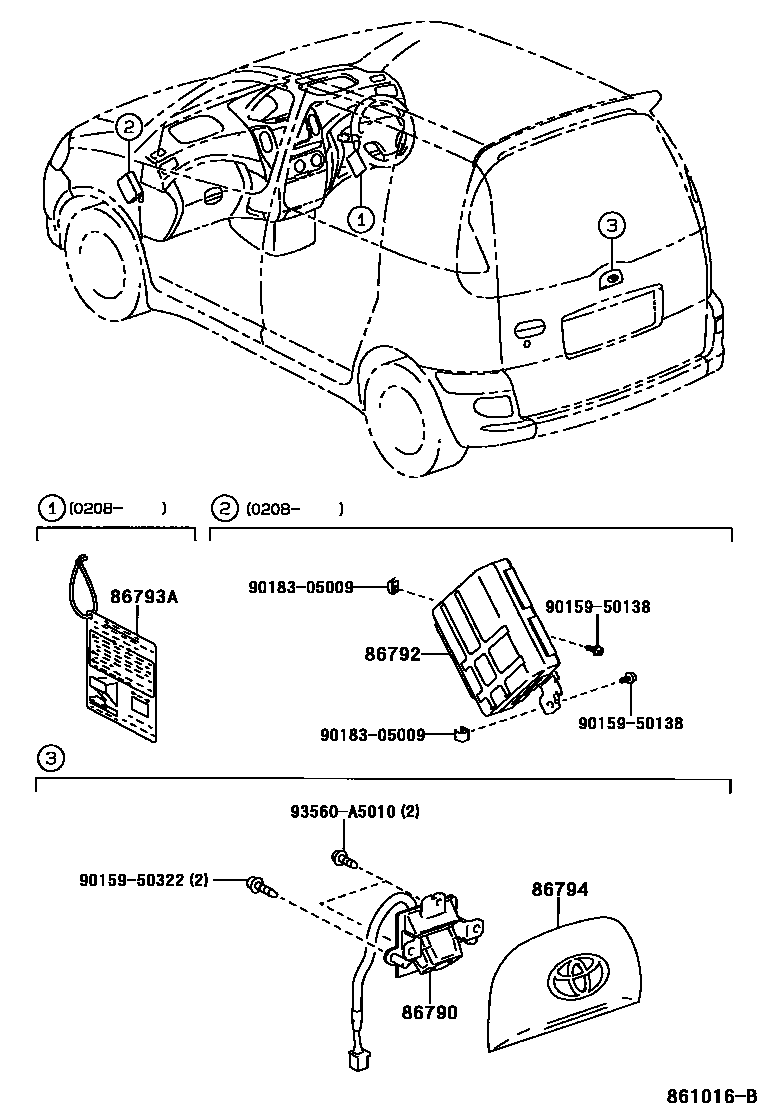

CAMERA & REAR MONITOR DISPLAY

86790CAMERA ASSY, TELEVISION

main86790-52010iNCP2#199908-200108

main86790-52030iNCP20,25..X200208-200308

86792CONTROLLER, TELEVISION CAMERA

main86792-52030iNCP20,25..X200208-200304

main86792-52080iNCP21,25..G200404-200509

86793ALABEL, TELEVISION CAMERA INFORMATION

main86793-52010iNCP21,25..G200208-200509

86794COVER, TELEVISION CAMERA WIRE

main86794-52010-A0iNCP2#199908-200108

SUPER WHITE 2,KD6 ,040

main86794-52010-A1iNCP21,25..G200208-200509

WHITE,068 ,KJ8

main86794-52010-A2iNCP20,25..X200208-200308

WHITE PEARL CS.,064 ,KK2

main86794-52010-B0iNCP2#199908-200208

SILVER ME,KD7 ,199

main86794-52010-B1iNCP20,25..X200109-200208

main86794-52010-B2iNCP21,25..G200208-200509

SILVER M.M.,1E7 ,KK4

main86794-52010-C0iNCP21,25..G200208-200509

BLACK MC.,209 ,KK5

main86794-52010-D0iNCP20,25..X200208-200308

SUPER RED 5,3P0 ,KK6

main86794-52010-F0iNCP2#199908-200208

YELLOW M.M.,KF2 ,584

main86794-52010-F1iNCP20,25..X200208-200308

CHAMPAGNE ME.,583 ,KK7

main86794-52010-G0iNCP20,25..X200208-200308

DK.GREEN MC.,6R4 ,KK8

main86794-52010-G1iNCP2#199908-200208

GREEN PM.,KE7 ,6S2

main86794-52010-H1iNCP20,25..X200208-200308

AQUA M.M.,774 ,KK1

main86794-52010-J0iNCP21,25..G200208-200509

BLUE MC.,8M6 ,KK9

9015950138

main90159-50138

9015950322

main90159-50322

9018305009

main90183-05009

93560A5010

main93560-A5010

8 parts on this diagram · 1 diagram in section
