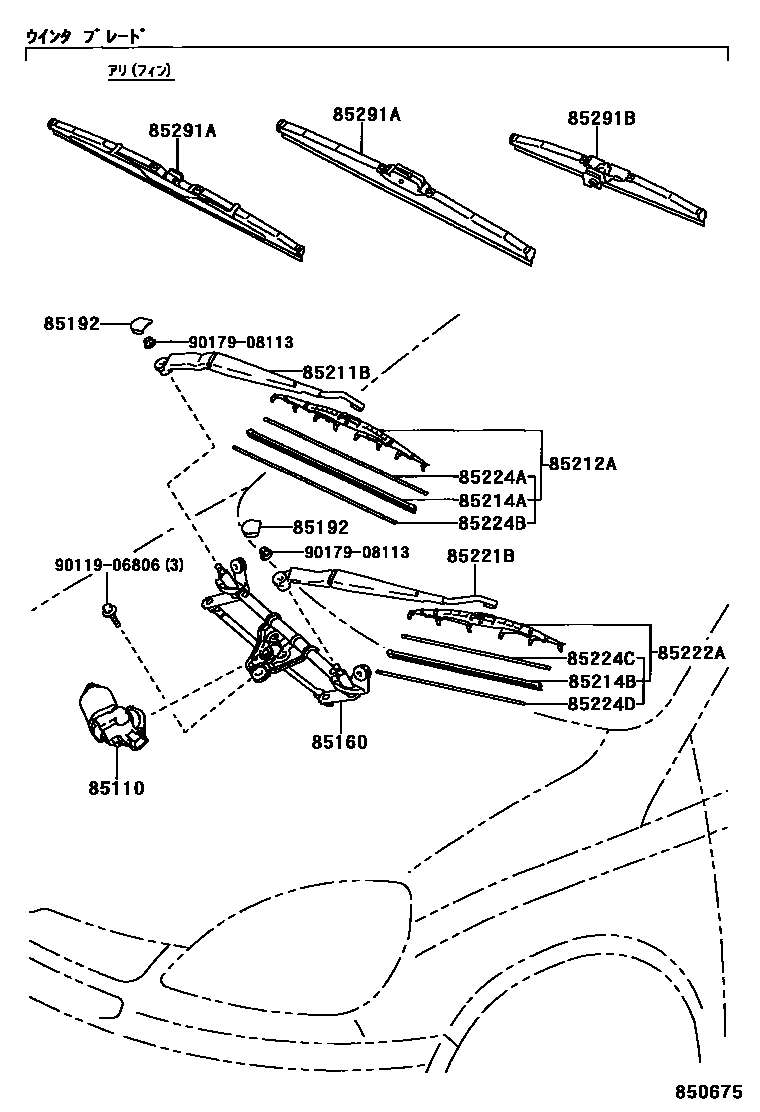

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52070iNCP2#199908-200509

main85110-52100iNCP2#199908-200509

sub85110-52080

85160LINK ASSY, WINDSHIELD WIPER

main85150-52050iNCP2#199908-200509

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iNCP2#199908-200509

85211BARM, FRONT WIPER, RH

main85211-52060iNCP2#199908-200509

85212ABLADE, FR WIPER, RH

main85212-52050iNCP2#199908-200509

sub85212-46010

85214ARUBBER, WIPER, RH

main85214-33110iNCP2#199908-200208

sub85214-22410

main85214-48010iNCP2#200208-200509

85214BRUBBER, WIPER, LH

main85214-44020iNCP2#199908-200208

sub85214-50130

main85214-50060iNCP2#200312-200509

sub85214-50061

main85214-50130iNCP2#200208-200312

sub85214-50060

85221BARM, FRONT WIPER, LH

main85221-52060iNCP2#199908-200509

85222ABLADE, FR WIPER, LH

main85222-52040iNCP2#199908-200312

sub85222-52150

main85222-52150iNCP2#200312-200509

sub85222-52151

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33040iNCP2#199908-200208

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33040iNCP2#199908-200208

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-44020iNCP2#199908-200208

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-44020iNCP2#199908-200208

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22090iNCP2#200208-200509

main85291-22100iNCP2#200208-200509

main85291-33040iNCP2#199908-200208

sub85291-22100

main85291-50030iNCP2#199908-200208

sub85291-22090

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-60070iNCP2#199908-200509

9011906806

main90119-06806

9017908113

main90179-08113

17 parts on this diagram · 2 diagrams in section
