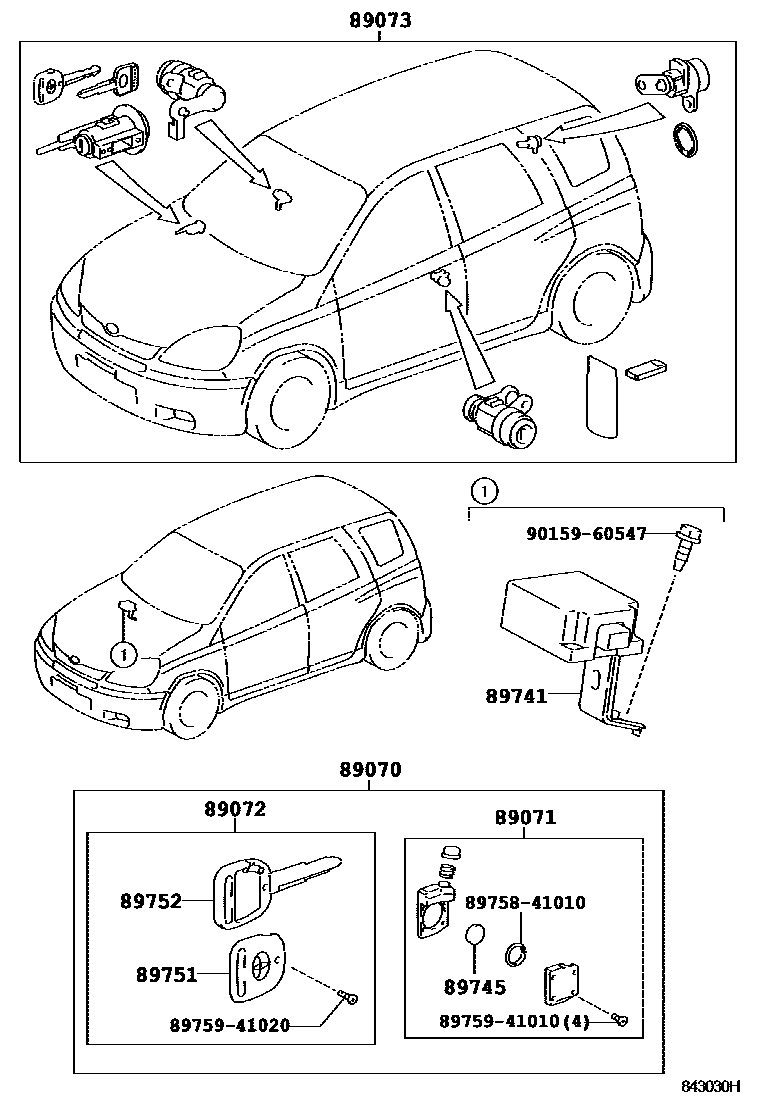

WIRELESS DOOR LOCK

0001 1 0002 1��(��������) 0004 1��(��������)

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-32080×2iNCP20,25..X200306-200403

main89070-52070iNCP2#..G,X199908-200208

main89070-52380iNCP21,25..G200208-200509

sub89071-52060

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-32030iNCP2#200208-200509

main89071-52010iNCP2#..G,X199908-200208

main89071-52080iNCP21,25..G200208-200509

89072HOUSING SET, DOOR CONTROL TRANSMITTER

main89072-47020iNCP2#200208-200509

sub04873-47010

main89072-52070iNCP2#..G,X199908-200208

sub04873-52010

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-52630iNCP2#200208-200509

main69005-52640iNCP21,25..G200208-200509

main69005-5C090iNCP20,25..X200306-200403

main89073-52150iNCP2#..G,X199908-200208

89741RECEIVER, DOOR CONTROL

main89741-52010iNCP2#..G,X199908-200208

main89741-52140iNCP2#200208-200509

89745BATTERY, TRANSMITTER

main89745-41010iNCP2#200208-200509

89751COVER, TRANSMITTER HOUSING

main89751-44010iNCP2#200208-200509

main89751-52060iNCP2#..G,X199908-200208

89752CASE, TRANSMITTER HOUSING

main89752-46020iNCP2#200208-200509

main89752-52240iNCP2#..G,X199908-200208

8975841010PACKING, DOOR CONTROL TRANSMITTER

main89758-41010

8975941010SCREW, DOOR CONTROL TRANSMITTER

main89759-41010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9015960547

main90159-60547

12 parts on this diagram · 3 diagrams in section
