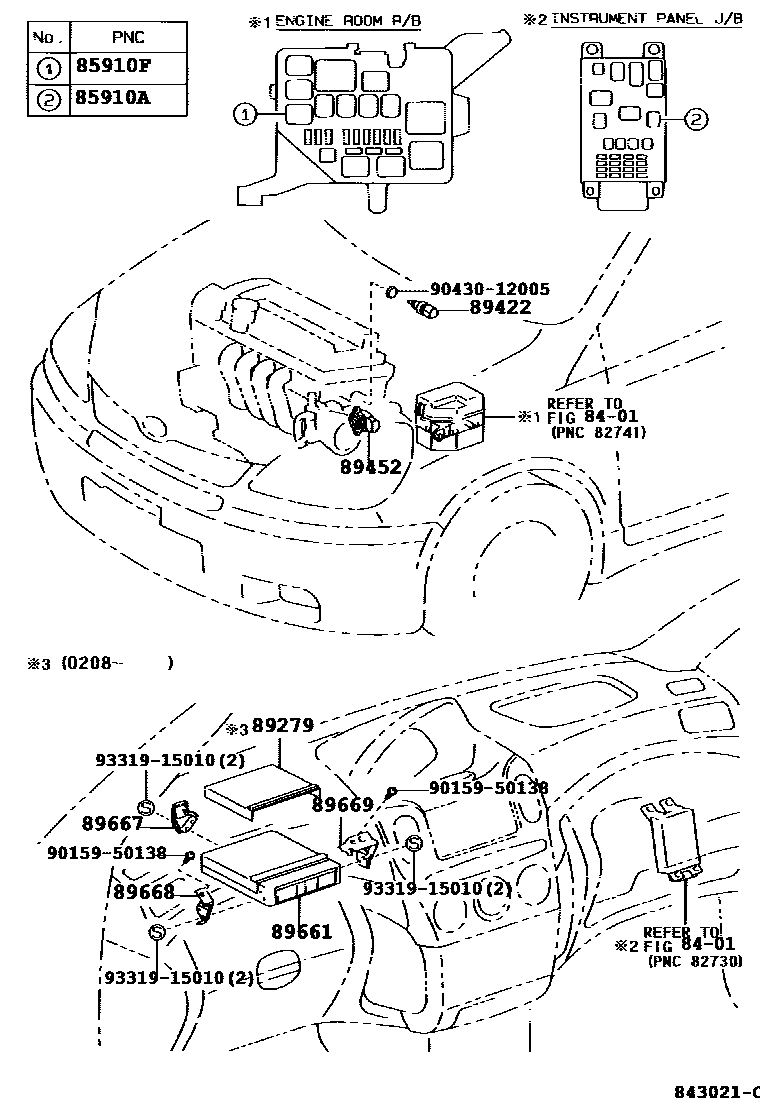

ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iNCP2#199908-200212

main90987-02027iNCP2#200212-200509

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iNCP2#199908-200112

main90987-02022iNCP2#200112-200212

main90987-02027iNCP2#200212-200509

89279COVER, ENGINE CONTROL COMPUTER

main89279-52100iNCP2#200208-200509

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iNCP2#199908-199909

main89422-16010iNCP2#199909-200509

main89422-22030iNCP2#199909-200509

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iNCP2#199908-200208

89661COMPUTER, ENGINE CONTROL

main89661-52360iNCP20199908-200008

main89661-52361iNCP20200008-200208

main89661-52380iNCP25..J,X199908-200008

main89661-52381iNCP25..J,X200008-200208

main89661-52400iNCP21199908-200008

main89661-52401iNCP21200008-200208

main89661-52410iNCP25..G199908-200008

main89661-52411iNCP25..G200008-200208

main89666-52030iNCP21200304-200509

main89666-52110iNCP21200208-200304

sub89666-52030

main89666-52120iNCP25200208-200509

main89666-52130iNCP20200208-200509

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52010iNCP2#199908-200509

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52010iNCP2#199908-200208

main89668-52120iNCP2#200208-200509

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52010iNCP2#199908-200208

main89669-52070iNCP2#200208-200509

9015950138

main90159-50138

9043012005

main90430-12005

9331915010

main93319-15010

13 parts on this diagram · 1 diagram in section
