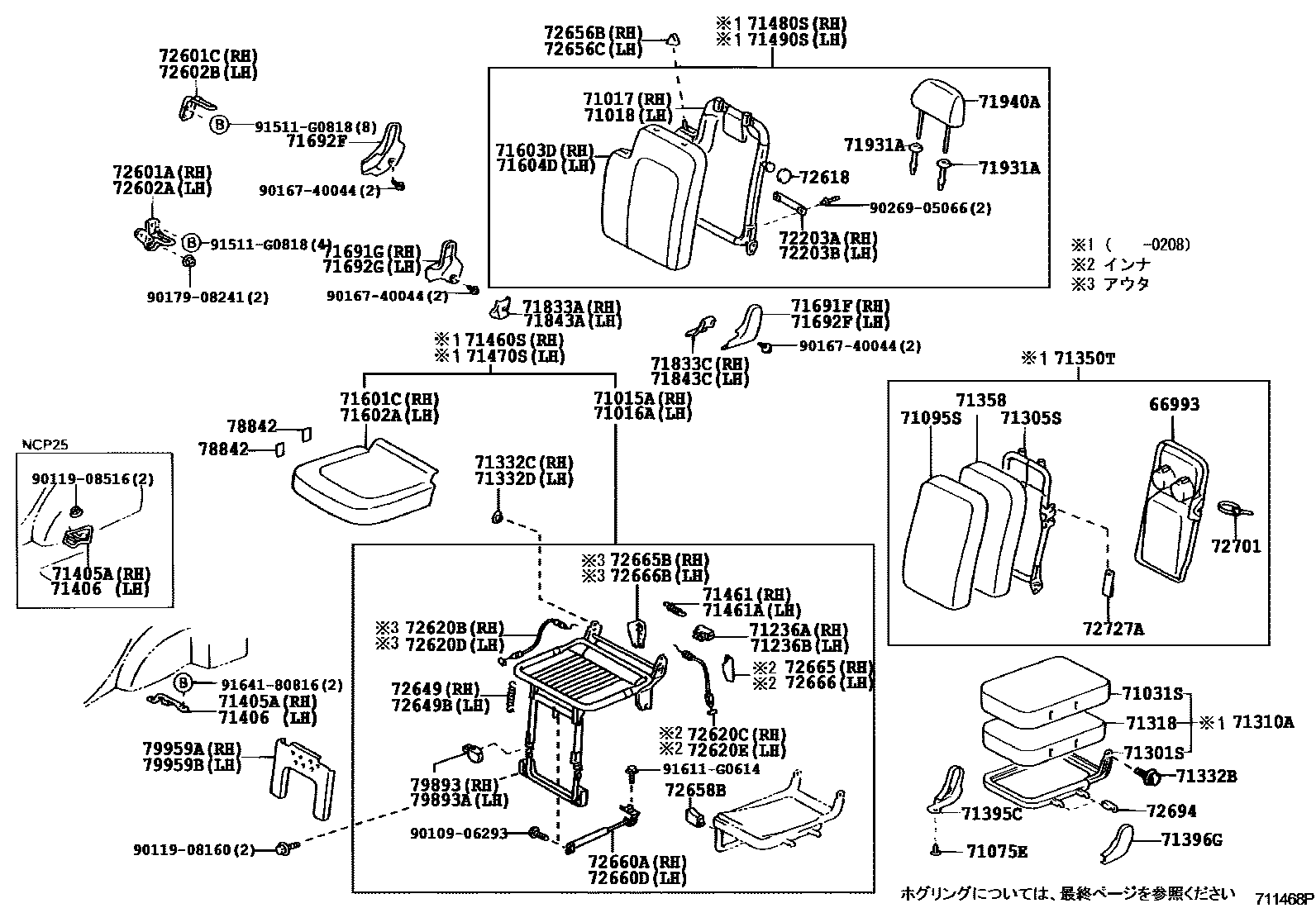

REAR SEAT & SEAT TRACK

0001 1���� �-� 0002 16:4 �����(�����) �-� 0003 16:4 ����� �-� 0004 1 0005 1 0006 1�������

66993TRAY, REAR CENTER SEAT CUP HOLDER

main66993-52010-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

main66993-52010-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

main66993-52010-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH

main71015-52080iNCP20,21199908-200509

main71015-52090iNCP25199908-200509

main71214-52020iNCP25..G,X200208-200509

71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH

main71016-52010iNCP20,21199908-200509

main71016-52020iNCP25199908-200509

main71215-52020iNCP25..G,X200208-200509

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-52130iNCP20,25..J,X199908-200008

main71017-52140iNCP2#..G,X199908-200208

sub71017-52420

main71017-52171iNCP2#..G,X200208-200509

main71017-52420iNCP2#200208-200509

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-52060iNCP20,25..J,X199908-200008

main71018-52070iNCP2#..G,X199908-200208

sub71018-52240

main71018-52101iNCP2#..G,X200208-200509

main71018-52240iNCP2#200208-200509

71031SCOVER SUB-ASSY, CENTER SEAT CUSHION

main71097-52010-B0iNCP20,25..J,X199908-200208

main71097-52010-H0iNCP20,25..J,X199908-200208

main71097-52020-B0iNCP2#199908-200208

main71097-52020-H0iNCP2#199908-200208

main71097-52030-B0iNCP21,25..G199908-200208

main71097-52030-H0iNCP21,25..G199908-200208

main71097-52040-B0iNCP20,25..J,X200208-200509

DARK GRAY,TRIM1#

main71097-52050-B0iNCP21,25..G200208-200509

DARK GRAY,TRIM1#

71075ECLIP(FOR REAR SEAT)

main90467-06085-B2iNCP2#200208-200509

DK.GRAY,TRIM1#

sub90467-06085

main90467-06085-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

sub90467-06085

main90467-06085-P0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

sub90467-06085

71095SCOVER SUB-ASSY, CENTER SEATBACK

main71095-52010-B0iNCP20,25..J,X199908-200208

main71095-52010-H0iNCP20,25..J,X199908-200208

main71095-52020-B0iNCP2#199908-200208

main71095-52020-H0iNCP2#199908-200208

main71095-52030-B0iNCP21,25..G199908-200208

main71095-52030-H0iNCP21,25..G199908-200208

main71095-52060-B0iNCP20,25..J,X200208-200509

DARK GRAY,TRIM1#

main71095-52070-B0iNCP21,25..G200208-200509

DARK GRAY,TRIM1#

71236ACLAMP, REAR SEAT CUSHION SPRING

main71236-52010iNCP2#199908-200509

71236BCLAMP, REAR SEAT CUSHION SPRING

main71236-52010iNCP2#199908-200509

71301SFRAME SUB-ASSY, CENTER SEAT CUSHION

main71031-52010iNCP20,21199908-200509

main71031-52020iNCP25199908-200509

71305SFRAME SUB-ASSY, CENTER SEATBACK

main71305-52020iNCP2#199908-200509

71310ACUSHION ASSY, CENTER SEAT

main71310-52010-B1iNCP20199908-200208

main71310-52010-H1iNCP20199908-200208

main71310-52020-B2iNCP25..J,X199908-200208

main71310-52020-H2iNCP25..J,X199908-200208

main71310-52030-B1iNCP21199908-200208

main71310-52030-H1iNCP21199908-200208

main71310-52040-B1iNCP20,21199908-200208

main71310-52040-H1iNCP20,21199908-200208

main71310-52050-B1iNCP25199908-200208

main71310-52050-H1iNCP25199908-200208

main71310-52060-B1iNCP25..G199908-200208

main71310-52060-H1iNCP25..G199908-200208

71318PAD, CENTER SEAT CUSHION

main71316-52020iNCP2#199908-200509

71332BSPACER, REAR SEATBACK HINGE

main71332-52030iNCP2#199908-200509

71332CSPACER, REAR SEATBACK HINGE

main71332-52010iNCP2#199908-200509

71332DSPACER, REAR SEATBACK HINGE

main71332-52010iNCP2#199908-200509

main71332-52020iNCP2#199908-200509

71350TBACK ASSY, CENTER SEAT

main71350-52010-B2iNCP20,25..J,X199908-200208

sub71350-52010

main71350-52010-H2iNCP20,25..J,X199908-200208

sub71350-52010

main71350-52020-B1iNCP21,25..G199908-200208

main71350-52020-H1iNCP21,25..G199908-200208

main71350-52030-B1iNCP2#199908-200208

sub71350-52030

main71350-52030-H1iNCP2#199908-200208

sub71350-52030

71358PAD, CENTER SEATBACK

main71365-52010iNCP2#199908-200509

71395CCOVER, CENTER SEAT HINGE, RH

main71395-52010-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

main71395-52010-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

main71395-52010-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

71396GCOVER, CENTER SEAT HINGE, LH

main71396-52010-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

main71396-52010-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

main71396-52010-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

71405ASTRIKER SUB-ASSY, REAR SEAT LOCK, RH

main71405-52010iNCP20,21199908-200509

main71405-52020iNCP25199908-200509

71406STRIKER SUB-ASSY, REAR SEAT LOCK, LH

main71406-52010iNCP20,21199908-200509

main71406-52020iNCP25199908-200509

71460SCUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)

main71460-52210-B1iNCP20199908-200208

main71460-52210-H1iNCP20199908-200208

main71460-52220-B2iNCP25..J,X199908-200208

main71460-52220-H2iNCP25..J,X199908-200208

main71460-52250-B1iNCP25199908-200208

main71460-52250-H1iNCP25199908-200208

main71460-52260-B1iNCP25..G199908-200208

main71460-52260-H1iNCP25..G199908-200208

main71460-52270-B1iNCP20,21199908-200208

main71460-52270-H1iNCP20,21199908-200208

main71460-52280-B1iNCP21199908-200208

main71460-52280-H1iNCP21199908-200208

71461SPRING, REAR SEAT CUSHION

main71461-52010iNCP2#199908-200509

71461ASPRING, REAR SEAT CUSHION, NO.1

main71461-52010iNCP2#199908-200509

71470SCUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71470-52010-B1iNCP20199908-200208

main71470-52010-H1iNCP20199908-200208

main71470-52020-B2iNCP25..J,X199908-200208

main71470-52020-H2iNCP25..J,X199908-200208

main71470-52050-B1iNCP25199908-200208

main71470-52050-H1iNCP25199908-200208

main71470-52060-B1iNCP25..G199908-200208

main71470-52060-H1iNCP25..G199908-200208

main71470-52070-B1iNCP20,21199908-200208

main71470-52070-H1iNCP20,21199908-200208

main71470-52080-B1iNCP21199908-200208

main71470-52080-H1iNCP21199908-200208

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-52300-B0iNCP20,25..X200008-200208

main71480-52300-H0iNCP20,25..X200008-200208

main71480-52340-B1iNCP20,25..J,X199908-200008

main71480-52340-H1iNCP20,25..J,X199908-200008

main71480-52350-B2iNCP20,25..X199908-200208

main71480-52350-H2iNCP20,25..J199908-200208

main71480-52360-B1iNCP21,25..G199908-200208

main71480-52360-H2iNCP21,25..G199908-200208

main71480-52370-B1iNCP20,25..J,X199908-200008

main71480-52370-H1iNCP20,25..J,X199908-200008

main71480-52380-B1iNCP20,25..X199908-200208

main71480-52380-H2iNCP20,25..J,X199908-200208

main71480-52390-B1iNCP20,25..X200008-200208

main71480-52390-B1iNCP21,25..G199908-200208

main71480-52390-H1iNCP21,25..G199908-200208

main71480-52390-H1iNCP20,25..X200008-200208

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-52160-B1iNCP20,25..J,X199908-200008

main71490-52160-H1iNCP20,25..J,X199908-200008

main71490-52170-B2iNCP20,25..J199908-200208

main71490-52170-H2iNCP20,25..J,X199908-200208

main71490-52180-B1iNCP20,25..J199908-200208

main71490-52180-H2iNCP20,25..J199908-200208

main71490-52190-B1iNCP21,25..G199908-200208

main71490-52190-H2iNCP21,25..G199908-200208

main71490-52200-B1iNCP20,25..J,X199908-200008

main71490-52200-H1iNCP20,25..J,X199908-200008

main71490-52210-B1iNCP21,25..G199908-200208

main71490-52210-B1iNCP20,25..X200008-200208

main71490-52210-H1iNCP21,25..G199908-200208

main71490-52210-H1iNCP20,25..X200008-200208

main71490-52280-B0iNCP20,25..X200008-200208

main71490-52280-H0iNCP20,25..X200008-200208

71601CPAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH

main71601-52510-B0iNCP20,25..J,X199908-200208

main71601-52510-H0iNCP20,25..J,X199908-200208

main71601-52520-B0iNCP2#199908-200208

main71601-52520-H0iNCP2#199908-200208

main71601-52530-B0iNCP21,25..G199908-200208

main71601-52530-H0iNCP21,25..G199908-200208

main71601-5C460-B0iNCP20..X200208-200509

main71601-5C470-B0iNCP21200208-200509

main71601-5C480-B0iNCP25..X200208-200509

main71601-5C490-B0iNCP25..G200208-200509

main71601-5C500-B0iNCP20,25..J,X200208-200509

DARK GRAY,TRIM1#

main71601-5C510-B0iNCP21,25..G200208-200509

DARK GRAY,TRIM1#

71602APAD SUB-ASSY, REAR SEAT CUSHION W/COVER, LH

main71602-52010-B0iNCP20,25..J,X199908-200208

main71602-52010-H0iNCP20,25..J,X199908-200208

main71602-52020-B0iNCP2#199908-200208

main71602-52020-H0iNCP2#199908-200208

main71602-52030-B0iNCP21,25..G199908-200208

main71602-52030-H0iNCP21,25..G199908-200208

main71602-52040-B0iNCP20,25..J,X200208-200509

DARK GRAY,TRIM1#

main71602-52050-B0iNCP21,25..G200208-200509

DARK GRAY,TRIM1#

71603DPAD SUB-ASSY, REAR SEATBACK W/COVER, RH

main71603-52520-B0iNCP20,25..J,X199908-200008

main71603-52520-H0iNCP20,25..J,X199908-200008

main71603-52530-B0iNCP20,25..J,X199908-200008

main71603-52530-H0iNCP20,25..J,X199908-200008

main71603-52540-B0iNCP21,25..G199908-200208

main71603-52540-H0iNCP21,25..G199908-200208

main71603-52550-B0iNCP21,25..G199908-200208

main71603-52550-B0iNCP20,25..J,X199908-200208

main71603-52550-H0iNCP20,25..X199908-200208

main71603-52550-H0iNCP21,25..G199908-200208

main71603-52560-B0iNCP20,25..J,X199908-200208

main71603-52560-H0iNCP20,25..X199908-200208

main71603-5C830-B0iNCP20,25..J,X200208-200509

DARK GRAY,TRIM1#

main71603-5C840-B0iNCP21,25..G200208-200509

DARK GRAY,TRIM1#

main71603-5C870-B0iNCP20..X200208-200509

main71603-5C880-B0iNCP21200208-200509

main71603-5C890-B0iNCP25..X200208-200509

main71603-5D010-B0iNCP25..G200208-200509

71604DPAD SUB-ASSY, REAR SEATBACK W/COVER, LH

main71604-52210-B0iNCP20,25..J,X199908-200008

main71604-52210-H0iNCP20,25..J,X199908-200008

main71604-52220-B0iNCP20,25..J,X199908-200008

main71604-52220-H0iNCP20,25..J,X199908-200008

main71604-52230-B0iNCP21,25..G199908-200208

main71604-52230-H0iNCP21,25..G199908-200208

main71604-52240-B0iNCP20,25..J,X199908-200208

main71604-52240-B0iNCP21,25..G199908-200208

main71604-52240-H0iNCP20,25..J,X199908-200208

main71604-52240-H0iNCP21,25..G199908-200208

main71604-52250-B0iNCP20,25..X199908-200208

main71604-52250-H0iNCP20,25..X199908-200208

main71604-5C030-B0iNCP20,25..J,X200208-200509

DARK GRAY,TRIM1#

main71604-5C040-B0iNCP21,25..G200208-200509

DARK GRAY,TRIM1#

main71604-5C050-B0iNCP20,25..X200208-200509

main71604-5C060-B0iNCP21,25..G200208-200509

71691FCOVER, REAR NO.1 SEAT CUSHION HINGE, INNER RH

main71691-52020-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

main71691-52020-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

main71691-52020-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

main71691-52040-B0iNCP20,21..G,X200208-200509

71691GCOVER, REAR NO.1 SEAT CUSHION HINGE, OUTER RH

main71691-52010-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

main71691-52010-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

main71691-52010-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

71692FCOVER, REAR NO.1 SEAT CUSHION HINGE, INNER LH

main71692-52020-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

main71692-52020-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

main71692-52020-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

71692GCOVER, REAR NO.1 SEAT CUSHION HINGE, OUTER LH

main71692-52010-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

main71692-52010-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

main71692-52010-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-52010-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

main71833-52010-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

main71833-52010-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

71833CCOVER, REAR SEAT RECLINING, NO.2 RH

main71834-52010-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

main71834-52010-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

main71834-52010-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

71843ACOVER, REAR SEAT RECLINING, NO.2 RH

main71843-52010-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

main71843-52010-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

main71843-52010-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

71843CCOVER, RECLINING ADJUSTER, RH

main71844-52010-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

main71844-52010-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

main71844-52010-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

71931ASUPPORT, REAR SEAT HEADREST

main71930-47010-B2iNCP2#200208-200509

sub71930-47010

sub71930-44020

main71930-52010-B0iNCP2#199908-200208

main71931-47010-B2iNCP2#200208-200509

sub71931-47010

sub71931-42020

main71931-52010-B0iNCP2#199908-200208

71940AHEADREST ASSY, REAR SEAT

main71910-52010-B0iNCP20,25..J,X199908-200208

SHADOW GRAY,TRIM9#

sub71910-52010

main71910-52010-H0iNCP20,25..J,X199908-200208

FRENCH TURQUOISE,TRIM7#

sub71910-52010

main71910-52080-B0iNCP21,25..G199908-200008

main71910-52080-B0iNCP2#..G,X200008-200208

main71910-52080-H0iNCP2#..G,X200008-200208

main71910-52080-H0iNCP21,25..G199908-200008

main71910-52090-B0iNCP21,25..G199908-200208

main71910-52090-H0iNCP21,25..G199908-200208

main71910-52120-B0iNCP20,25..X200008-200208

main71910-52120-H0iNCP20,25..X200008-200208

main71910-52310-B0iNCP20,25..J,X200208-200509

DARK GRAY,TRIM1#

main71910-52320-B0iNCP21,25..G200208-200509

DARK GRAY,TRIM1#

72203AHANDLE SUB-ASSY, REAR SEAT TRACK, RH

main72203-52010-C1iNCP2#200208-200509

BLACK,TRIM1#

main72203-52020-B0iNCP2#199908-200208

SHADOW GRAY,TRIM7#,9#

72203BHANDLE SUB-ASSY, REAR SEAT TRACK, LH

main72203-52010-C1iNCP2#200208-200509

BLACK,TRIM1#

main72203-52020-B0iNCP2#199908-200208

SHADOW GRAY,TRIM7#,9#

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-52020iNCP2#199908-200509

72601CSTRIKER SUB-ASSY, REAR SEATBACK LOCK, NO.2 RH

main72601-52030iNCP2#199908-200509

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72602-52010iNCP2#199908-200509

72602BSTRIKER SUB-ASSY, REAR SEATBACK LOCK, NO.2 LH

main72602-52030iNCP2#199908-200509

72618PROTECTOR, REAR SEATBACK LOCK STRIKER

main72618-52010iNCP2#199908-200509

72620BCABLE ASSY, REAR NO.1 SEAT LOCK

main72620-52010iNCP2#199908-200509

72620CCABLE ASSY, REAR NO.1 SEAT LOCK

main72620-52020iNCP2#199908-200509

72620DCABLE ASSY, REAR NO.1 SEAT LOCK

main72620-52010iNCP2#199908-200509

72620ECABLE ASSY, REAR NO.1 SEAT LOCK

main72620-52020iNCP2#199908-200509

72649SPRING, REAR SEAT CUSHION SUPPORT

main72649-52010iNCP2#199908-200509

72649BSPRING, REAR SEAT CUSHION SUPPORT

main72649-52010iNCP2#199908-200509

72656BBUTTON, REAR SEATBACK STOP RELEASE

main72661-52010-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

main72661-52010-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

main72661-52010-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

72656CBUTTON, REAR SEATBACK STOP RELEASE

main72662-52010-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

main72662-52010-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

main72662-52010-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

72658BKNOB, REAR SEAT LOCK HANDLE

main72658-52010iNCP2#199908-200509

72660ASUPPORT ASSY, REAR SEAT CUSHION

main72660-52010iNCP2#199908-200509

72660DSUPPORT ASSY, REAR SEAT CUSHION

main72660-52020iNCP2#199908-200509

72665COVER, REAR SEATBACK LOCK, RH

main72665-52010iNCP2#199908-200509

72665BCOVER, REAR SEATBACK LOCK

main72665-52020iNCP2#199908-200509

72666COVER, REAR SEATBACK LOCK, LH

main72666-52010iNCP2#199908-200509

72666BCOVER, REAR SEAT LOCK, LH

main72666-52020iNCP2#199908-200509

72694COVER, REAR SEAT CUSHION LOCK

main72694-52010-B0iNCP2#199908-200208

SHADOW GRAY,TRIM7#,9#

main72694-52010-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

72701BRACKET SUB-ASSY, REAR SEATBACK STOPPER

main72687-52010iNCP2#199908-200509

72727AKNOB, REAR SEAT RECLINING CONTROL LEVER

main72727-52010-B0iNCP2#199908-200208

SHADOW GRAY,TRIM7#,9#

main72727-52010-C0iNCP2#200208-200509

BLACK,TRIM1#

78842SUPPORT, CENTER SUB SEAT BRACKET, NO.1

main78842-52010-B0iNCP2#199908-200208

main78842-52010-B1iNCP2#200208-200509

main78842-52010-H0iNCP2#199908-200208

main78842-52020-B0iNCP2#199908-200208

main78842-52020-B1iNCP2#200208-200509

main78842-52020-H0iNCP2#199908-200208

79893CUSHION, FOLD SEAT LEG

main79893-52010iNCP2#199908-200509

79893ACUSHION, FOLD SEAT LEG

main79893-52010iNCP2#199908-200509

79959ACOVER, REAR SEAT LEG, RH

main79937-52010-B0iNCP20,21..G,X200208-200509

main79959-52010-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

main79959-52010-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

main79959-52010-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

79959BCOVER, REAR SEAT LEG, LH

main79959-52020-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

main79959-52020-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

main79959-52020-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

main79959-52030-B0iNCP20,21..G,X200208-200509

9010906293

main90109-06293

9011908160

main90119-08160

9011908516

main90119-08516

9016740044

main90167-40044

9017908241

main90179-08241

9026905066

main90269-05066

91511G0818

main91511-G0818

91611G0614

main91611-G0614

9164180816

main91641-80816

82 parts on this diagram · 6 diagrams in section
