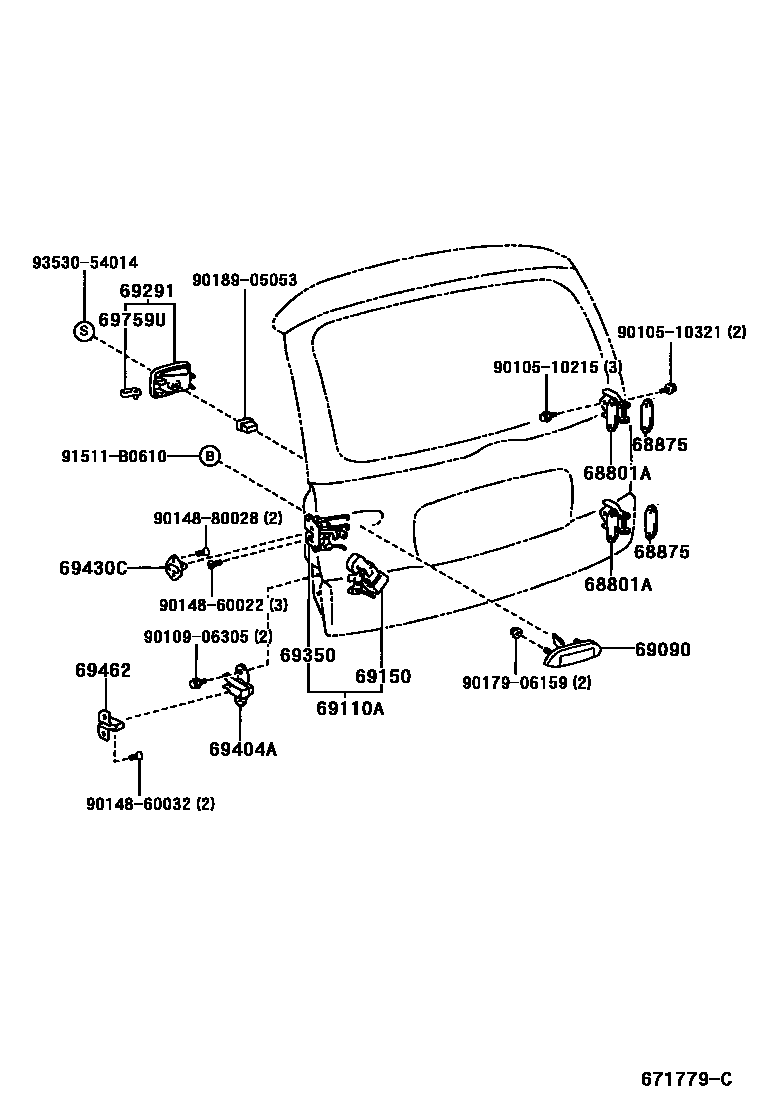

BACK DOOR LOCK & HANDLE
68801AHINGE SUB-ASSY, BACK DOOR, UPPER
68875SPACER, BACK DOOR UPPER HINGE
69150ACTUATOR ASSY, BACK DOOR LOCK
69291HANDLE ASSY, BACK DOOR INSIDE
69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
sub69403-46011
69430CSTRIKER ASSY, BACK DOOR LOCK
69462STOPPER, BACK DOOR SIDE MALE, LH
sub69461-60010
69759USNAP, BACK DOOR LOCK CONTROL LINK
9010510215
main90105-10215
9010510321
main90105-10321
9010906305
main90109-06305
9014860022
main90148-60022
9014860032
main90148-60032
9014880028
main90148-80028
9017906159
main90179-06159
9018905053
main90189-05053
91511B0610
main91511-B0610
9353054014
main93530-54014
21 parts on this diagram · 1 diagram in section
