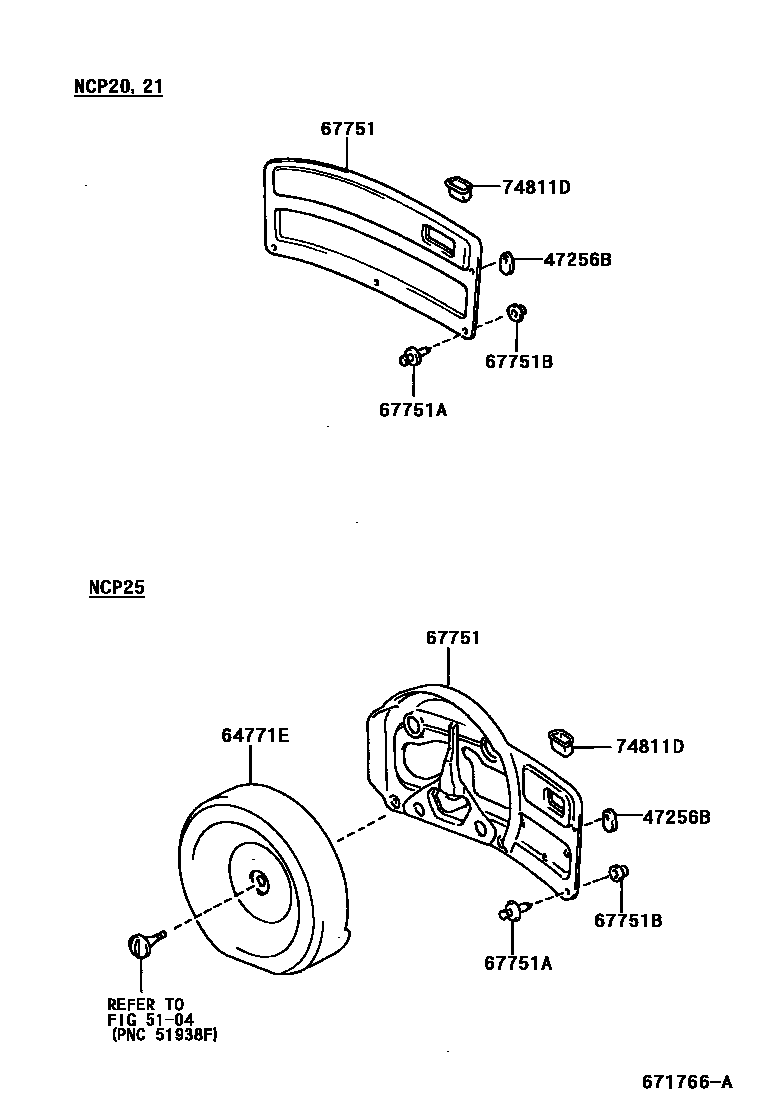

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

47256BGROMMET, CAP

main47256-52020iNCP2#199908-200208

5104

64771ECOVER, SPARE WHEEL

main64771-52060-B0iNCP25199908-200208

MD.GRAY,TRIM9#

main64771-52060-B1iNCP25200208-200509

DK.GRAY,TRIM1#

main64771-52060-G0iNCP25199908-200208

MIST GREEN,TRIM7#

67751BOARD, BACK DOOR TRIM

main67750-52010-B0iNCP20,21199908-200208

main67750-52010-B1iNCP21200208-200509

main67750-52010-G0iNCP20,21199908-200208

main67750-52020-B0iNCP25199908-200208

main67750-52020-B1iNCP25..G200208-200509

main67750-52020-G0iNCP25199908-200208

main67750-52030-B0iNCP20,21199908-200208

MD.GRAY,TRIM9#

main67750-52030-B1iNCP20,21200208-200509

DK.GRAY,TRIM1#

main67750-52030-G0iNCP20,21199908-200208

MIST GREEN,TRIM7#

main67750-52040-B0iNCP25199908-200208

MD.GRAY,TRIM9#

main67750-52040-B1iNCP25200208-200509

DK.GRAY,TRIM1#

main67750-52040-G0iNCP25199908-200208

MIST GREEN,TRIM7#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main67771-52010-B0×4iNCP2#199908-200208

MD.GRAY,TRIM9#

main67771-52010-B1×4iNCP2#200208-200509

DK.GRAY,TRIM1#

main67771-52010-G0×4iNCP2#199908-200208

MIST GREEN,TRIM7#

67751BRETAINER(FOR BACK DOOR TRIM BOARD)

main47256-52010×3iNCP2#200208-200509

74811DHANDLE, DOOR PULL

main74811-13010-B4iNCP2#199908-200208

MD.GRAY,TRIM9#

main74811-13010-B5iNCP2#200208-200509

DK.GRAY,TRIM1#

main74811-13010-G0iNCP2#199908-200208

MIST GREEN,TRIM7#

7 parts on this diagram · 4 diagrams in section
