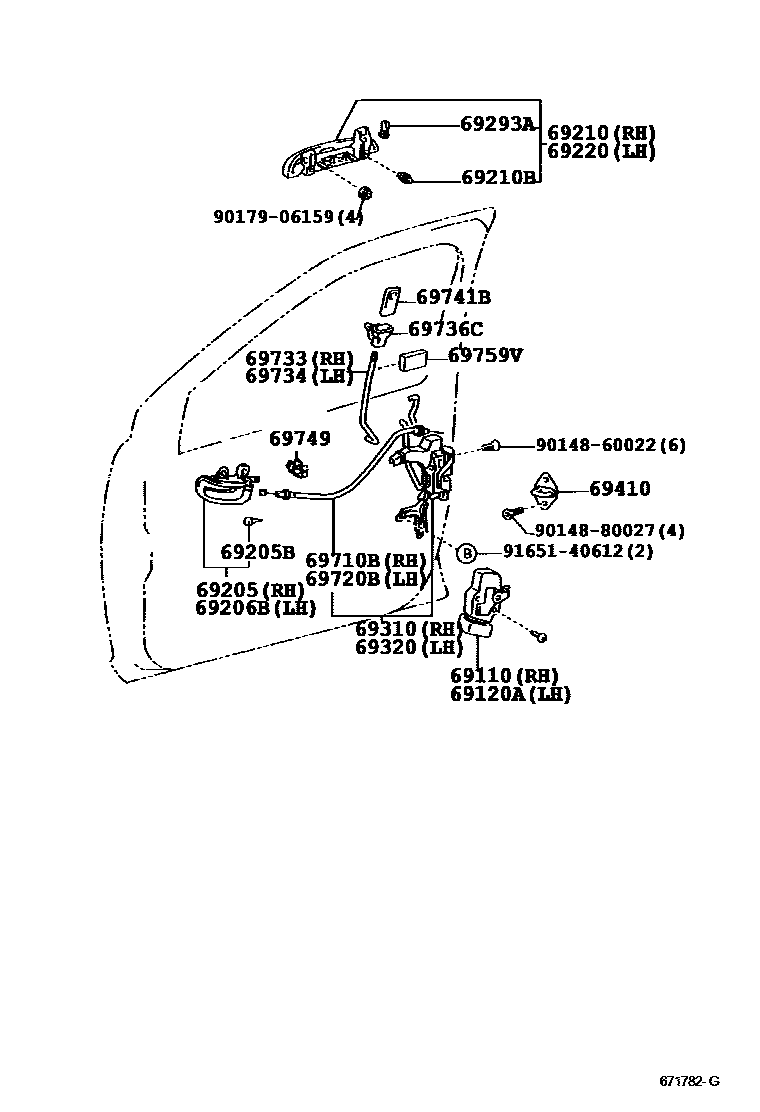

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69733LINK, FRONT DOOR INSIDE LOCKING, RH
69734LINK, FRONT DOOR INSIDE LOCKING, LH
69736CGUIDE, FRONT DOOR LOCKING LINK
69741BKNOB, FRONT DOOR LOCK CONTROL
69749CLAMP, FRONT DOOR LOCK LINK
69759VSILENCER, FRONT DOOR LOCK LINK
9014860022
main90148-60022
9014880027
main90148-80027
9017906159
main90179-06159
9165140612
main91651-40612
24 parts on this diagram · 1 diagram in section
