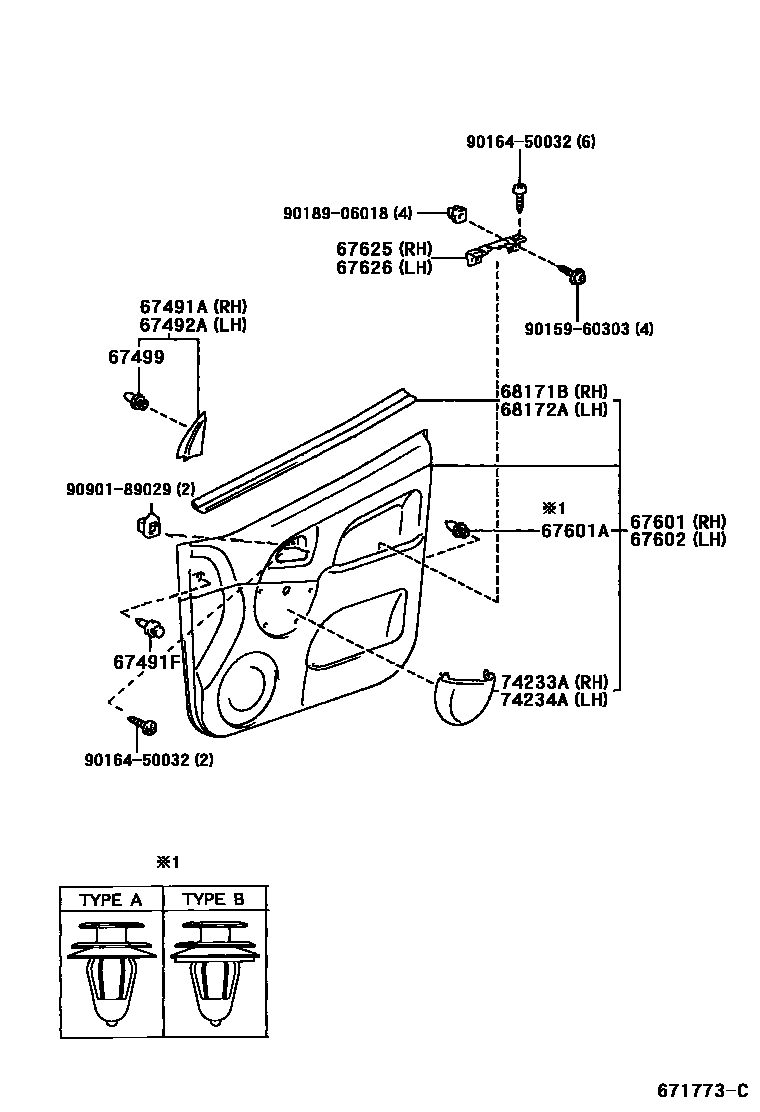

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-52030iNCP2#¥1,040199908-200509

67491FCLIP(FOR DOOR TRIM)

main90467-07190-B0iNCP2#199908-200208

SHADOW GRAY,TRIM9#

sub90467-07190¥220

main90467-07190-B2iNCP2#200208-200509

DK.GRAY,TRIM1#

sub90467-07190¥220

main90467-07190-H0iNCP2#199908-200208

FRENCH TURQUOISE,TRIM7#

sub90467-07190¥220

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-52030iNCP2#¥1,040199908-200509

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-30070iNCP2#¥190199908-200509

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-52520-H0iNCP21,25..G199908-200208

sub67610-52800¥27,300

main67610-52520-K0iNCP21,25..G199908-200208

sub67610-52800¥27,300

main67610-52550-H0iNCP2#..G,X199908-200208

sub67650-52060¥26,400

main67610-52550-K0iNCP2#..G,X199908-200208

sub67650-52060¥26,400

main67610-52560-H0iNCP20,25..X199908-200208

main67610-52560-K0iNCP20,25..X199908-200208

main67610-52810-B0iNCP20,25..J200208-200509

sub67610-52670¥20,300

main67610-52810-B1iNCP20,25..J200208-200509

sub67610-52670¥20,300

main67610-52810-H0iNCP20,25..J199908-200208

sub67610-52670¥20,300

main67610-52810-K0iNCP20,25..J199908-200208

sub67610-52670¥20,300

main67610-5C140-B0iNCP21,25..G200208-200509

main67610-5C160-B0iNCP20,25..X200208-200509

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050iNCP2#¥160199908-199911

main67771-12050iNCP2#¥160199911-200208

main67771-12050iNCP2#¥160200208-200509

main67771-28020iNCP2#¥220200208-200509

main67771-28020iNCP2#¥220199911-200208

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-52520-H0iNCP21,25..G199908-200208

sub67620-52790¥27,300

main67620-52520-K0iNCP21,25..G199908-200208

sub67620-52790¥27,300

main67620-52560-H0iNCP2#..G,X199908-200208

sub67660-52060¥26,400

main67620-52560-K0iNCP2#..G,X199908-200208

sub67660-52060¥26,400

main67620-52570-H0iNCP20,25..X199908-200208

main67620-52570-K0iNCP20,25..X199908-200208

main67620-52800-B0iNCP20,25..J200208-200509

sub67620-52670¥20,300

main67620-52800-B1iNCP20,25..J200208-200509

sub67620-52670¥20,300

main67620-52800-H0iNCP20,25..J199908-200208

sub67620-52670¥20,300

main67620-52800-K0iNCP20,25..J199908-200208

sub67620-52670¥20,300

main67620-5C150-B0iNCP21,25..G200208-200509

main67620-5C170-B0iNCP20,25..X200208-200509

67625BRACKET, FRONT DOOR TRIM, RH

main67625-52020iNCP2#¥680199908-200509

67626BRACKET, FRONT DOOR TRIM, LH

main67625-52020iNCP2#¥680199908-200509

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-52050iNCP2#¥2,070199908-200509

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-52030iNCP2#¥2,070199908-200509

74233APANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74233-52010-B0iNCP2#199908-200208

MD.GRAY,TRIM9#

sub74233-52010¥2,120

main74233-52010-B1iNCP20,25..J,X200208-200509

DK.GRAY,TRIM1#

sub74233-52010¥2,120

main74233-52010-G0iNCP2#199908-200208

MIST GREEN,TRIM7#

sub74233-52010¥2,120

main74233-52020-B0iNCP21,25..G200208-200509

DK.GRAY,TRIM1#

74234APANEL, FRONT DOOR ARMREST BASE, LOWER LH

main74234-52010-B0iNCP2#199908-200208

MD.GRAY,TRIM9#

sub74234-52010¥2,120

main74234-52010-B1iNCP20,25..J,X200208-200509

DK.GRAY,TRIM1#

sub74234-52010¥2,120

main74234-52010-G0iNCP2#199908-200208

MIST GREEN,TRIM7#

sub74234-52010¥2,120

main74234-52020-B0iNCP21,25..G200208-200509

DK.GRAY,TRIM1#

9015960303

main90159-60303¥70

9016450032

main90164-50032¥90

9018906018

main90189-06018¥80

9090189029

main90901-89029¥120

17 parts on this diagram · 4 diagrams in section
