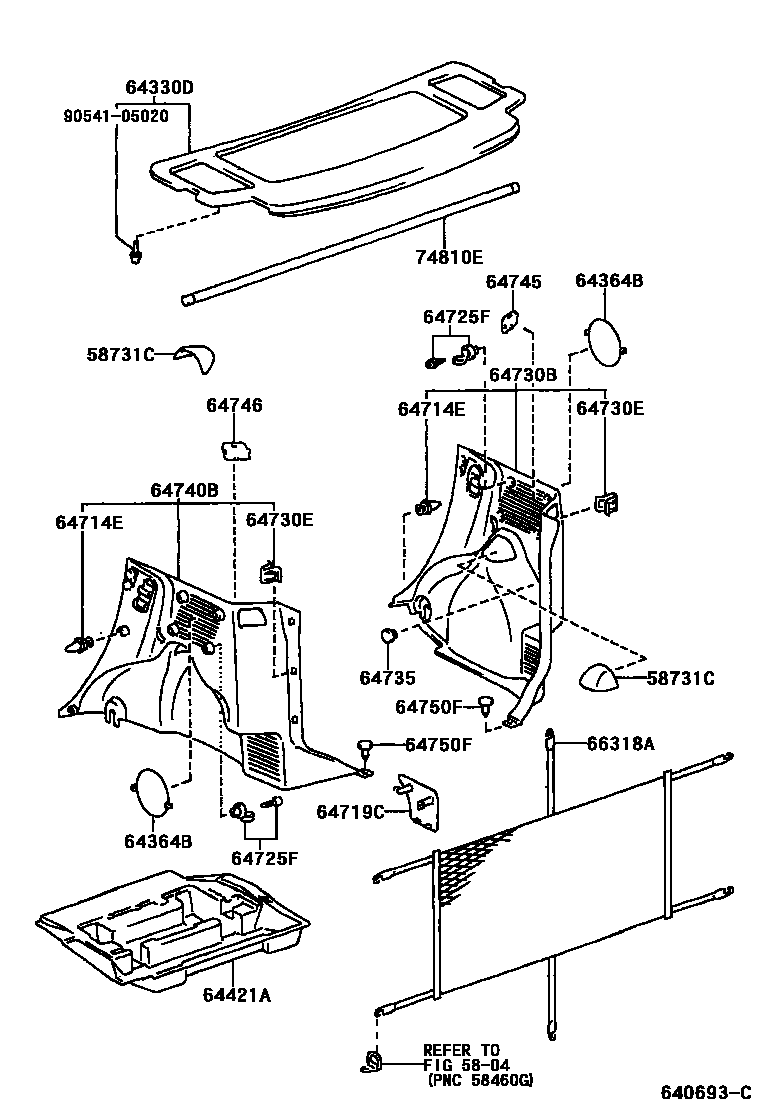

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

5804

58731CCAP, REAR ABSORBER

main58731-52030-B0iNCP25199908-200208

MD.GRAY,TRIM9#

sub58731-52030

main58731-52030-B1iNCP25200208-200509

DK.GRAY,TRIM1#

sub58731-52030

main58731-52030-G0iNCP25199908-200208

MIST GREEN,TRIM7#

sub58731-52030

main58731-52040-B0iNCP20,21199908-200208

MD.GRAY,TRIM9#

sub58731-52040

main58731-52040-B1iNCP20,21200208-200509

DK.GRAY,TRIM1#

sub58731-52040

main58731-52040-G0iNCP20,21199908-200208

MIST GREEN,TRIM7#

sub58731-52040

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-52020-B1iNCP25199908-200112

MEDIUM GRAY,TRIM9#

sub64330-52021

main64330-52020-G1iNCP25199908-200112

MIST GREEN,TRIM7#

sub64330-52021

main64330-52021-B1iNCP25200112-200205

MEDIUM GRAY,TRIM9#

main64330-52021-G1iNCP25200112-200205

MIST GREEN,TRIM7#

main64330-52022-B1iNCP25200205-200208

MEDIUM GRAY,TRIM9#

main64330-52022-B2iNCP25200208-200211

DARK GRAY,TRIM1#

main64330-52022-G1iNCP25200205-200208

MIST GREEN,TRIM7#

main64330-52030-B1iNCP20,21199908-200112

MEDIUM GRAY,TRIM9#

sub64330-52031

main64330-52030-G1iNCP20,21199908-200112

MIST GREEN,TRIM7#

sub64330-52031

main64330-52031-B1iNCP20,21200112-200205

MEDIUM GRAY,TRIM9#

main64330-52031-G1iNCP20,21200112-200205

MIST GREEN,TRIM7#

main64330-52200-B1iNCP20,21200205-200208

DARK GRAY,TRIM7#,9#

main64330-52200-B1iNCP20,21200208-200211

DARK GRAY,TRIM1#

main64330-52220-B0iNCP20,21200211-200509

DARK GRAY,TRIM1#

main64330-52230-B0iNCP25200211-200509

DARK GRAY,TRIM1#

64364BCOVER, REAR SPEAKER GRILLE, NO.1

main64364-52010iNCP20,25..J,X199908-200509

64421ATRAY, LUGGAGE COMPARTMENT

main64421-52010iNCP25199908-200002

sub64421-52011

main64421-52011iNCP25200002-200509

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-10161iNCP2#199908-200509

64719CCOVER, DECK TRIM POCKET

main64974-52010-B0iNCP20,21199908-200208

MD.GRAY,TRIM9#

sub64974-52010

main64974-52010-B1iNCP21200208-200509

DK.GRAY,TRIM1#

sub64974-52010

main64974-52010-G0iNCP20,21199908-200208

MIST GREEN,TRIM7#

sub64974-52010

main64974-52020-B0iNCP25199908-200208

MD.GRAY,TRIM9#

main64974-52020-B1iNCP25..G200208-200509

DK.GRAY,TRIM1#

main64974-52020-G0iNCP25199908-200208

MIST GREEN,TRIM7#

64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-52010-B0iNCP2#199908-200208

MD.GRAY,TRIM9#

sub64725-52010

main64725-52010-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

sub64725-52010

main64725-52010-G0iNCP2#199908-200208

MIST GREEN,TRIM7#

sub64725-52010

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52110-B0iNCP25199908-200208

MD.GRAY,TRIM9#

main64730-52110-B1iNCP25200208-200509

DK.GRAY,TRIM1#

main64730-52110-G0iNCP25199908-200208

MIST GREEN,TRIM7#

main64730-52120-B0iNCP20,21199908-200208

MD.GRAY,TRIM9#

main64730-52120-B1iNCP20,21200208-200509

DK.GRAY,TRIM1#

main64730-52120-G0iNCP20,21199908-200208

MIST GREEN,TRIM7#

main64730-52130-B1iNCP20,21..G,X200208-200509

main64730-52230-B0iNCP25..G,X200208-200509

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90468-05084iNCP2#199908-200509

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-13050-B1iNCP20,21;NCP25..J,X199908-200208

MD.GRAY,TRIM9#

sub64735-13050

main64735-13050-B2iNCP20,21;NCP25..J,X200208-200509

DK.GRAY,TRIM1#

sub64735-13050

main64735-13050-G0iNCP20,21;NCP25..J,X199908-200208

MIST GREEN,TRIM7#

sub64735-13050

64740BBOARD, DECK TRIM SIDE, LH

main64740-52110-B0iNCP25199908-200208

MD.GRAY,TRIM9#

main64740-52110-B1iNCP25200208-200509

DK.GRAY,TRIM1#

main64740-52110-G0iNCP25199908-200208

MIST GREEN,TRIM7#

main64740-52120-B0iNCP20,21199908-200208

MD.GRAY,TRIM9#

main64740-52120-B1iNCP20,21200208-200509

DK.GRAY,TRIM1#

main64740-52120-G0iNCP20,21199908-200208

MIST GREEN,TRIM7#

main64740-52130-B1iNCP20,21..G,X200208-200509

main64740-52320-B0iNCP25..G,X200208-200509

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-52020-B0iNCP2#199908-200208

MD.GRAY,TRIM9#

sub64745-52020

main64745-52020-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

sub64745-52020

main64745-52020-G0iNCP2#199908-200208

MIST GREEN,TRIM7#

sub64745-52020

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-52020-B0iNCP2#199908-200208

MD.GRAY,TRIM9#

sub64746-52020

main64746-52020-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

sub64746-52020

main64746-52020-G0iNCP2#199908-200208

MIST GREEN,TRIM7#

sub64746-52020

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-06017-B6iNCP2#199908-200208

MD.GRAY,TRIM7#,9#

sub90467-06017

main90467-06017-B7iNCP2#200208-200509

DK.GRAY,TRIM1#

sub90467-06017

66318ABAND, ROPE HOOK

main66318-52010-C0iNCP2#200208-200509

BLACK,TRIM1#

main66318-52010-C0iNCP2#199908-200208

BLACK,TRIM7#,9#

74810EBAR ASSY, SEPARATOR

main74810-52010-B0iNCP2#199908-200208

MD.GRAY,TRIM7#,9#

sub74810-52010

main74810-52010-B1iNCP2#200208-200509

DK.GRAY,TRIM1#

sub74810-52010

9054105020

main90541-05020

18 parts on this diagram · 2 diagrams in section
