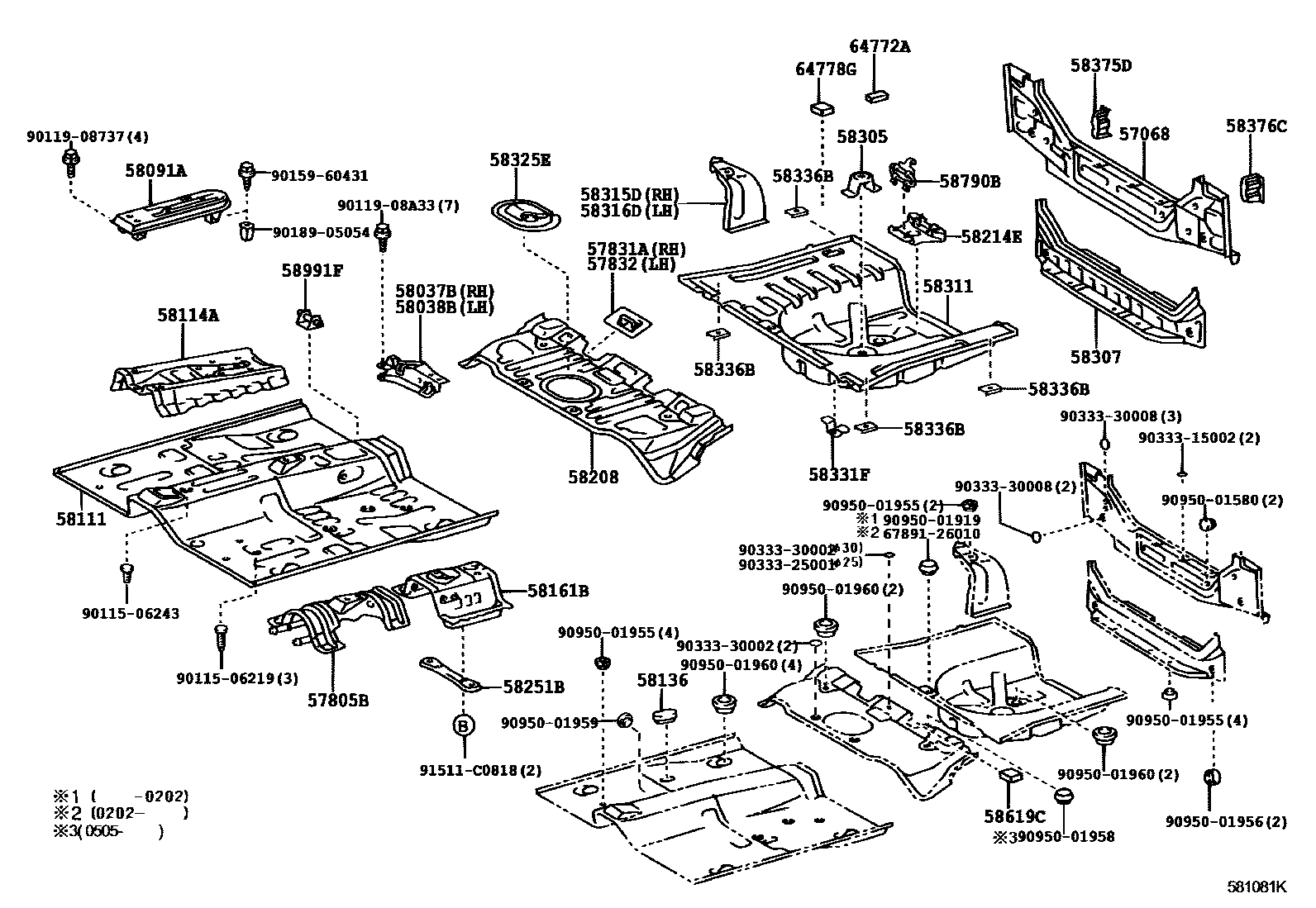

FLOOR PAN & LOWER BACK PANEL
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
58037BREINFORCE, CENTER PILLAR TO FLOOR, RH
58038BREINFORCE, CENTER PILLAR TO FLOOR, LH
58091AREINFORCEMENT SET, BODY FITTING
58136COVER, FRONT FLOOR HOLE
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58208PAN, CENTER FLOOR
58214EBRACKET, JACK SUPPORT
58251BBRACE, FLOOR PANEL, FRONT
58307PANEL SUB-ASSY, BODY LOWER BACK
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58336BREINFORCEMENT, REAR FLOOR PAN
58375DREINFORCEMENT, BODY LOWER BACK PANEL, RH
58376CBRACKET, LOWER BACK PANEL WEIGHT
58619CSHEET, CENTER FLOOR SILENCER SUB
58790BCARRIER ASSY, JACK
58991FBRACKET, CONSOLE BOX MOUNTING, FRONT
64772APAD, SPARE WHEEL COVER
64778GPROTECTOR, SPARE WHEEL
6789126010WEATHERSTRIP, REAR DOOR PANEL
main67891-26010
9011506219
main90115-06219
9011506243
main90115-06243
9011908737
main90119-08737
9011908A33
main90119-08A33
9015960431
main90159-60431
9018905054
main90189-05054
9033315002
main90333-15002
9033325001
main90333-25001
9033330002
main90333-30002
9033330008
main90333-30008
9095001580
main90950-01580
9095001919
main90950-01919
9095001955
main90950-01955
9095001956
main90950-01956
9095001958
main90950-01958
9095001959
main90950-01959
9095001960
main90950-01960
91511C0818
main91511-C0818
48 parts on this diagram · 2 diagrams in section
