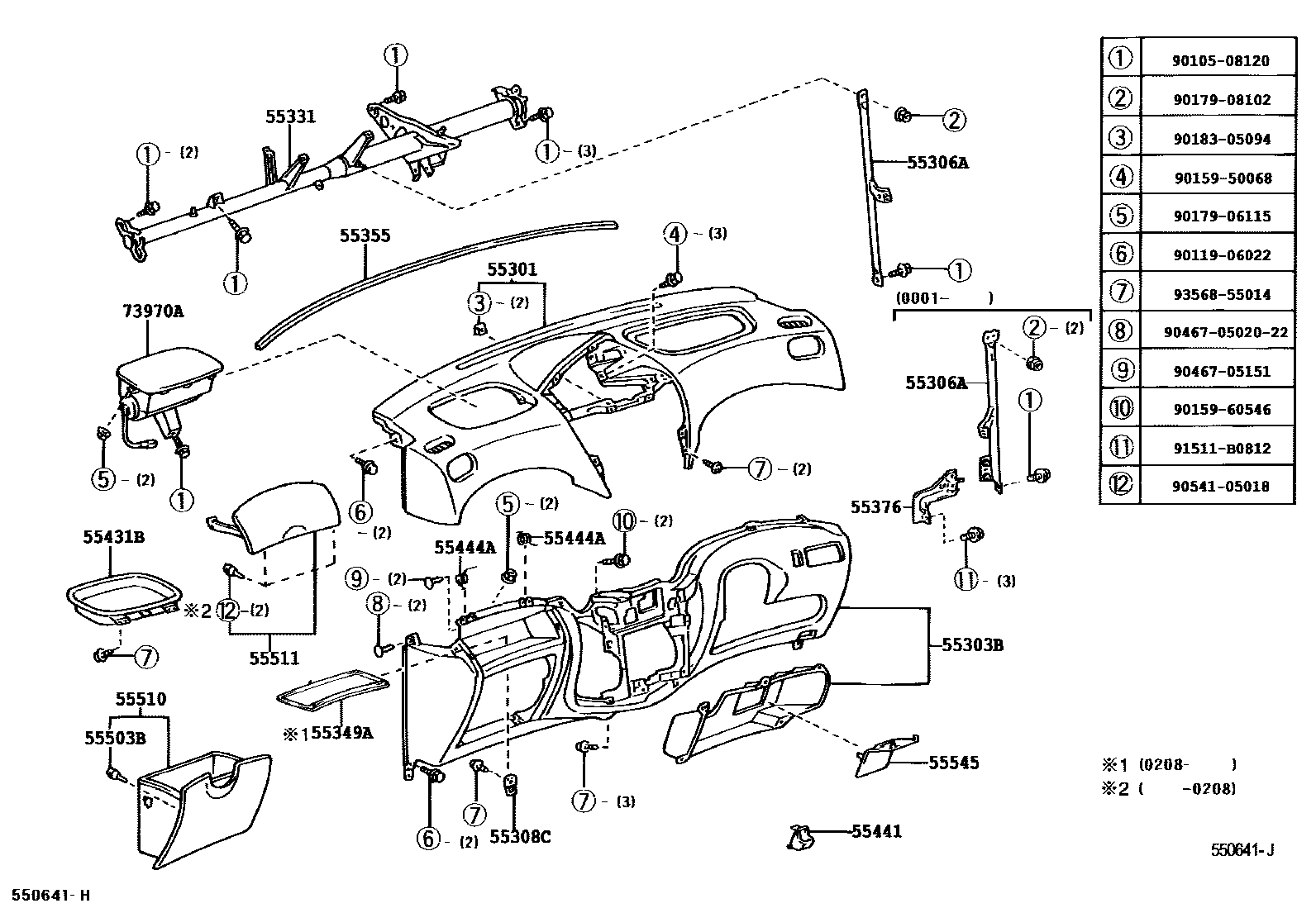

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
SHADOW GRAY,TRIM9#
FRENCH TURQUOISE,TRIM7#
DK.GRAY,TRIM1#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
SHADOW GRAY,TRIM9#
DK. GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55331REINFORCEMENT, INSTRUMENT PANEL
55349ACUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55431BPANEL, INSTRUMENT PANEL FINISH, UPPER
SHADOW GRAY,TRIM9#
FRENCH TURQUOISE,TRIM7#
55441BOX, INSTRUMENT PANEL
MD.GRAY,TRIM9#
DK.GRAY,TRIM1#
MIST GREEN,TRIM7#
55444ASPRING, INSTRUMENT PANEL BOX
55503BCUSHION(FOR GLOVE COMPARTMENT)
55510DOOR ASSY, GLOVE COMPARTMENT
MD.GRAY,TRIM9#
DK.GRAY,TRIM1#
MIST GREEN,TRIM7#
55511DOOR, GLOVE COMPARTMENT
MD.GRAY,TRIM9#
MIST GREEN,TRIM7#
DK.GRAY,TRIM1#
55545COVER, FUSE BOX OPENING
MD.GRAY,TRIM9#
DK.GRAY,TRIM1#
MIST GREEN,TRIM7#
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
SHADOW GRAY,TRIM9#
FRENCH TURQUOISE,TRIM7#
DK.GRAY,TRIM1#
9010508120
main90105-08120
9011906022
main90119-06022
9015950068
main90159-50068
9015960546
main90159-60546
9017906115
main90179-06115
9017908102
main90179-08102
9018305094
main90183-05094
904670502022
main90467-0502022
9046705151
main90467-05151
9054105018
main90541-05018
91511B0812
main91511-B0812
9356855014
main93568-55014
28 parts on this diagram · 7 diagrams in section
