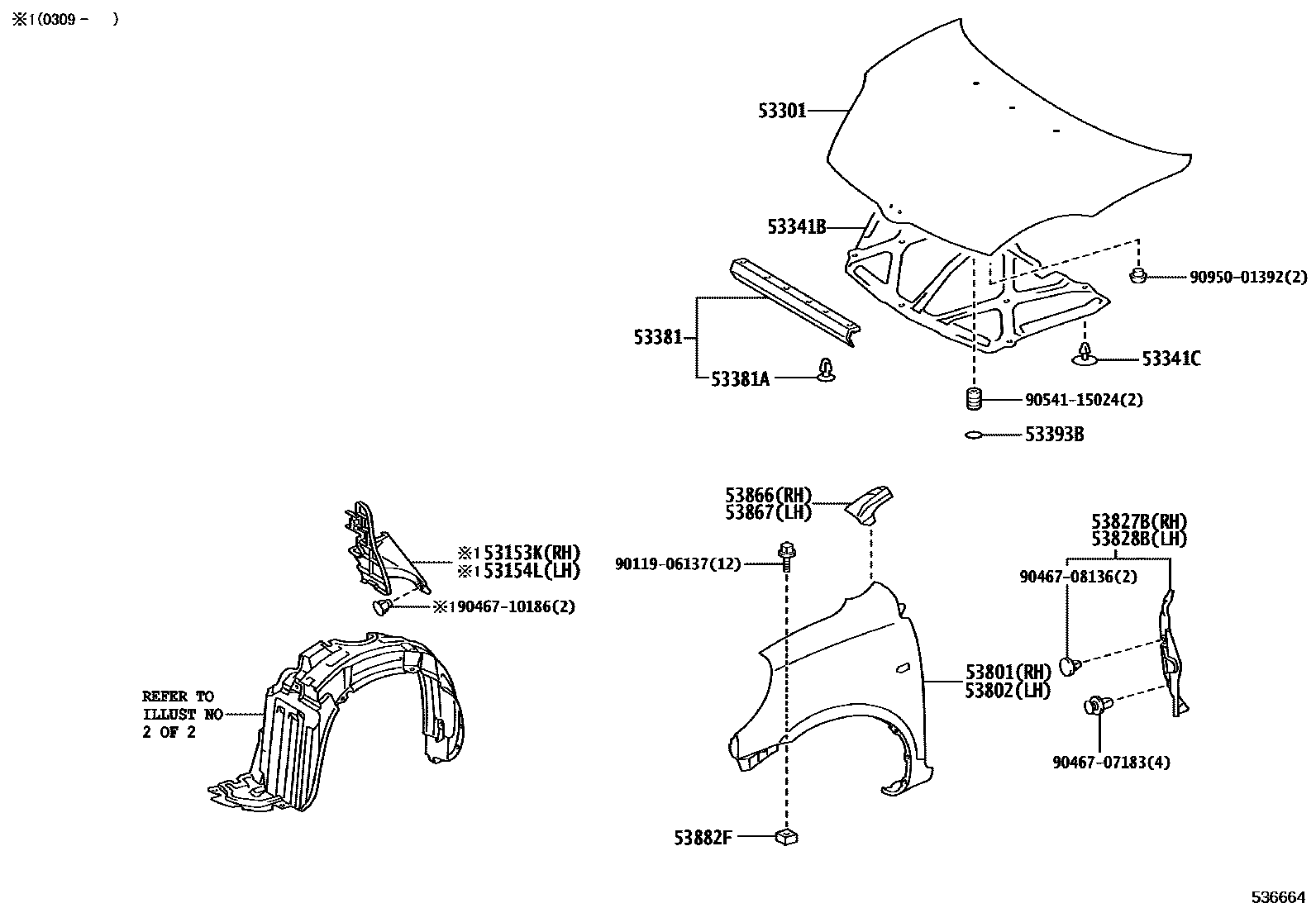

HOOD & FRONT FENDER

0001 1 0002 1��������

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-52020iNCP2#¥2,910200309-200509

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-52020iNCP2#¥2,910200309-200509

53301HOOD SUB-ASSY

main53301-52030iNCP2#¥32,700199908-200509

53341BINSULATOR, HOOD

main53341-52020iNCP21,25¥10,700199908-200509

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124iNCP21,25¥260199911-200206

main90467-09050iNCP21,25¥120199908-200509

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-52010iNCP2#¥1,130199908-200509

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iNCP2#¥100199908-200509

53393BPROTECTOR, HOOD, FRONT

main53393-52010iNCP2#¥390199908-200509

53801FENDER SUB-ASSY, FRONT RH

main53811-52020iNCP2#¥31,800199908-200509

main53811-52030iNCP2#..G,X¥31,800199908-200509

53802FENDER SUB-ASSY, FRONT LH

main53812-52020iNCP2#¥31,800199908-200509

main53812-52030iNCP2#¥31,800199908-200509

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-52020iNCP2#¥2,620199908-200011

sub53827-52021¥2,620

main53827-52021iNCP2#¥2,620200011-200509

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52020iNCP2#¥2,620199908-200011

sub53828-52021¥2,620

main53828-52021iNCP2#¥2,620200011-200509

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52020iNCP2#¥300199908-200509

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52020iNCP2#¥300199908-200509

53882FSEAL, FRONT FENDER

main53882-16030iNCP2#¥60199908-200509

9011906137

main90119-06137¥70

9046707183

main90467-07183¥120

9046708136

main90467-08136¥90

9046710186

main90467-10186¥120

9054115024

main90541-15024¥200

9095001392

main90950-01392¥100

21 parts on this diagram · 2 diagrams in section
