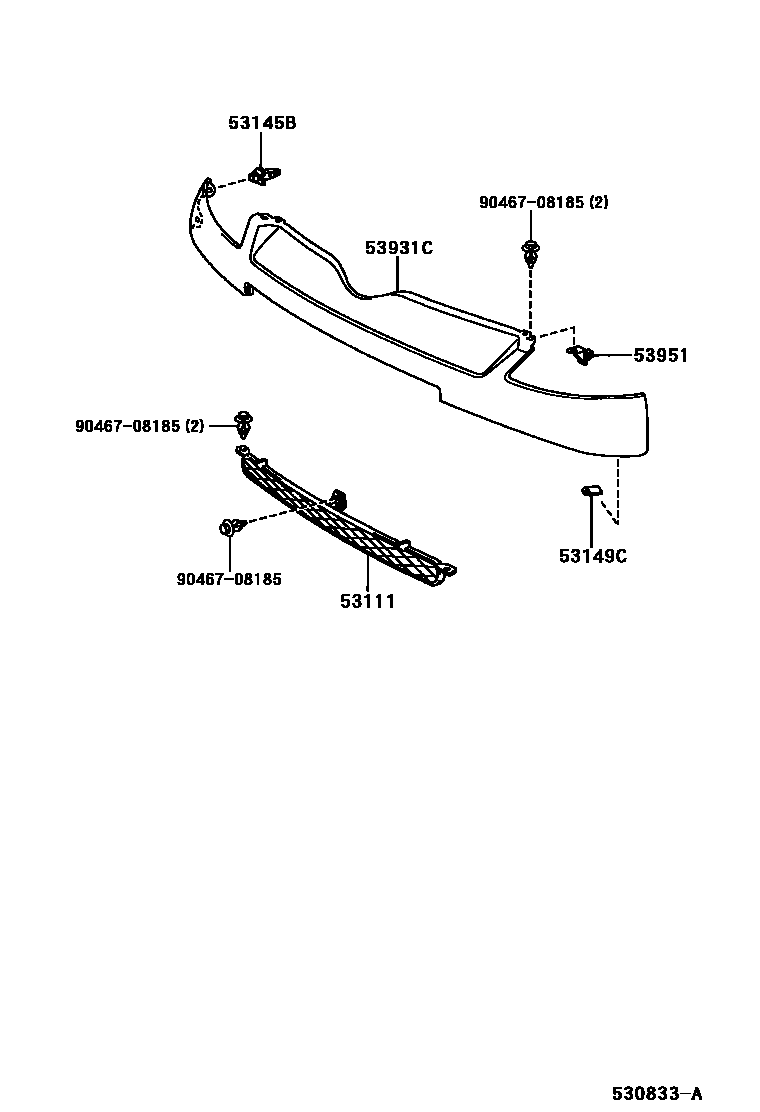

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53111-52040iNCP2#199908-200208

main53111-52240iNCP2#200208-200509

main53111-52250iNCP2#..G,X200208-200509

sub53111-52240

53145BCLIP, RADIATOR GRILLE GARNISH

main53145-52010iNCP2#199908-200509

53149CPROTECTOR, RADIATOR GRILLE, NO.2

main53149-52010iNCP2#199908-200509

53931CPANEL, FRONT END

main53931-52010iNCP2#199908-200208

main53931-52040iNCP2#200208-200509

53951SUPPORT, FRONT END PANEL, UPPER

main53951-52010iNCP2#199908-200208

9046708185

main90467-08185

6 parts on this diagram · 2 diagrams in section
