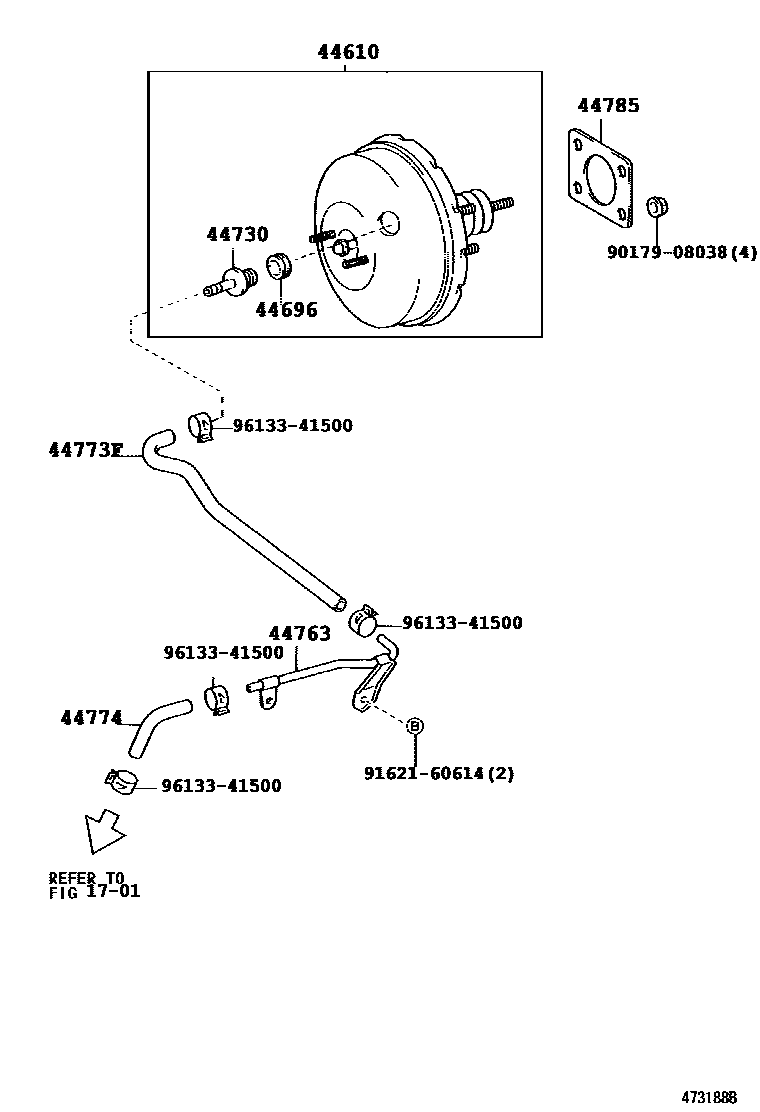

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-52040iNCP2#199908-200308

sub44610-52041

main44610-52041iNCP2#200308-200509

main44610-52260iNCP21200305-200410

sub44610-52261

main44610-52261iNCP21200411-200509

44696GROMMET, CHECK VALVE

main90480-24015iNCP2#199908-200509

main90480-24439iNCP21200305-200509

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iNCP21200305-200509

main44730-28030iNCP2#200305-200509

main44730-30010iNCP2#199908-200304

44763TUBE, BOOSTER VACUUM

main44763-52010iNCP2#199908-200509

44773FHOSE, UNION TO CHECK VALVE

main44773-52020iNCP2#199908-200208

main44773-52080iNCP2#200208-200509

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP2#199908-200509

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP2#199908-200509

9017908038

main90179-08038

9162160614

main91621-60614

9613341500

main96133-41500

11 parts on this diagram · 1 diagram in section
