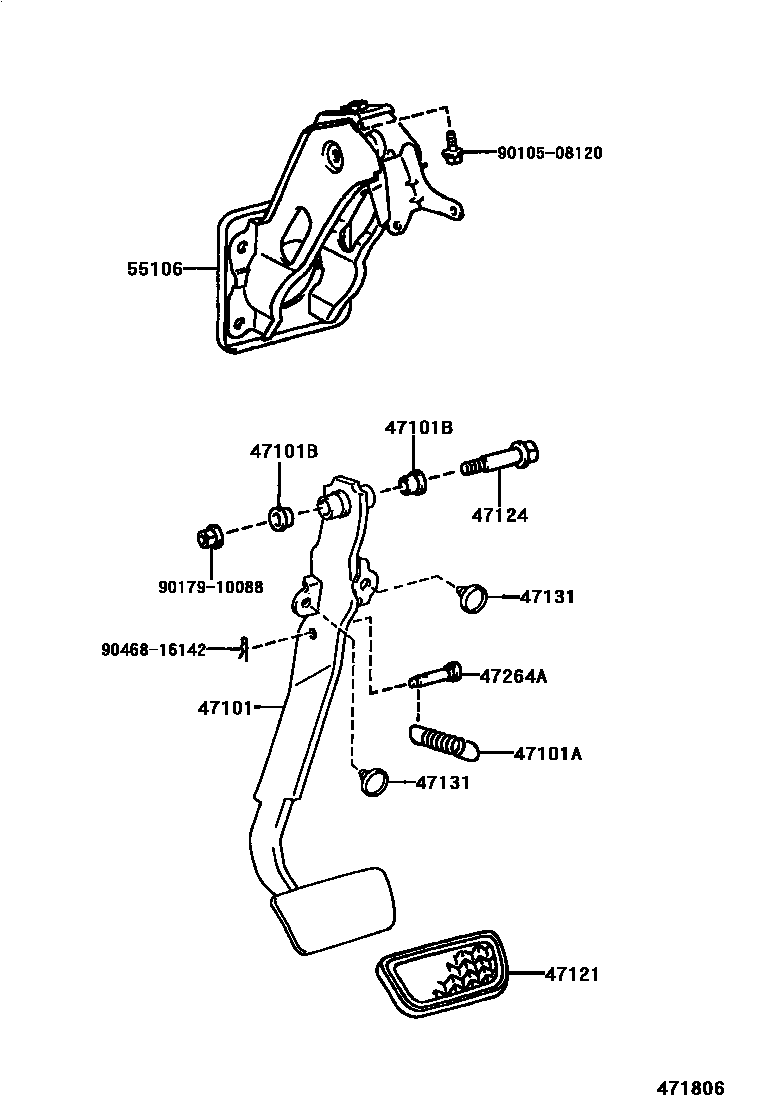

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-52070iNCP2#199908-200208

sub47101-52080

main47101-52120iNCP2#200208-200509

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-16072iNCP2#199908-200509

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNCP2#199908-200509

47121PAD, BRAKE PEDAL

main47121-52010iNCP2#199908-200509

47124SHAFT, BRAKE PEDAL

main90109-10167iNCP2#199908-200509

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06049iNCP2#199908-200509

47264APIN(FOR PUSH ROD)

main90249-08297iNCP2#199908-200509

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52041iNCP2#199908-200001

sub55106-52042

main55106-52042iNCP2#200001-200208

main55106-52070iNCP2#200208-200509

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

11 parts on this diagram · 2 diagrams in section
