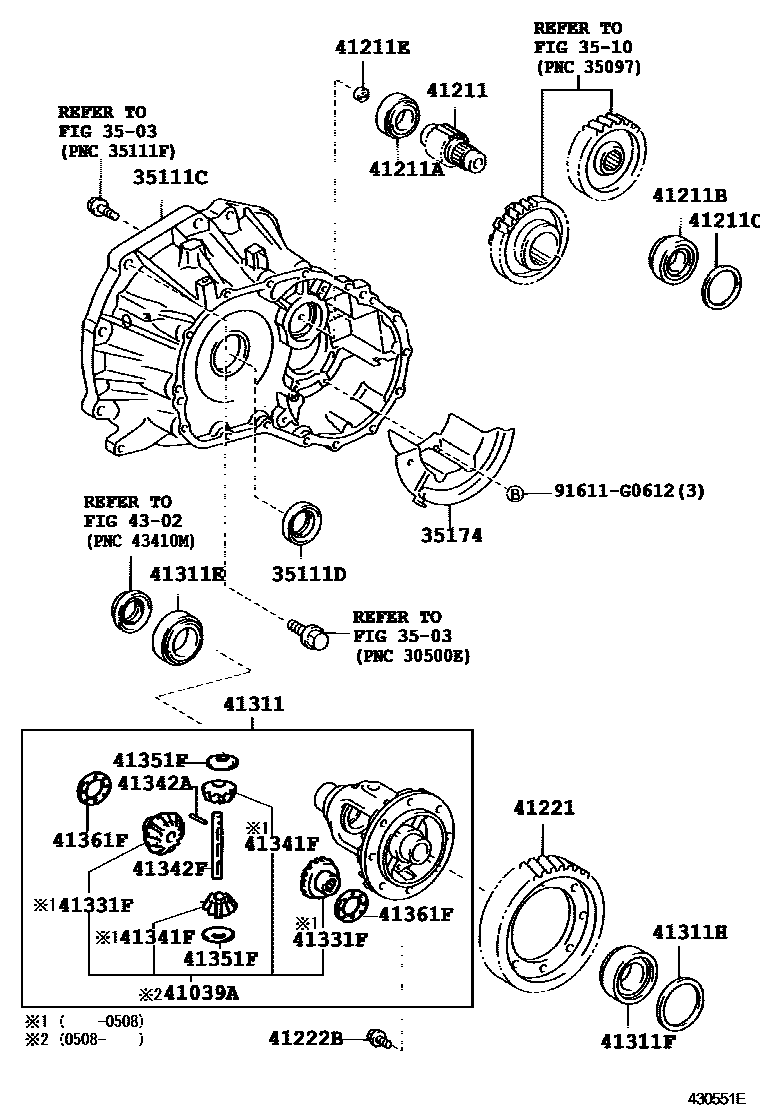

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1U441E 0002 1U340E,U340F

3503

3510

35111CHOUSING, TRANSAXLE

main35105-52070iNCP21199908-200506

sub35105-52071

main35105-52071iNCP21200506-200509

main35105-52080iNCP25199908-200509

main35105-52090iNCP20199908-200509

35111DSEAL, OIL (FOR TRANSAXLE HOUSING)

main90311-38075iNCP20199908-200509

35174SEPARATOR, TRANSAXLE HOUSING OIL

main35174-52020iNCP20199908-200509

main35174-52030iNCP21,25199908-200506

41039AGEAR KIT, DIFFERENTIAL

main41039-12010iNCP25200409-200509

main41039-44020iNCP20200508-200509

41211PINION, DIFFERENTIAL DRIVE

main41211-52010iNCP20199908-200509

main41211-52030iNCP21199908-200509

main41211-52040iNCP25199908-200509

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90365-35004iNCP21,25199908-200509

main90366-30079iNCP20199908-200509

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90365-35003iNCP21,25199908-200509

main90366-29004iNCP20199908-200509

41211CGEAR, DIFFERENTIAL RING

main90564-51039iNCP20199908-200509

main90564-51040iNCP20199908-200509

main90564-51041iNCP20199908-200509

main90564-51042iNCP20199908-200509

main90564-51043iNCP20199908-200509

main90564-51044iNCP20199908-200509

main90564-51045iNCP20199908-200509

main90564-51046iNCP20199908-200509

main90564-51047iNCP20199908-200509

main90564-51048iNCP20199908-200509

main90564-51049iNCP20199908-200509

main90564-51050iNCP20199908-200509

main90564-51051iNCP20199908-200509

main90564-51052iNCP20199908-200509

main90564-51053iNCP20199908-200509

main90564-51054iNCP20199908-200509

main90564-51055iNCP20199908-200509

main90564-51056iNCP20199908-200509

main90564-51057iNCP20199908-200509

main90564-51058iNCP20199908-200509

main90564-51059iNCP20199908-200509

main90564-51060iNCP20199908-200509

main90564-51061iNCP20199908-200509

main90564-51062iNCP20199908-200509

main90564-51063iNCP20199908-200509

41211EPLUG(FOR DIFFERENTIAL DRIVE PINION)

main90331-17017iNCP21,25199908-200509

main90339-13005iNCP20199908-200509

41221GEAR, FRONT DIFFERENTIAL RING

main41221-52010iNCP20199908-200509

main41221-52050iNCP21199908-200509

main41221-52060iNCP25199908-200509

sub41221-52061

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003iNCP21,25199908-200509

main90105-11040iNCP20199908-200509

41311CASE, FRONT DIFFERENTIAL

main41301-52010iNCP20199908-200509

main41301-52040iNCP21199908-200204

sub41301-52070

main41301-52050iNCP25199908-200310

sub41301-52051

main41301-52051iNCP25200310-200509

main41301-52070iNCP21200204-200509

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-38026iNCP20199908-200509

main90366-40016iNCP21199908-200509

main90366-50045iNCP25199908-200509

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-38023iNCP20199908-200509

main90366-44001iNCP21,25199908-200509

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90564-57012iNCP20199908-200509

sub90564-42080

main90564-57013iNCP20199908-200509

sub90564-42081

main90564-57014iNCP20199908-200509

sub90564-42082

main90564-57015iNCP20199908-200509

sub90564-42083

main90564-57016iNCP20199908-200509

sub90564-42084

main90564-57017iNCP20199908-200509

sub90564-42085

main90564-57018iNCP20199908-200509

sub90564-42086

main90564-57019iNCP20199908-200509

sub90564-42087

main90564-57020iNCP20199908-200509

sub90564-42088

main90564-57021iNCP20199908-200509

sub90564-42089

main90564-57022iNCP20199908-200509

sub90564-42090

main90564-57023iNCP20199908-200509

sub90564-42091

main90564-57024iNCP20199908-200509

sub90564-42092

main90564-57025iNCP20199908-200509

sub90564-42093

main90564-57026iNCP20199908-200509

sub90564-42094

main90564-57027iNCP20199908-200509

sub90564-42095

main90564-57028iNCP20199908-200509

sub90564-42096

main90564-57029iNCP20199908-200509

sub90564-42097

main90564-57030iNCP20199908-200509

sub90564-42098

main90564-57031iNCP20199908-200509

sub90564-42099

main90564-57032iNCP20199908-200509

sub90564-42100

main90564-57033iNCP20199908-200509

sub90564-42101

main90564-57034iNCP20199908-200509

sub90564-42102

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-10042iNCP20199908-200508

sub41331-44011

sub41331-48060

main41331-12011iNCP25199908-200410

41341FPINION, FRONT DIFFERENTIAL

main41341-10030iNCP20199908-200508

sub41341-44011

sub41341-48050

main41341-12030iNCP21199908-200410

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-04053iNCP20199908-200509

main90250-06058iNCP21,25199908-200509

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-10041iNCP20199908-200509

main41342-20060iNCP21,25199908-200509

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12020iNCP21,25199908-200509

main41351-52010iNCP20199908-200509

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-17010iNCP21,25199908-200509

main41361-17020iNCP21,25199908-200509

main41361-17030iNCP21,25199908-200509

main41361-17040iNCP21,25199908-200509

main41361-17050iNCP21,25199908-200509

main41361-17060iNCP21,25199908-200509

main41361-52010iNCP20199908-200509

main41361-52020iNCP20199908-200509

main41361-52030iNCP20199908-200509

main41361-52040iNCP20199908-200509

main41361-52050iNCP20199908-200509

main41361-52060iNCP20199908-200509

4302

91611G0612

main91611-G0612

25 parts on this diagram · 2 diagrams in section
