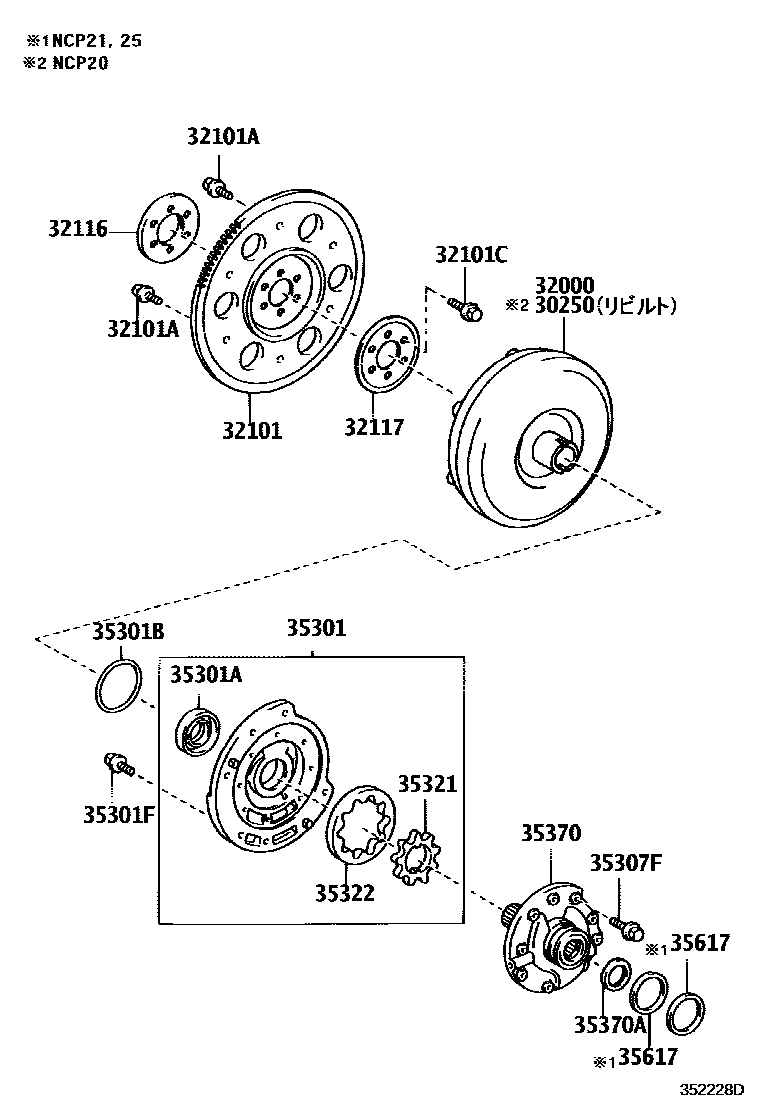

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-52020iNCP20199908-200208

sub30250-52110

32000CONVERTER ASSY, TORQUE

main32000-52020iNCP20199908-200208

sub32000-52110

main32000-52040iNCP21,25199908-200208

sub32000-52041

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52020iNCP2#199908-200208

main32101-52021iNCP2#200208-200509

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iNCP2#199908-200208

main90109-08113iNCP2#200404-200509

main90119-08269×5iNCP2#199908-200208

main90119-08498×5iNCP2#200404-200509

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×6iNCP2#199908-200208

32116SPACER, DRIVE PLATE, FRONT

main32116-52030iNCP2#199908-200208

32117SPACER, DRIVE PLATE, REAR

main32117-52030iNCP2#199908-200208

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-52030iNCP20199908-200208

main35035-52040iNCP21,25200208-200509

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38064iNCP21,25200208-200509

main90311-38075iNCP20199908-200208

main90311-38077iNCP21,25199908-200208

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99123iNCP20200208-200509

main90301-99124iNCP21,25200208-200509

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08301×7iNCP21,25199908-200208

main90105-08376×6iNCP20199908-200208

35307FBOLT (FOR STATOR SHAFT)

main90119-06559×8iNCP20200208-200509

main90119-06808×8iNCP20199908-200208

main90148-60027×10iNCP21,25200208-200509

35321GEAR, FRONT OIL PUMP DRIVE

main35321-52010iNCP20199908-200208

main35321-52020iNCP20200208-200509

main35321-52030iNCP20199908-200208

main35321-52040iNCP20200208-200509

main35321-52050iNCP20200208-200509

main35321-52060iNCP21,25199908-200208

main35321-52070iNCP21,25199908-200208

main35321-52080iNCP21,25199908-200208

main35321-52090iNCP21,25200208-200509

main35321-52100iNCP21,25199908-200208

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-52010iNCP20199908-200208

main35322-52020iNCP20200208-200509

main35322-52030iNCP20200208-200509

main35322-52040iNCP20200208-200509

main35322-52050iNCP20199908-200208

main35322-52060iNCP21,25200208-200509

main35322-52070iNCP21,25200208-200509

main35322-52080iNCP21,25199908-200208

main35322-52090iNCP21,25199908-200208

main35322-52100iNCP21,25200208-200509

35370SHAFT ASSY, STATOR

main35370-52010iNCP20200208-200509

main35370-52030iNCP21,25200208-200509

sub35370-52070

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-26003iNCP21,25199908-200208

main90374-32007iNCP20200208-200509

main90374-32008iNCP20199908-200208

35617RING, CLUTCH DRUM OIL SEAL

main35613-52010×2iNCP21,25199908-200208

sub35613-52020

17 parts on this diagram · 1 diagram in section
