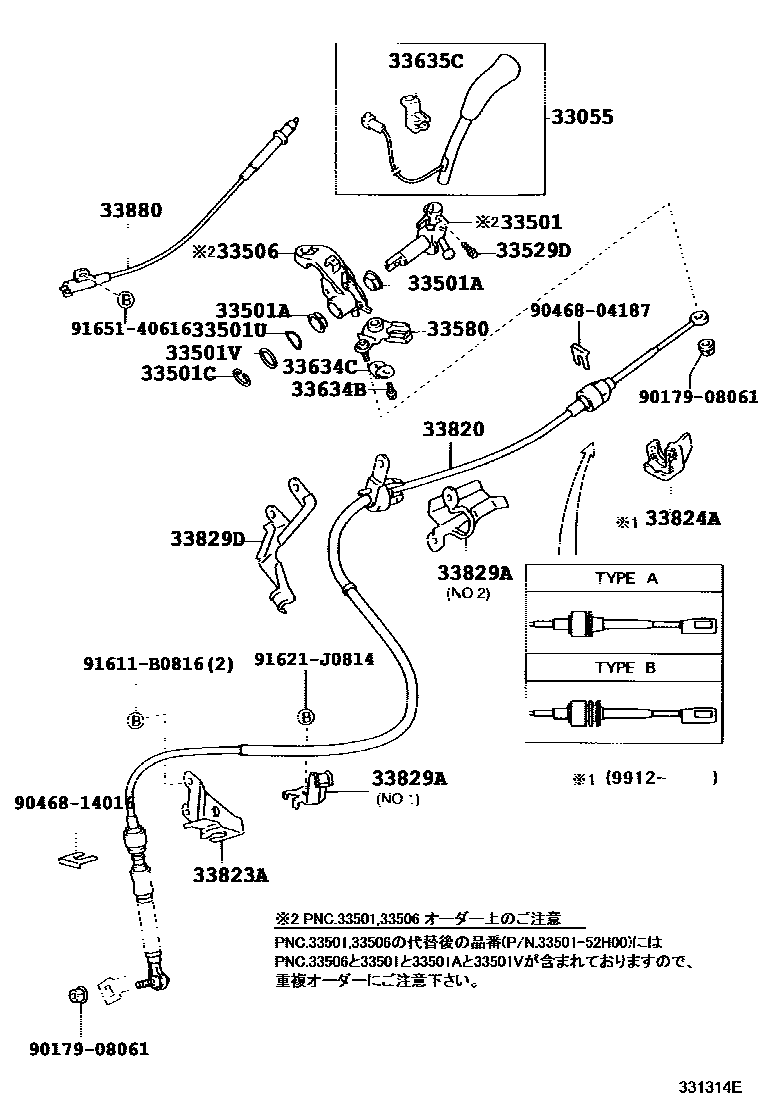

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-52030iNCP2#199908-199912

main33055-52031iNCP2#199912-200208

main33501-52020iNCP2#200208-200509

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-52010iNCP2#199908-199912

sub33501-52H00

main33501-52011iNCP2#199912-200110

sub33501-52H00

main33501-52012iNCP2#200110-200208

33501ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90386-20007×2iNCP2#199908-200110

main90386-21002×2iNCP2#200110-200208

33501CRING (FOR CONTROL SHAFT)

main96150-02000iNCP2#199908-200208

33501UWASHER, WAVE(FOR COLUMN SHIFT CONTROL SHIFT)

main90206-21002iNCP2#200208-200509

33501VSPACER(FOR COLUMN SHIFT CONTROL SHIFT)

main90560-22005iNCP2#200110-200208

main90564-21001iNCP2#199908-200110

subSZ910-11017

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-52020iNCP2#199908-199912

main33506-52021iNCP2#199912-200110

sub33501-52H00

main33506-52022iNCP2#200208-200509

33529DBOLT, SHIFT LEVER

main33529-32010iNCP2#199908-200208

33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)

main33580-52010iNCP2#199908-200208

33634BBOLT(FOR WIRE PROTECTOR)

main33529-52010iNCP2#199908-200208

33634CBRACKET, SHIFT LEVER HARNESS CONNECTOR

main33634-32010iNCP2#199908-200208

33635CGUIDE, WIRE

main33635-52010iNCP2#199912-200208

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-52060iNCP20199908-199912

main33820-52061iNCP20199912-200208

main33820-52070iNCP21,25199908-199912

main33820-52071iNCP21,25199912-200208

main33820-52300iNCP20200208-200509

main33820-52310iNCP21,25200208-200509

33823ABRACKET, TRANSMISSION CONTROL CABLE

main33823-52020iNCP20199908-200208

main33823-52041iNCP21,25199908-200208

33824ACOVER, TRANSMISSION CONTROL CABLE

main33824-52010iNCP2#199912-200208

33829ASUPPORT, TRANSMISSION CONTROL CABLE

main33829-52020iNCP20199908-200208

main33829-52030iNCP21,25200208-200509

main33829-52050iNCP2#200208-200509

33829DBRACKET, TRANSMISSION CONTROL CABLE

main33829-52040iNCP2#199908-200208

main33829-52070iNCP2#200208-200509

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-52030iNCP2#199908-200208

9017908061

main90179-08061

9046804187

main90468-04187

9046814016

main90468-14016

91611B0816

main91611-B0816

91621J0814

main91621-J0814

9165140616

main91651-40616

24 parts on this diagram · 4 diagrams in section
