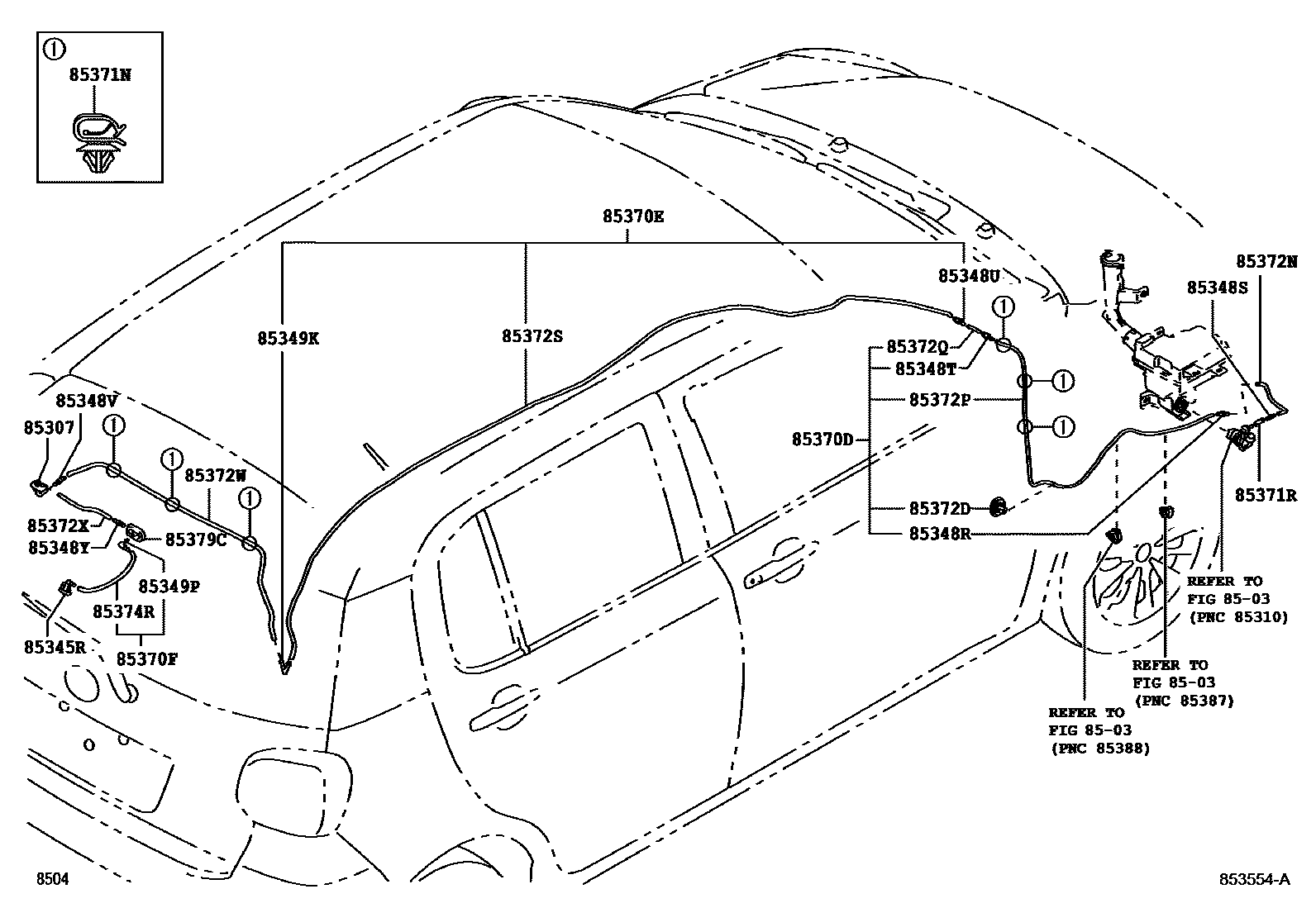

REAR WASHER
8503
85307GROMMET SUB-ASSY, WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85370DHOSE ASSY, REAR WASHER, NO.1
85370EHOSE ASSY, REAR WASHER, NO.2
85370FHOSE ASSY, REAR WASHER, NO.3
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85374RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85379CGROMMET, REAR WASHER HOSE NO.1
25 parts on this diagram · 1 diagram in section
