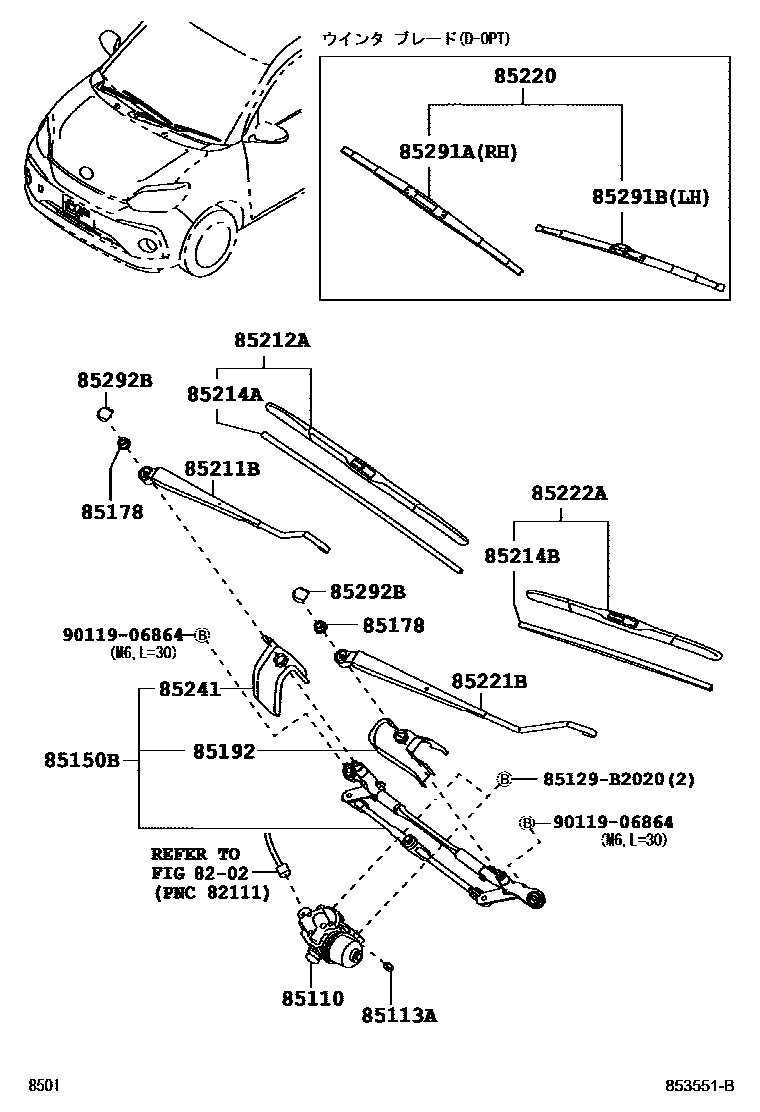

WINDSHIELD WIPER
8202
85110MOTOR ASSY, WINDSHIELD WIPER
85113ANUT, FR WIPER
85150BLINK ASSY, WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85192COVER, WINDSHIELD WIPER ARM
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85220BLADE ASSY, WINDSHIELD WIPER
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85241COVER, WINDSHIELD WIPER
85291ABLADE, FRONT WIPER, WINTER, RH
85291BBLADE, FRONT WIPER, WINTER, LH
85292BCAP, FRONT WIPER ARM HEAD
85129B2020COIL, WINDSHIELD WIPER MOTOR FIELD
main85129-B2020
9011906864
main90119-06864
19 parts on this diagram · 1 diagram in section
