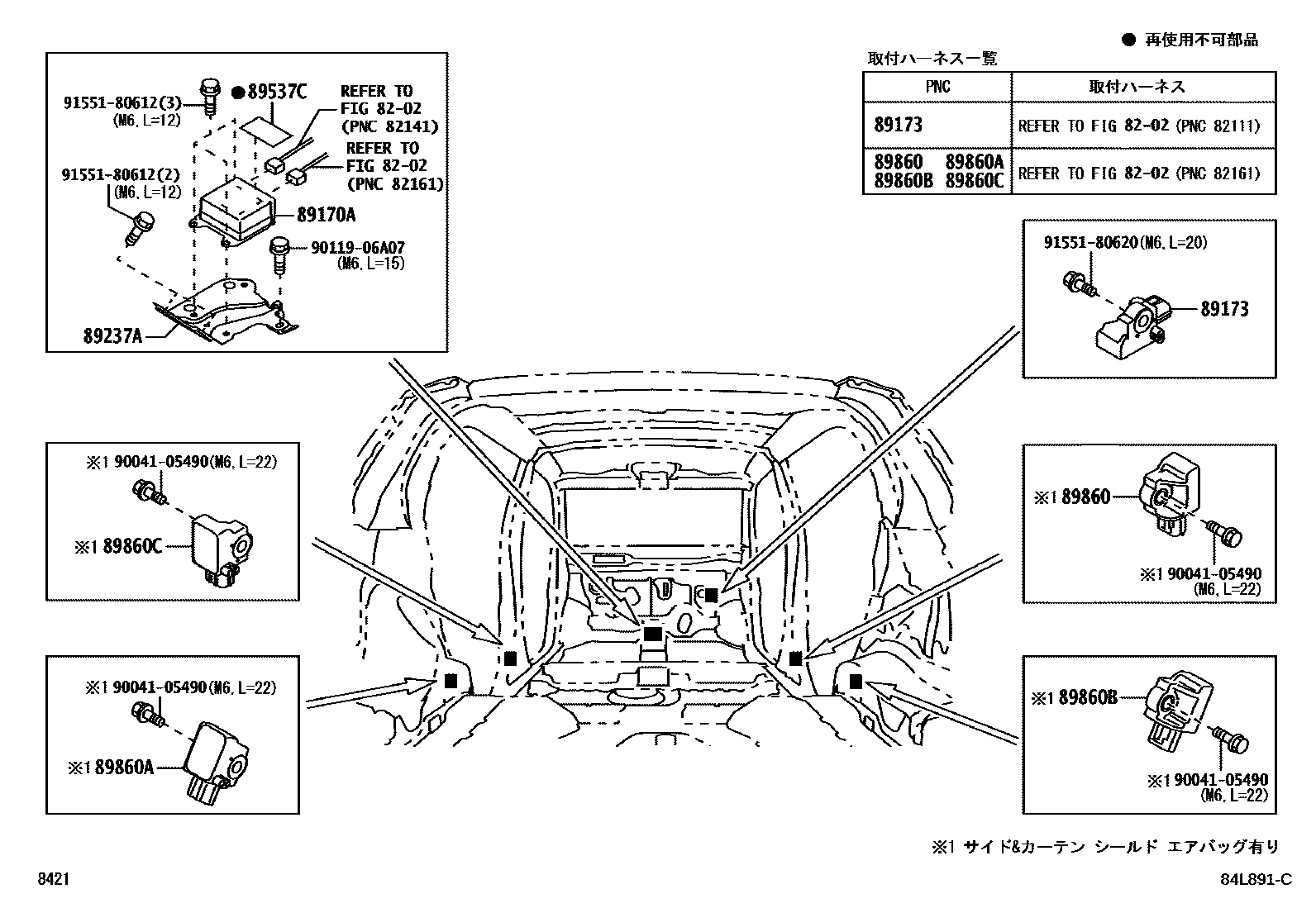

AIR BAG

8202

89170ACOMPUTER ASSY, AIRBAG

main89170-B1330supersedes 89170-B1320iM700,710201604-202309

89173SENSOR, AIRBAG, FRONT

main89173-B1060iM700,710201604-201703

main89173-B1061iM700,710201704-202309

89237ABRACKET, COMPUTER UNIT

main89237-B1040iM700,710201604-202309

89537CCOVER, COMPUTER

main19114-B1020iM700,710201604-202309

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-B1090iM700,710201604-201703

main89860-B1091iM700,710201704-202309

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89860-B1090iM700,710201604-201703

main89860-B1091iM700,710201704-202309

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89860-B1090iM700,710201604-201703

main89860-B1091iM700,710201704-202309

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89860-B1090iM700,710201604-201703

main89860-B1091iM700,710201704-202309

9004105490

main90041-05490

9011906A07

main90119-06A07

9155180612

main91551-80612

9155180620

main91551-80620

13 parts on this diagram · 1 diagram in section
