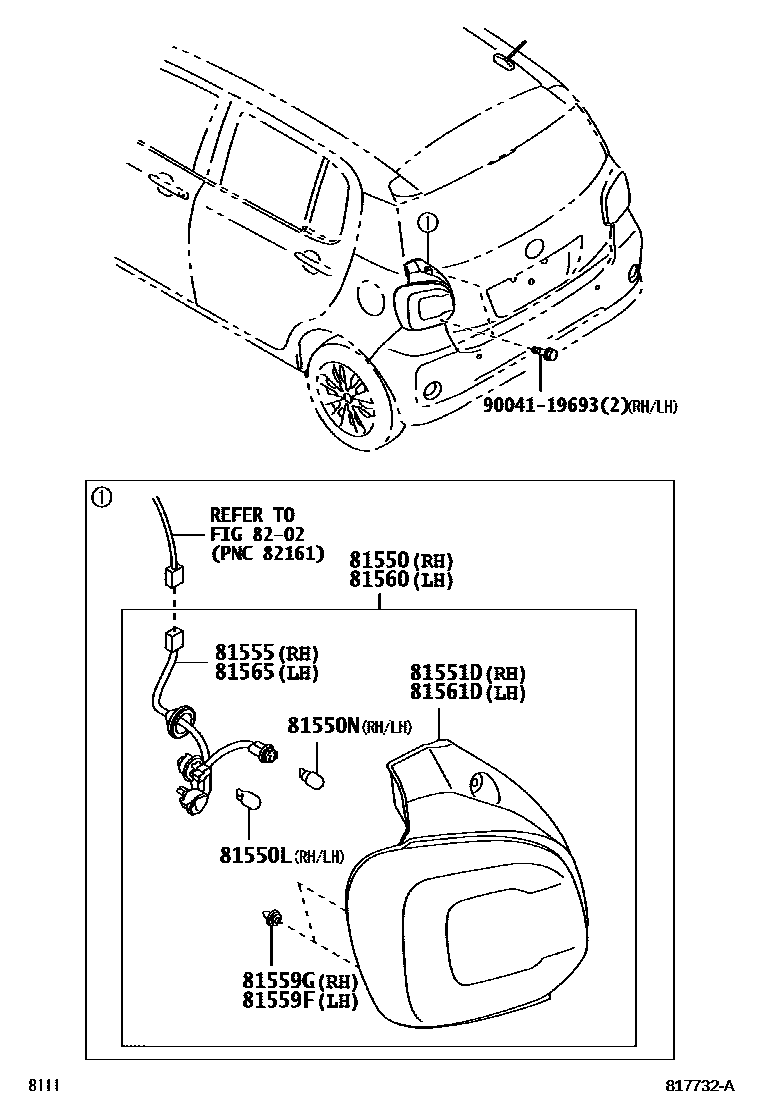

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-B1260iM700,710..X¥23,700201604-202309

main81550-B1280iM700,710..MODA¥25,000201604-202309

81550LBULB, REAR TURN SIGNAL LAMP

main90049-51179iM700,710¥300201604-202309

81550NBULB, BACK UP LAMP

main90049-51194iM700,710¥200201604-202309

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-B1210iM700,710..X¥21,800201604-202309

main81551-B1220iM700,710..MODA¥23,000201604-202309

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-B1120iM700,710¥2,580201604-202309

81559FCLIP, RR COMBINATION LAMP, LH

main81559-B2170iM700,710¥140201604-202309

81559GCLIP, RR COMBINATION LAMP, RH

main81559-B2170iM700,710¥140201604-202309

81560LAMP ASSY, REAR COMBINATION, LH

main81560-B1160iM700,710..X¥23,700201604-202309

main81560-B1210iM700,710..MODA¥25,000201604-202309

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-B1150iM700,710..X¥21,800201604-202309

main81561-B1160iM700,710..MODA¥23,000201604-202309

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-B1120iM700,710¥2,580201604-202309

8202

9004119693

main90041-19693¥100

12 parts on this diagram · 1 diagram in section
