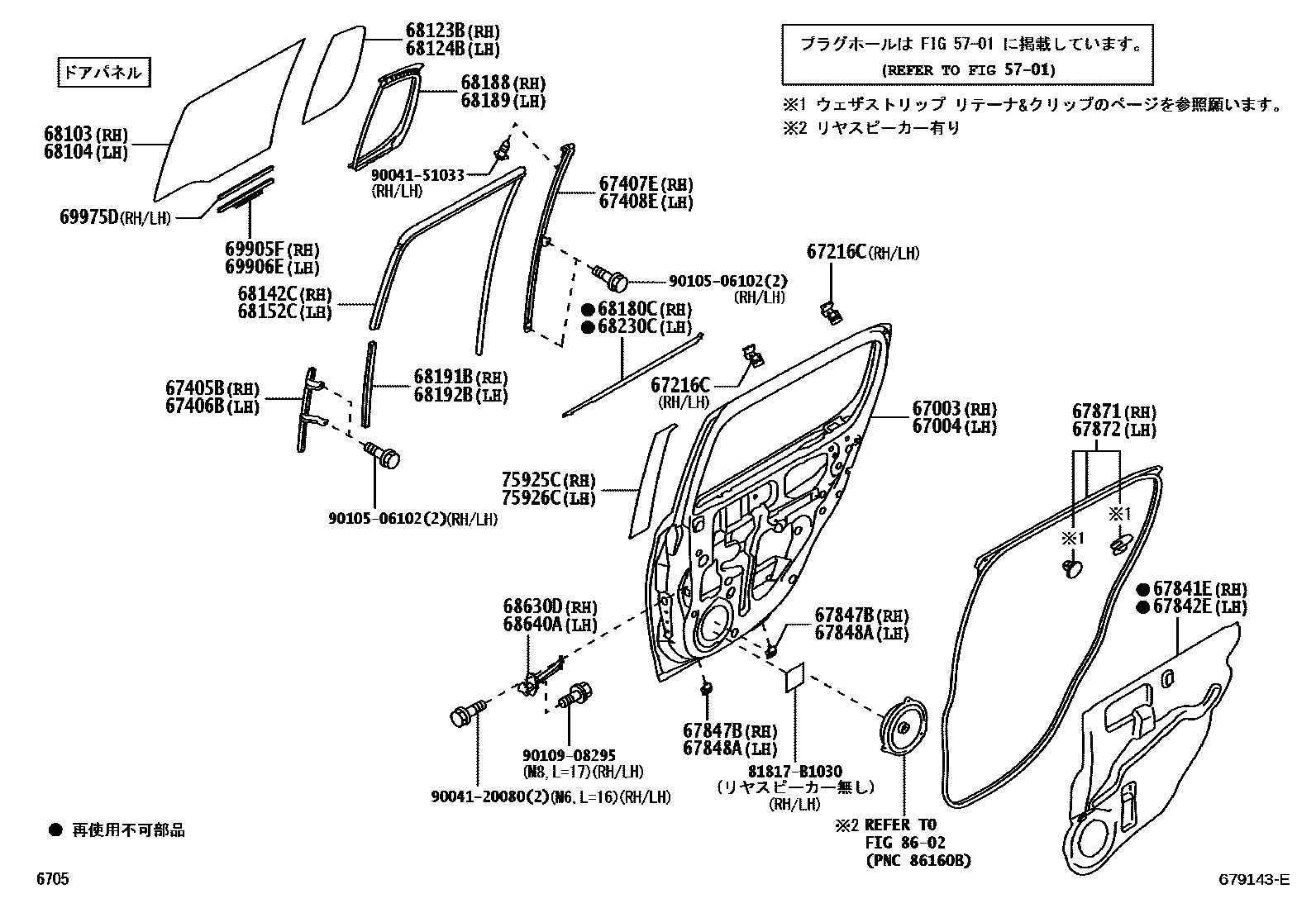

REAR DOOR PANEL & GLASS
5701
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67216CSTOPPER, REAR DOOR GLASS, UPPER NO.2
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67847BSEAL, REAR DOOR VENT, RH NO.1
67848ASEAL, REAR DOOR VENT, LH NO.1
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
69905FCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906ECHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975DFILLER, REAR DOOR GLASS CHANNAL
75925CTAPE, BLACK OUT, NO.3 RH
TUYAKESI BLACK DUMMYCOLOR,B67 ,B79 ,G58 ,R59 ,R67 ,R72 ,S28 ,T25 ,W24 ,X96 ,X98 ,XE2 ,XE3 ,XE4 ,XE5 ,XE6 ,Y13
TUYAKESI BLACK DUMMYCOLOR,B67 ,B86 ,G58 ,R59 ,R67 ,R72 ,R73 ,S28 ,T25 ,T33 ,W24 ,X96 ,X99 ,XE2 ,XE3 ,XE4 ,XE5 ,XG2 ,XG7 ,Y13
75926CTAPE, BLACK OUT, NO.3 LH
TUYAKESI BLACK DUMMYCOLOR,B67 ,B79 ,G58 ,R59 ,R67 ,R72 ,S28 ,T25 ,W24 ,X96 ,X98 ,XE2 ,XE3 ,XE4 ,XE5 ,XE6 ,Y13
TUYAKESI BLACK DUMMYCOLOR,B67 ,B86 ,G58 ,R59 ,R67 ,R72 ,R73 ,S28 ,T25 ,T33 ,W24 ,X96 ,X99 ,XE2 ,XE3 ,XE4 ,XE5 ,XG2 ,XG7 ,Y13
8602
81817B1030PACKING, CENTER STOP LAMP
main81817-B1030
9004120080
main90041-20080
9004151033
main90041-51033
9010506102
main90105-06102
9010908295
main90109-08295
39 parts on this diagram · 3 diagrams in section
