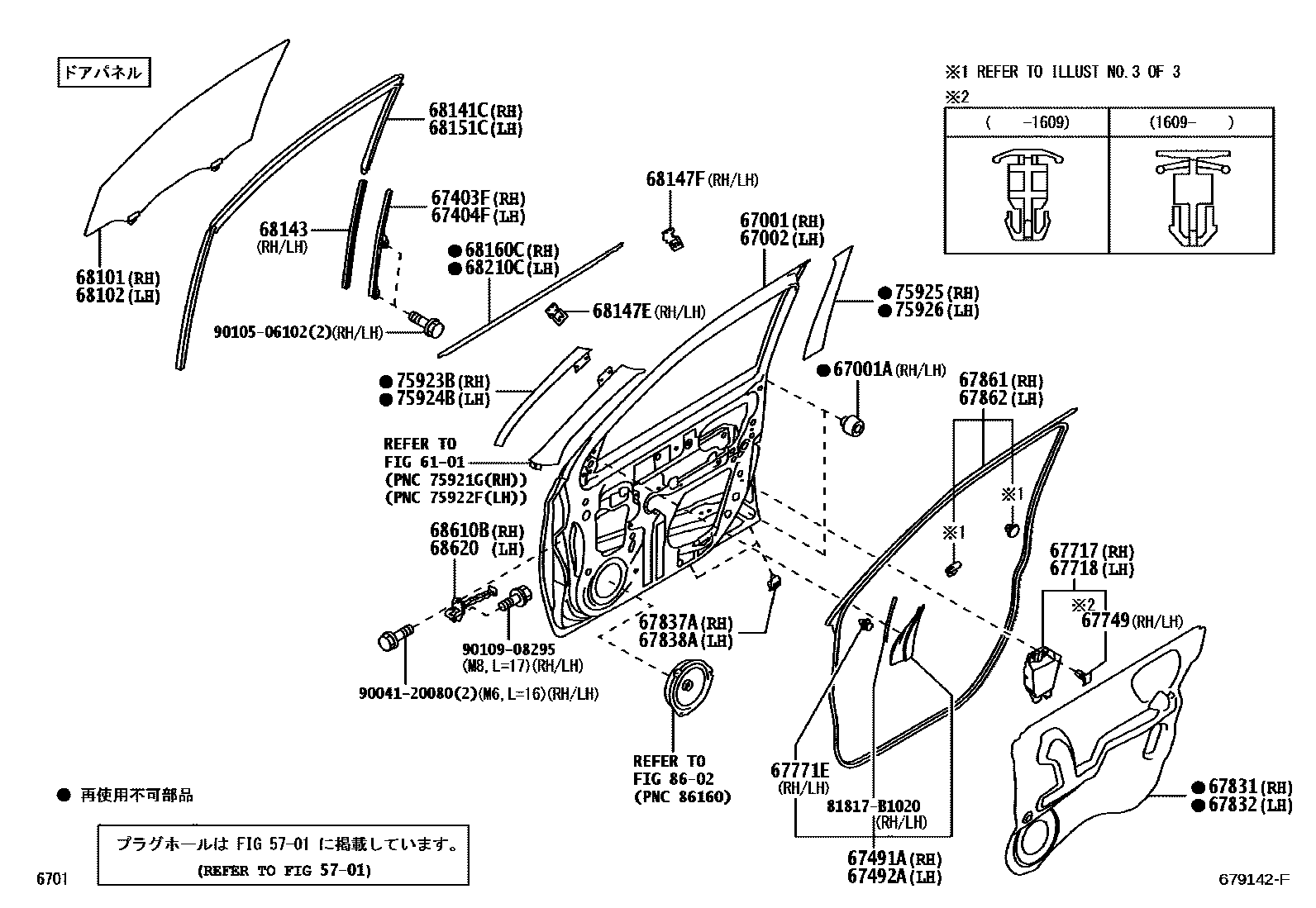

FRONT DOOR PANEL & GLASS

5701

6101

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-B1050i201604-202309

67001ACUSHION, FRONT DOOR PANEL

main90541-09069i201604-202309

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-B1090i201604-202309

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-B1050i201604-202309

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-B1050i201604-202309

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-B1040i201604-202309

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-B1040i201604-202309

67717PAD, FRONT DOOR TRIM, CENTER RH

main75787-B1010i201604-202309

67718PAD, FRONT DOOR TRIM, CENTER LH

main75788-B1010i201604-202309

67749CLIP, DOOR TRIM MOULDING

main67749-B2010i201604-201609

main67749-B2030i201609-202309

67771ERETAINER(FOR FRONT DOOR FRAME BRACKET)

main67771-B2010i201604-202309

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-B1060i201604-202309

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-B1060i201604-202309

67837ASEAL, FRONT DOOR VENT, RH

main67837-B2010i201604-202309

67838ASEAL, FRONT DOOR VENT, LH

main67837-B2010i201604-202309

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-B1080i201604-202309

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-B1080i201604-202309

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-B1100i201604-202309

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-B1100i201604-202309

68141CRUN, FRONT DOOR GLASS, RH

main68141-B1060i201604-201909

sub68141-B1061

main68141-B1061i201910-202309

68143RUN, FRONT DOOR GLASS, LOWER

main68143-B1040i201604-201811

sub68143-B1041

main68143-B1041i201811-201909

sub68143-B1042

main68143-B1042i201910-202309

68147ESTOP, FRONT DOOR GLASS, UPPER

main68147-B1100i201604-202309

68147FSTOP, FRONT DOOR GLASS, UPPER

main68147-B1110i201604-202309

68151CRUN, FRONT DOOR GLASS, LH

main68151-B1060i201604-201909

sub68151-B1061

main68151-B1061i201910-202309

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-B1050i201604-202309

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-B1050i201604-202309

68610BCHECK ASSY, FRONT DOOR, RH

main68610-B1031i201604-202309

68620CHECK ASSY, FRONT DOOR, LH

main68610-B1031i201604-202309

75923BTAPE, BLACK OUT, NO.2 RH

main75923-B1050-C0i201604-201810

TUYAKESI BLACK DUMMYCOLOR,B67 ,B79 ,G58 ,R59 ,R67 ,R72 ,S28 ,T25 ,W24 ,X96 ,X98 ,XE2 ,XE3 ,XE4 ,XE5 ,XE6 ,Y13

main75923-B1050-C0i201810-202309

TUYAKESI BLACK DUMMYCOLOR,B67 ,B86 ,G58 ,R59 ,R67 ,R72 ,R73 ,S28 ,T25 ,T33 ,W24 ,X96 ,X99 ,XE2 ,XE3 ,XE4 ,XE5 ,XG2 ,XG7 ,Y13

75924BTAPE, BLACK OUT, NO.2 LH

main75924-B1050-C0i201604-201810

TUYAKESI BLACK DUMMYCOLOR,B67 ,B79 ,G58 ,R59 ,R67 ,R72 ,S28 ,T25 ,W24 ,X96 ,X98 ,XE2 ,XE3 ,XE4 ,XE5 ,XE6 ,Y13

main75924-B1050-C0i201810-202309

TUYAKESI BLACK DUMMYCOLOR,B67 ,B86 ,G58 ,R59 ,R67 ,R72 ,R73 ,S28 ,T25 ,T33 ,W24 ,X96 ,X99 ,XE2 ,XE3 ,XE4 ,XE5 ,XG2 ,XG7 ,Y13

75925TAPE, BLACK OUT, NO.3 RH

main75925-B1050-C0i201604-201810

TUYAKESI BLACK DUMMYCOLOR,B67 ,B79 ,G58 ,R59 ,R67 ,R72 ,S28 ,T25 ,W24 ,X96 ,X98 ,XE2 ,XE3 ,XE4 ,XE5 ,XE6 ,Y13

main75925-B1050-C0i201810-202309

TUYAKESI BLACK DUMMYCOLOR,B67 ,B86 ,G58 ,R59 ,R67 ,R72 ,R73 ,S28 ,T25 ,T33 ,W24 ,X96 ,X99 ,XE2 ,XE3 ,XE4 ,XE5 ,XG2 ,XG7 ,Y13

75926TAPE, BLACK OUT, NO.3 LH

main75926-B1050-C0i201604-201810

TUYAKESI BLACK DUMMYCOLOR,B67 ,B79 ,G58 ,R59 ,R67 ,R72 ,S28 ,T25 ,W24 ,X96 ,X98 ,XE2 ,XE3 ,XE4 ,XE5 ,XE6 ,Y13

main75926-B1050-C0i201810-202309

TUYAKESI BLACK DUMMYCOLOR,B67 ,B86 ,G58 ,R59 ,R67 ,R72 ,R73 ,S28 ,T25 ,T33 ,W24 ,X96 ,X99 ,XE2 ,XE3 ,XE4 ,XE5 ,XG2 ,XG7 ,Y13

8602

81817B1020PACKING, CENTER STOP LAMP

main81817-B1020

9004120080

main90041-20080

9010506102

main90105-06102

9010908295

main90109-08295

39 parts on this diagram · 3 diagrams in section
