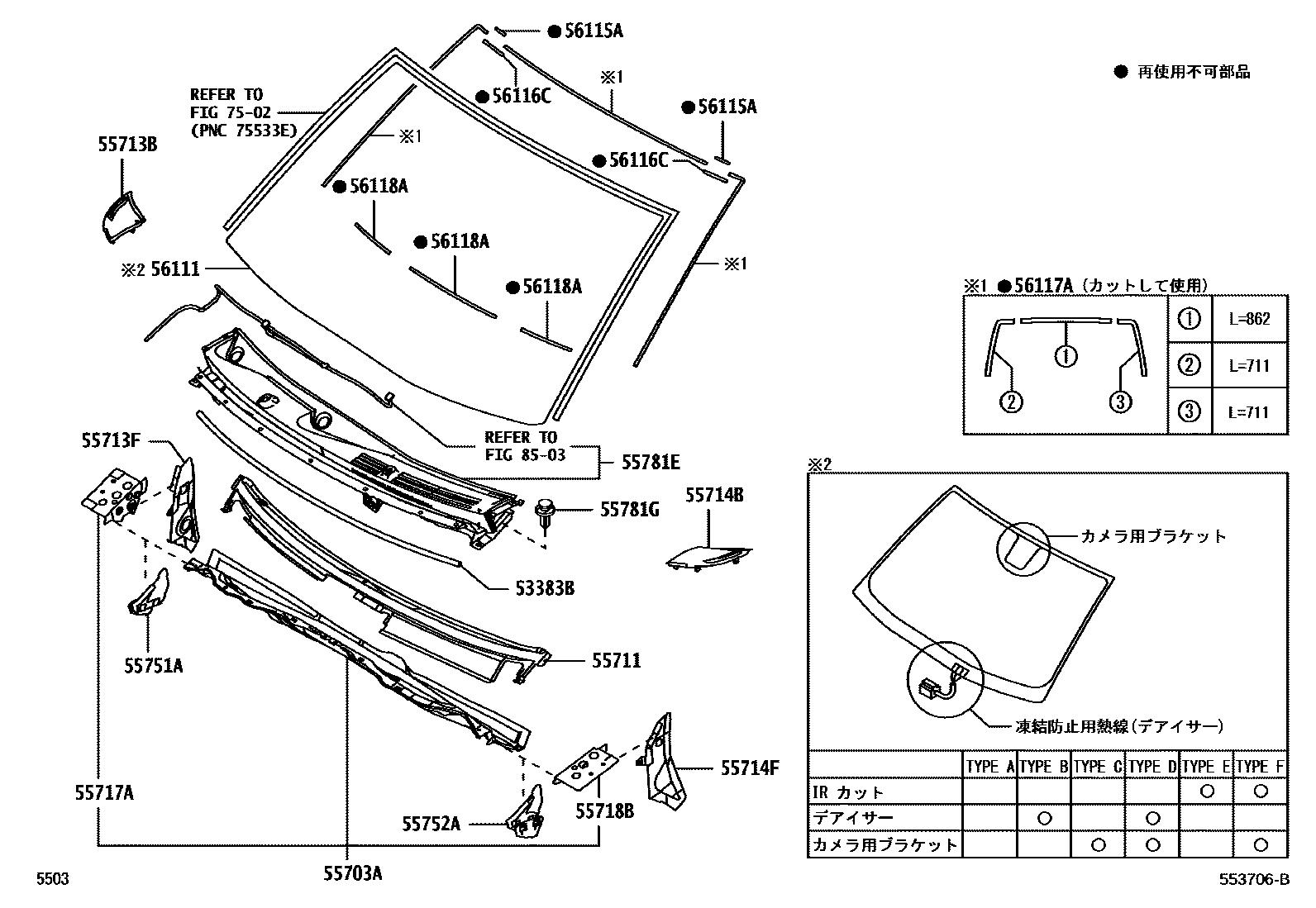

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-B1050iM700,710201604-202309

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-B1160iM700,710201604-202309

55711PANEL, COWL TOP, OUTER

main55711-B1050iM700,710201604-202309

55713BCOVER, COWL SIDE PANEL HOLE, RH

main53445-B1010iM700,710201604-202309

55713FREINFORCEMENT, COWL TOP SIDE, RH

main55723-B1020iM700,710201604-202309

55714BCOVER, COWL SIDE PANEL HOLE, LH

main53446-B1010iM700,710201604-202309

55714FREINFORCEMENT, COWL TOP SIDE, LH

main55724-B1020iM700,710201604-202309

55717APANEL, COWL TOP SIDE, INNER RH

main55717-B1060iM700,710201604-202309

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-B1060iM700,710201604-202309

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-B1040iM700,710201604-202309

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55752-B1040iM700,710201604-202309

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-B1070iM700,710201604-202309

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90044-67496iM700,710201604-202309

56111GLASS, WINDSHIELD

main56101-B1320iM700,710..X202104-202105

sub56101-B1321

main56101-B1321iM700,710..X202106-202309

main56101-B1340iM700,710..MODA201810-202105

sub56101-B1341

main56101-B1341iM700,710..X202106-202309

main56101-B1341iM700,710..X202106-202309

main56111-B1150iM700,710..X201604-202104

main56111-B1230iM700,710..MODA201604-201810

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-97402iM700,710201604-202309

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401iM700,710201604-202309

56117ADAM, WINDOW GLASS ADHESIVE

main56117-B1050iM700,710201604-202309

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-B2130iM700,710201604-202309

7502

8503

20 parts on this diagram · 1 diagram in section
