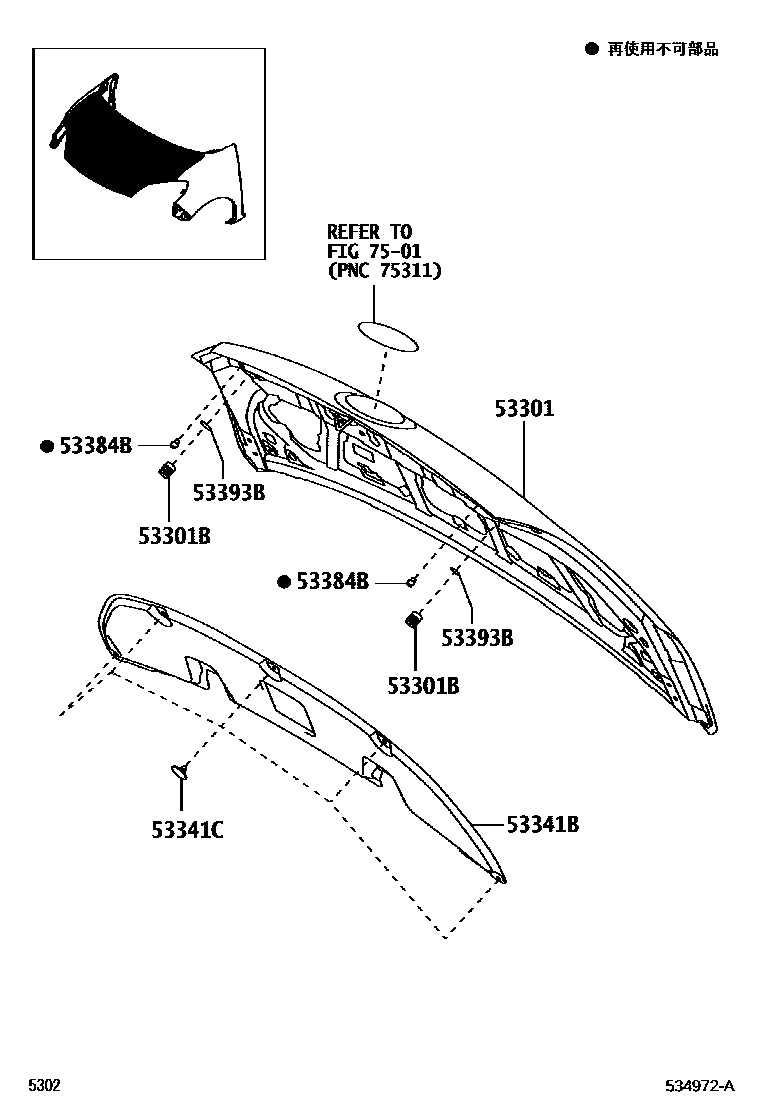

HOOD & FRONT FENDER

0001 1 0002 1 0003 1 0004 1

53301HOOD SUB-ASSY

main53301-B1120iM700,710..X201604-202309

main53301-B1130iM700,710..MODA201604-202309

53301BCUSHION, HOOD BUMPER

main90045-41262iM700,710201604-202207

main90541-15111iM700,710202208-202309

53341BINSULATOR, HOOD

main53341-B1070iM700,710201604-202309

53341CCLIP(FOR HOOD INSULATOR)

main90044-67634iM700,710201609-202309

main90467-09050iM700,710201604-201608

53384BCUSHION, HOOD, CENTER

main53384-B2010iM700,710201604-202309

53393BPROTECTOR, HOOD, FRONT

main53393-52010iM700,710201604-202309

7501

7 parts on this diagram · 4 diagrams in section
