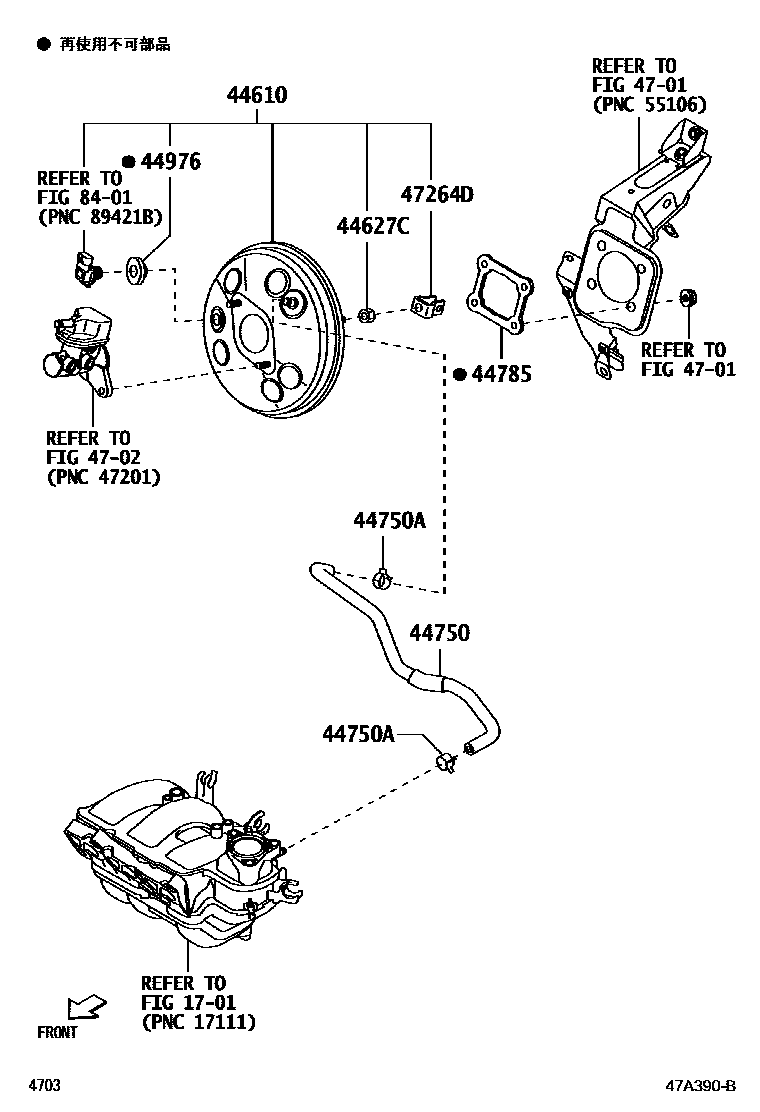

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-B1230iM700,710201604-201901

sub44610-B1231

main44610-B1231iM700,710201902-202309

44627CNUT, BOOSTER SLEEVE CYLINDER

main94130-01002iM700,710201604-202309

44750HOSE ASSY, VACUUM

main44750-B1130iM700,710201604-202309

44750ACLIP(FOR VACUUM HOSE ASSY)

main90044-67161iM700,710201604-202309

44785GASKET, BRAKE BOOSTER

main47278-87703iM700,710201604-202309

44976SEAL, BOOSTER

main44685-B2010iM700,710201604-202309

4701

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-B1010iM700,710201604-202309

8401

11 parts on this diagram · 1 diagram in section
