BRAKE MASTER CYLINDER

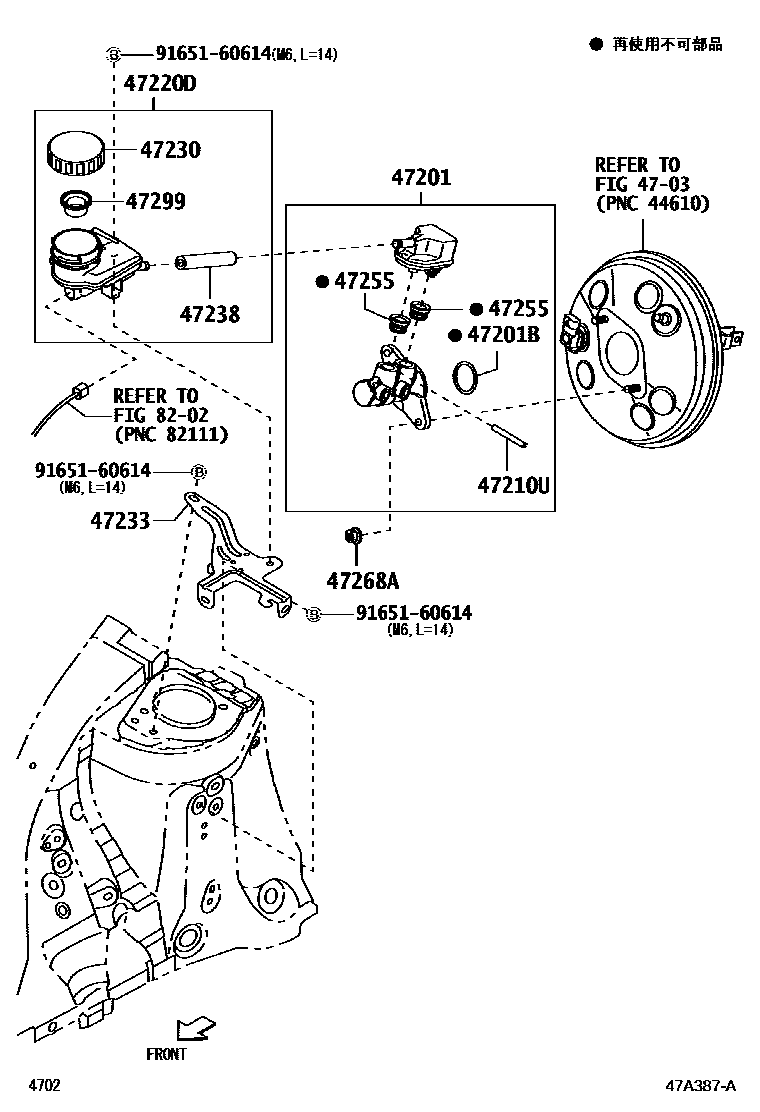

Parts diagram

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-B1190i201604-202309

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01352i201604-202309

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029i201604-202309

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-B1110i201604-202309

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-B2030i201604-202309

47233BRACKET, RESERVOIR

main47233-B1050i201604-202309

47238HOSE, MASTER CYLINDER BRIDGE

main47234-B1060i201604-202309

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-B2050i201604-202309

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124i201604-202309

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-87401i201604-202309

8202

9165160614

main91651-60614

13 parts on this diagram · 1 diagram in section
