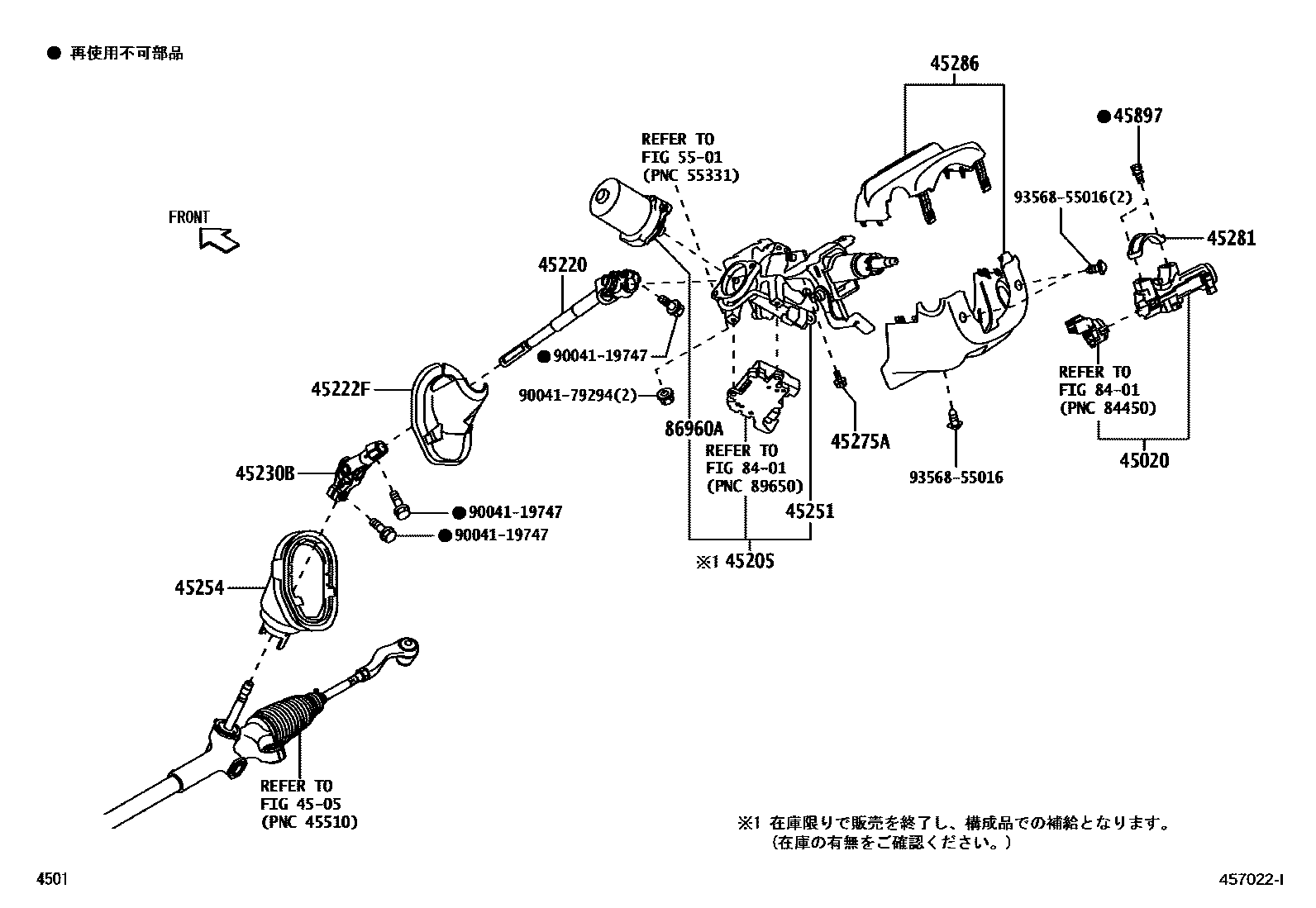

STEERING COLUMN & SHAFT

0001 1 0002 1PUSH START

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-B1080iM700,710..X201604-201802

sub45020-B1081

main45020-B1081iM700,710..X201803-201810

4505

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-B1190iM700,710..X201604-201810

sub45205-B1191

main45205-B1200iM700,710..X201604-201809

sub45205-B1201

main45205-B1201iM700,710201810-202309

sub45251-B9240

sub80960-B9040

sub89650-B1150

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-B1160iM700,710201604-202309

45222FCOVER, DUST

main45222-B1050iM700,710201604-202309

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45290-B1070iM700,710201604-202309

45251TUBE SET, STEERING COLUMN

main45251-B9240iM700,710..MODA;M700,710..X..PS2201604-202309

main45251-B9250iM700,710..X201604-201810

45254SHIELD, STEERING COLUMN HOLE

main45254-B1040iM700,710201604-202309

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main91651-60825iM700,710201604-202309

sub91651-B0825

45281HOUSING, STEERING COLUMN

main45281-B1020iM700,710..X201604-201810

main45281-B1030iM700,710..MODA;M700,710..X..PS2201604-202309

45286COVER, STEERING COLUMN

main45286-B1913-B0iM700,710..MODA201604-202309

DK.GRAY,TRIM1#

main45286-B1913-B0iM700,710..X201604-202309

DK.GRAY,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-B1020iM700,710..MODA;M700,710..X..PS2201604-202309

main45897-B2010iM700,710..X201604-201810

5501

8401

86960AMOTOR SET, POWER STEERING

main80960-B9040iM700,710201604-202309

9004119747

main90041-19747

9004179294

main90041-79294

9356855016

main93568-55016

18 parts on this diagram · 2 diagrams in section
