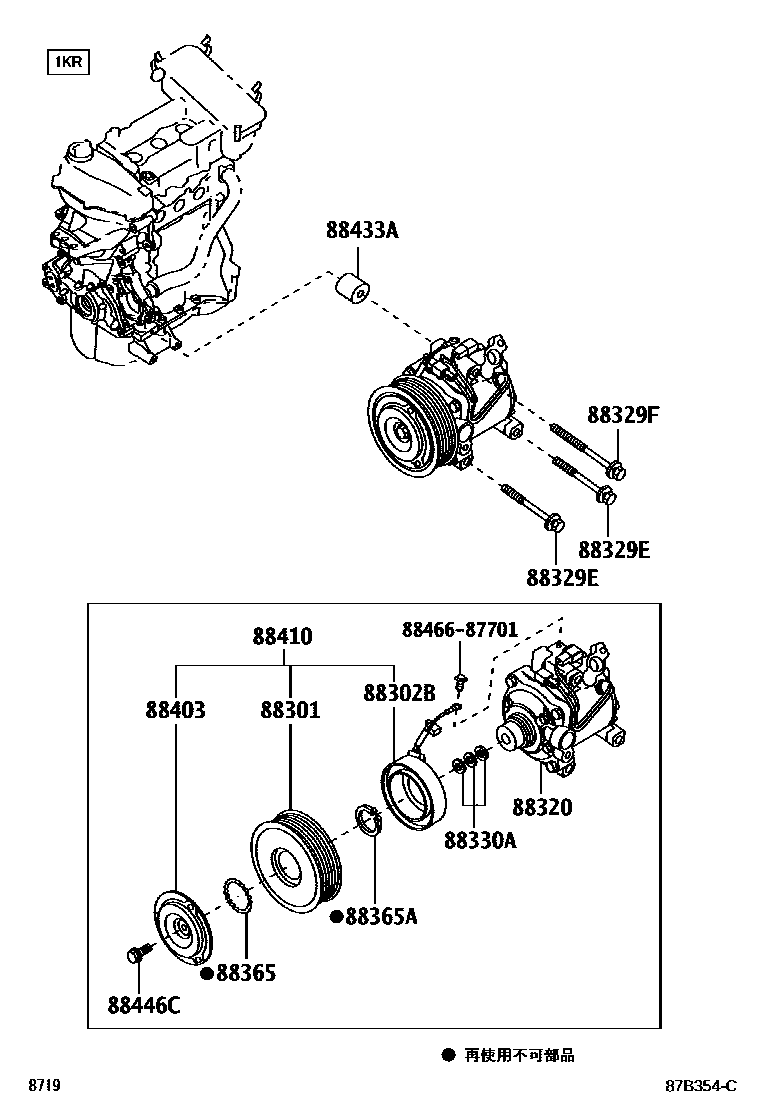

HEATING & AIR CONDITIONING - COMPRESSOR

0001 11KR 0002 11NR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-B1040iKGC3#201002-201206

main88412-B1050iKGC3#201404

main88412-B1080iNGC30201002-201206

88302BSTATOR, MAGNET CLUTCH

main88411-97401iKGC3#,NGC30201002-201206

main88411-B1020iKGC3#201404

88320COMPRESSOR ASSY, COOLER

main88320-B1020iKGC3#201206-201404

main88320-B1050iNGC30201206-201404

main88320-B1060iKGC3#201404

88329EBOLT, COMPRESSOR, NO.1

main88329-B1010×2iKGC3#201206-201404

main88329-B1030×3iNGC30201206-201404

88329FBOLT, COMPRESSOR, NO.2

main88329-B1020iKGC3#201404

88330AWASHER (FOR MAGNET CLUTCH)

main88318-87704iNGC30201404

main88318-87705iKGC3#,NGC30201206-201404

main88318-87706iKGC3#,NGC30201002-201206

main88335-14020iKGC3#201404

88365RING, SNAP

main90099-07125iKGC3#,NGC30201002-201206

88365ARING, SNAP (FOR COMPRESSOR)

main88365-87201iKGC3#,NGC30201206-201404

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-97201iKGC3#,NGC30201002-201206

88410CLUTCH ASSY, MAGNET

main88410-B1040iKGC3#201206-201404

main88410-B1060iNGC30201206-201404

main88410-B1070iKGC3#201404

88433ASTAY, COMPRESSOR

main88433-B1010×3iNGC30201206-201404

main88433-B1020iKGC3#201206-201404

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iKGC3#,NGC30201206-201404

8846687701

main88466-87701

13 parts on this diagram · 2 diagrams in section
