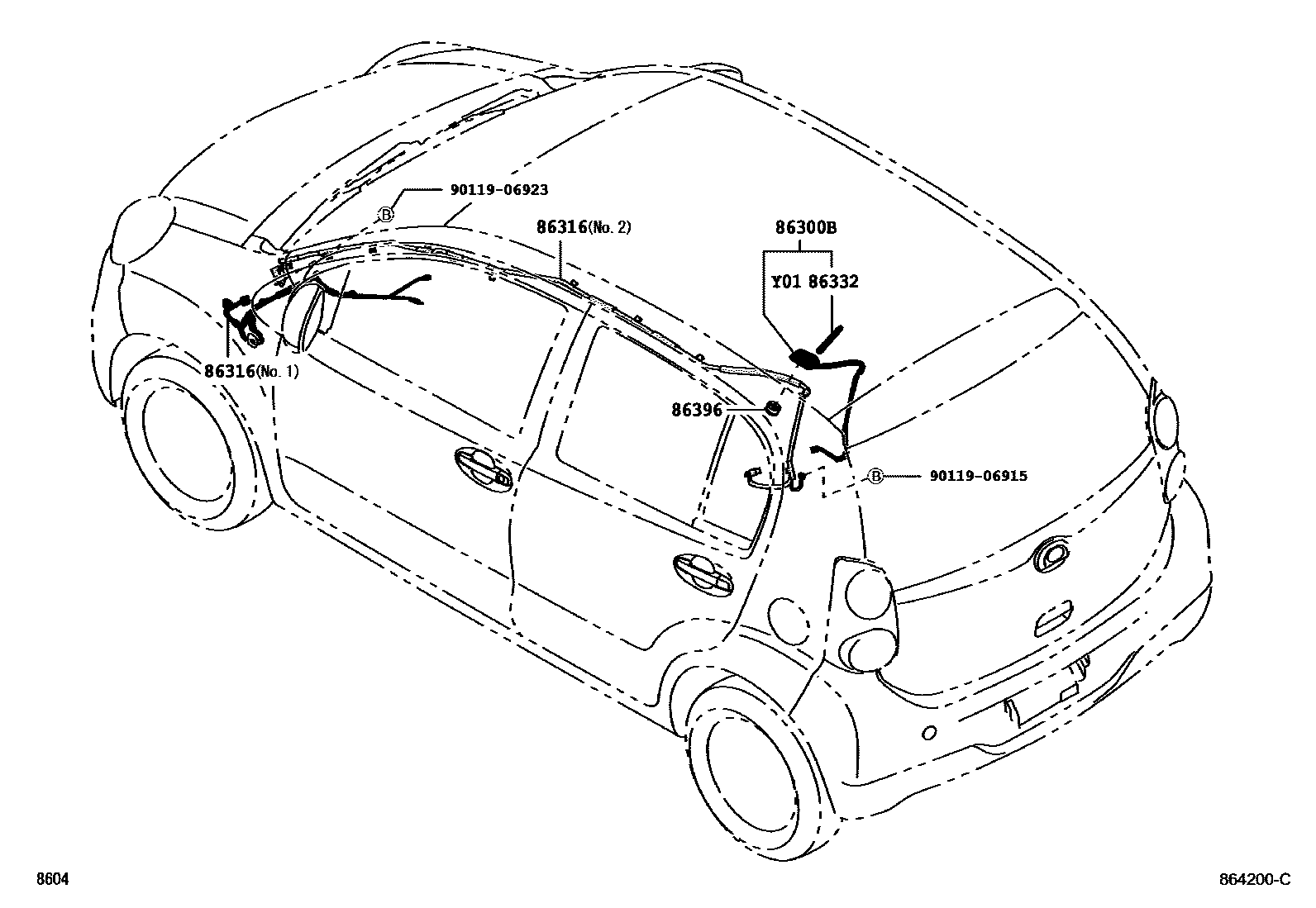

ANTENNA

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-B1120iKGC3#,NGC30201206-201404

86316CABLE, ANTENNA

main86316-B1350iKGC3#,NGC30201002-201206

sub86316-B1351

main86316-B1351iKGC3#,NGC30201402-201404

main86316-B1360iKGC3#,NGC30201002-201206

86332ROD, ANTENNA

main86332-B1070iKGC3#,NGC30201206-201404

86396NUT, ANTENNA

main86396-30050iKGC3#,NGC30201002-201102

main86396-47010iKGC3#,NGC30201103-201404

9011906915

main90119-06915

9011906923

main90119-06923

6 parts on this diagram · 1 diagram in section
