RADIO RECEIVER & AMPLIFIER & CONDENSER

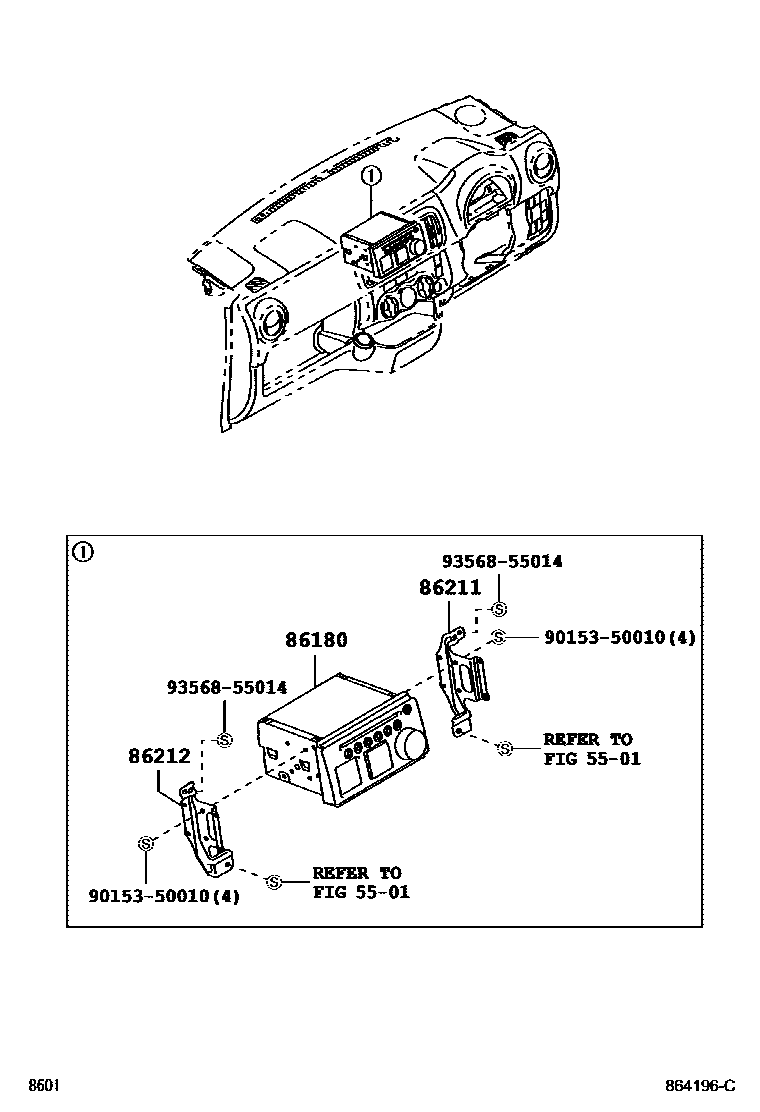

Parts diagram

5501

86180TUNER ASSY, STEREO COMPONENT

main86180-B1110-A0i201002-201206

main86180-B1110-A0i201002-201206

main86180-B1110-A0i201002-201206

main86180-B1110-A0i201002-201604

main86180-B1110-A0i201206-201604

main86180-B1110-A0i201206-201404

main86180-B1110-A0i201206-201604

main86180-B1110-A0i201404-201604

main86180-B1200-E1i201206-201404

main86180-B1200-E1i201206-201404

main86180-B1200-E1i201206-201604

main86180-B1200-E1i201002-201604

main86180-B1200-E1i201206-201604

main86180-B1200-E1i201404-201604

main86180-B1200-E1i201002-201206

main86180-B1200-E1i201002-201206

main86180-B1200-E1i201002-201206

main86180-B1200-E1i201002-201206

86211BRACKET, RADIO, NO.1

main86211-B1100i¥560201002-201206

main86211-B1100i¥560201206-201404

86212BRACKET, RADIO, NO.2

main86212-B1100i¥560201002-201206

main86212-B1100i¥560201206-201404

9015350010

main90153-50010¥70

9356855014

main93568-55014¥70

6 parts on this diagram · 1 diagram in section
