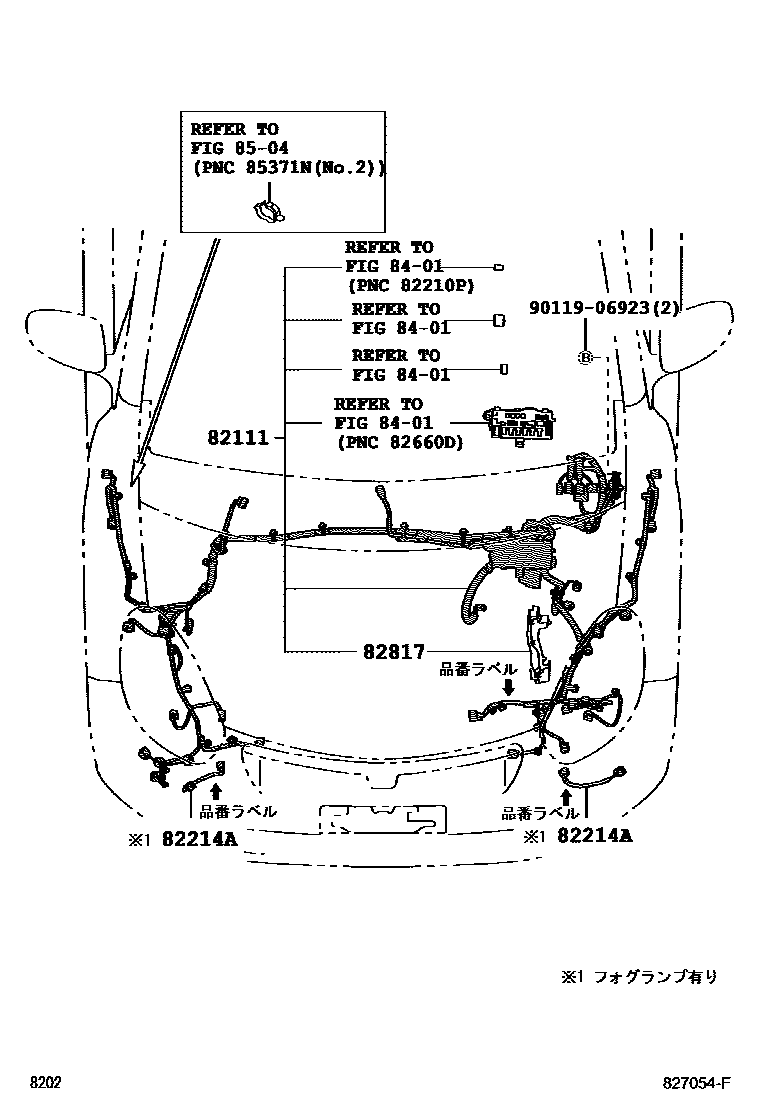

WIRING & CLAMP

0001 1�������� 0002 1����� 0003 1����� 0004 1����� 0005 1���&��� 0006 1��� 0007 1������&����� 0008 1����

82111WIRE, ENGINE ROOM MAIN

main82111-B1820iKGC3#..X201002-201206

main82111-B1830iNGC30..G201002-201206

main82111-B1840iKGC3#,NGC30..HANA201002-201206

main82111-B1B90iKGC3#..X201206-201404

main82111-B1C00iNGC30..G201206-201404

main82111-B1C20iKGC3#..HANA201206-201404

main82111-B1C40iNGC30..HANA201206-201404

main82111-B1D40iKGC30..X201404

main82111-B1E30iKGC35..X201404

main82111-B1E30iKGC30..X201404

main82111-B1E50iNGC30..G201404

main82111-B1E60iKGC35..HANA201404

main82111-B1E70iKGC30..HANA201404

main82111-B1E80iNGC30..HANA201404

82214AWIRE, LAMP

main82214-B1040iKGC3#,NGC30..HANA201002-201404

main82214-B1060iKGC3#,NGC30..HANA201404

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-B1050iKGC3#,NGC30201002-201404

8401

8504

9011906923

main90119-06923

6 parts on this diagram · 8 diagrams in section
