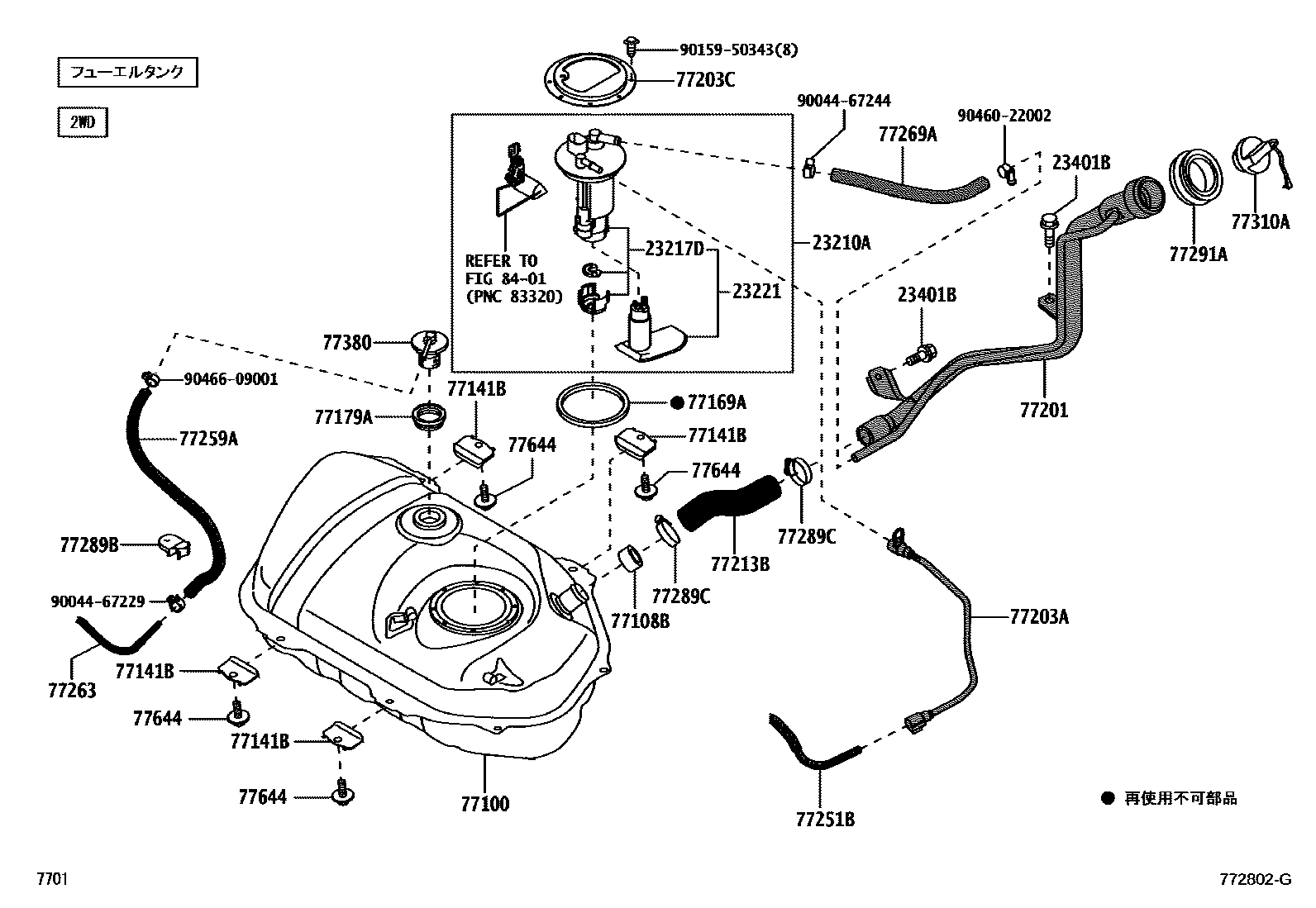

FUEL TANK & TUBE
23210APUMP ASSY, FUEL W/MOTOR & BRACKET
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23401BBOLT
77100TANK ASSY, FUEL
77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK
77141BREINFORCEMENT, FUEL TANK FLANGE, NO.1
77169AGASKET, FUEL SUCTION TUBE SET
77179AGASKET, FUEL TANK BREATHER TUBE
77203ATUBE SUB-ASSY, FUEL SUCTION
77203CBRACKET, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77259AHOSE, FUEL(FOR BREATHER TUBE)
77263TUBE, FUEL TANK TO CANISTER, NO.3
77289BCLAMP, FUEL TUBE, NO.3
77289CCLAMP, FUEL TUBE, NO.4
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77380VALVE ASSY, FUEL CUT OFF
77644BOLT, FUEL TANK
8401
9004467229
main90044-67229
9004467244
main90044-67244
9015950343
main90159-50343
9046022002
main90460-22002
9046609001
main90466-09001
29 parts on this diagram · 5 diagrams in section
