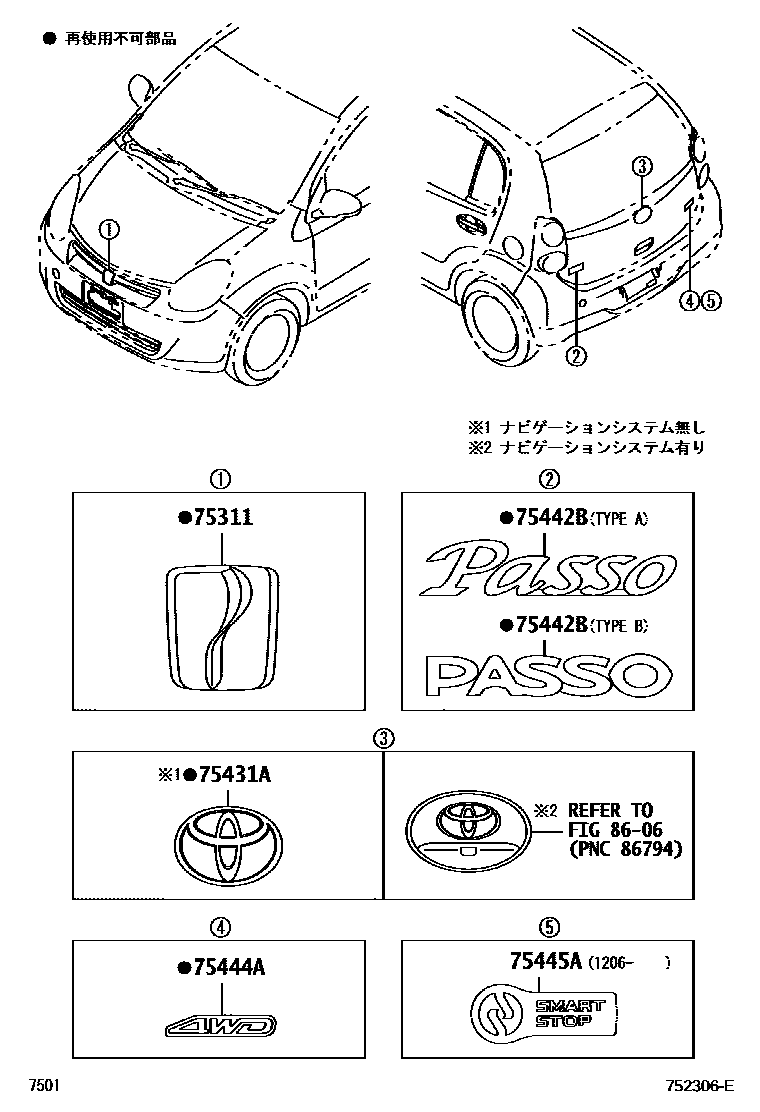

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-B1021iKGC3#,NGC30201206-201404

75431AEMBLEM, BACK DOOR, NO.1

main75431-B1070iKGC3#,NGC30201002-201008

main75431-B1080supersedes 75431-B1080iKGC3#,NGC30201008-201206

75442BPLATE, BACK DOOR NAME, NO.2

main75442-B1130iKGC3#,NGC30..G,X201002-201206

main75442-B1160supersedes 75442-B1170iKGC3#,NGC30..HANA201404

75444APLATE, BACK DOOR NAME, NO.4

main75444-B1040iKGC35201002-201206

75445APLATE, BACK DOOR NAME, NO.5

main75443-B1070iKGC30201206-201404

8606

6 parts on this diagram · 1 diagram in section
