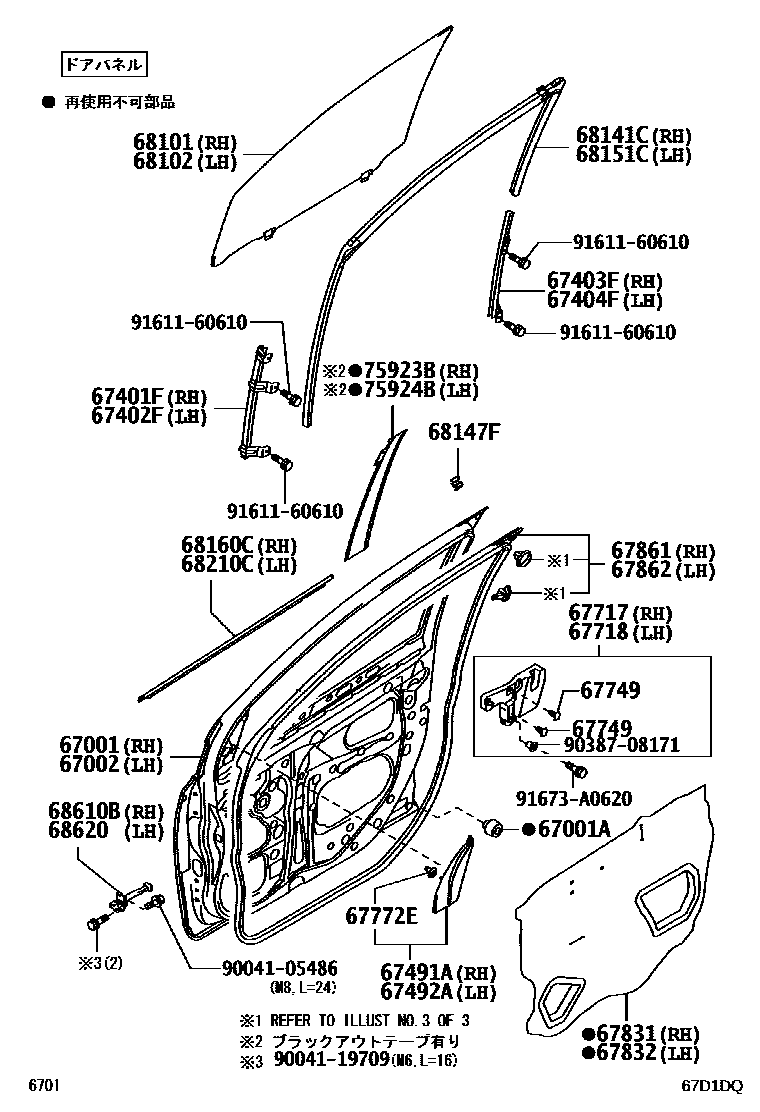

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67717PAD, FRONT DOOR TRIM, CENTER RH
67718PAD, FRONT DOOR TRIM, CENTER LH
67749CLIP, DOOR TRIM MOULDING
67772ECAP, FRONT DOOR TRIM RETAINER
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141CRUN, FRONT DOOR GLASS, RH
68147FSTOP, FRONT DOOR GLASS, UPPER
68151CRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75923BTAPE, BLACK OUT, NO.2 RH
TUYAKESI BLACK DUMMYCOLOR,B57 ,G50 ,P12 ,R40 ,R54 ,R62 ,S28 ,T25 ,W16
75924BTAPE, BLACK OUT, NO.2 LH
TUYAKESI BLACK DUMMYCOLOR,B57 ,G50 ,P12 ,R40 ,R54 ,R62 ,S28 ,T25 ,W16
9004105486
main90041-05486
9004119709
main90041-19709
9038708171
main90387-08171
9161160610
main91611-60610
91673A0620
main91673-A0620
33 parts on this diagram · 3 diagrams in section
