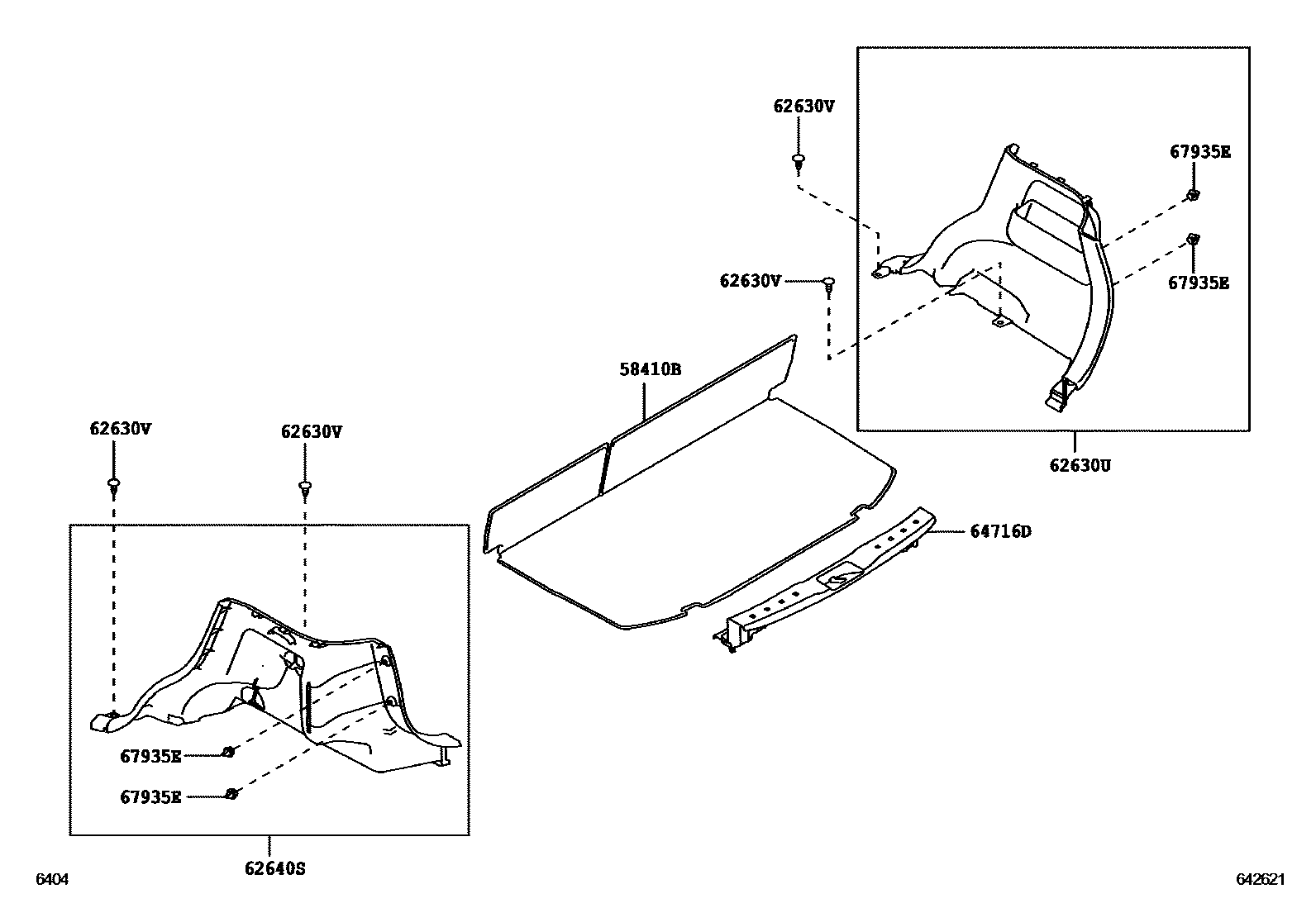

DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-B1090-B0iKGC3#,NGC30..G,X201002-201206

WARM GRAY,TRIM4#

main58410-B1090-E0iKGC3#,NGC30201404-201604

DK.BROWN,TRIM4#

62630UPANEL ASSY, QUARTER TRIM, REAR RH

main62630-B1080-E1iKGC3#,NGC30..HANA201206-201404

EBONY BROWN,TRIM4#

main62630-B1100-E0iKGC3#,NGC30..G,X201002-201206

LINEN BEIGE,TRIM4#

main62630-B1100-E1iKGC3#..X201206-201404

EBONY BROWN,TRIM42

main62630-B1080-E0iKGC3#..X201009-201206

62630VCLIP (FOR QUARTER REAR TRIM)

main90044-68046-B2×4iKGC3#,NGC30201404-201604

DK.GRAY

main90044-68046-N1×4iKGC3#,NGC30201002-201204

BLACK

62640SPANEL ASSY, QUARTER TRIM, REAR LH

main62640-B1100-E1iKGC3#,NGC30..HANA201002-201206

EBONY BROWN,TRIM4#

main62640-B1110-E0iNGC30..G201206-201404

LINEN BEIGE,TRIM40

main62640-B1110-E1iKGC3#..X201206-201404

EBONY BROWN,TRIM42

main62640-B1100-E0iKGC3#..X201009-201206

64716DCOVER, DECK TRIM, REAR

main64716-B1060-E0iKGC3#,NGC30..G,X201002-201206

LINEN BEIGE,TRIM4#

main64716-B1060-E1iKGC3#,NGC30..HANA201206-201404

EBONY BROWN,TRIM4#

67935ERETAINER, DOOR TRIM

main67771-B2010×4iKGC3#,NGC30201002-201206

6 parts on this diagram · 1 diagram in section
