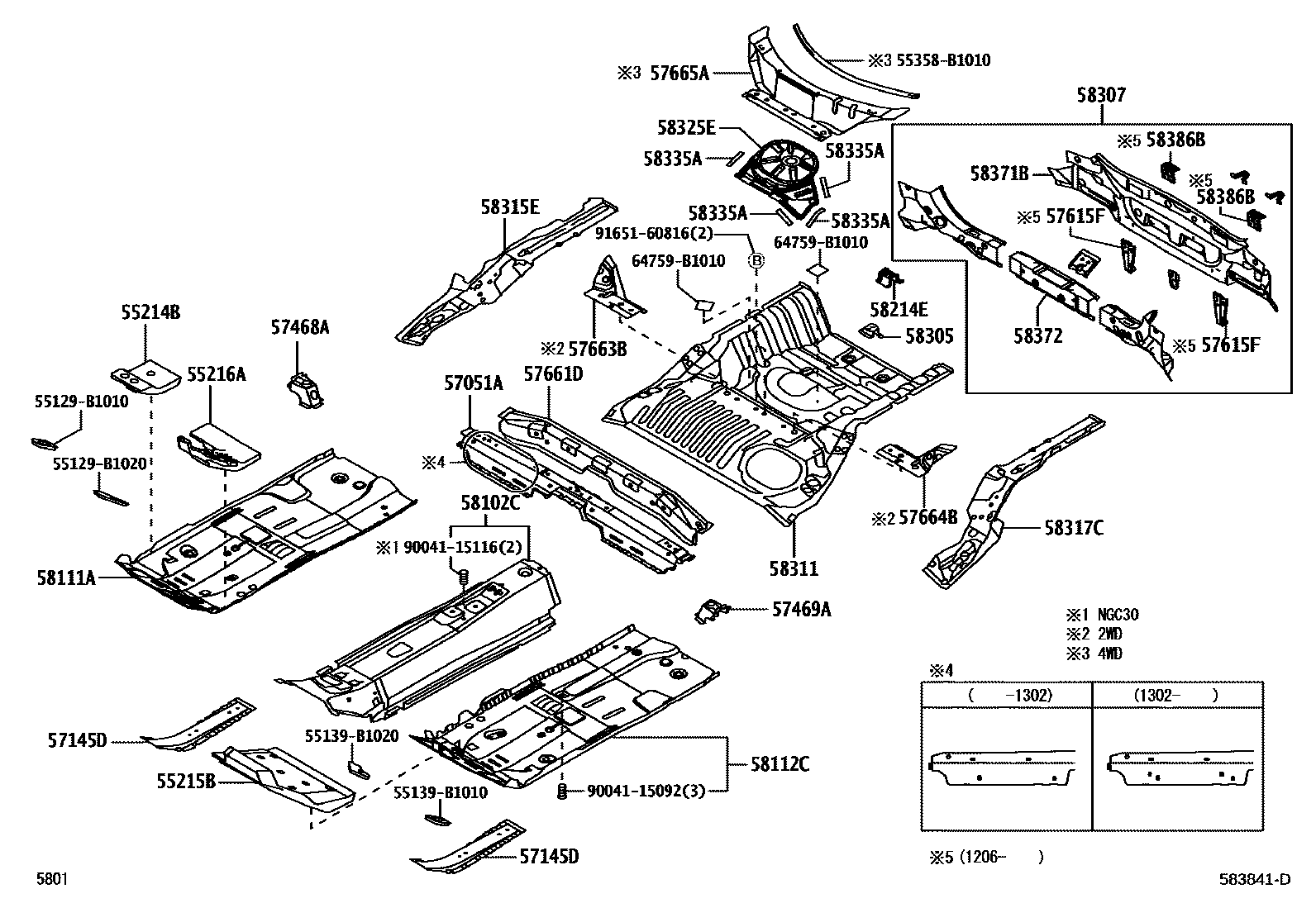

FLOOR PAN & LOWER BACK PANEL
55214BPAD, DASH PANEL INSULATOR, NO.2
55215BPAD, DASH PANEL INSULATOR, NO.3
55216APAD, DASH PANEL INSULATOR, NO.4
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57145DREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57615FBRACKET, REAR BUMPER MOUNTING
57661DMEMBER, REAR FLOOR CROSS, FRONT
57663BPANEL, REAR FLOOR SIDE, REAR RH
57664BPANEL, REAR FLOOR SIDE, REAR LH
57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
58102CREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58214EBRACKET, JACK SUPPORT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58335ASEAL, REAR FLOOR SIDE SERVICE HOLE COVER
58371BPANEL, BODY LOWER BACK, OUTER
58372PANEL, BODY LOWER BACK, INNER
58386BBRACKET, REAR BUMPER COVER, NO.2
55129B1010COVER, DASH PANEL HOLE
main55129-B1010
55129B1020COVER, DASH PANEL HOLE
main55129-B1020
55139B1010REINFORCEMENT, DASH TO FRAME BRACE
main55139-B1010
55139B1020REINFORCEMENT, DASH TO FRAME BRACE
main55139-B1020
55358B1010PLATE, WATER PROOF
main55358-B1010
64759B1010COVER, SHOCK ABSORBER HEAD
main64759-B1010
9004115092
main90041-15092
9004115116
main90041-15116
9165160816
main91651-60816
35 parts on this diagram · 1 diagram in section
