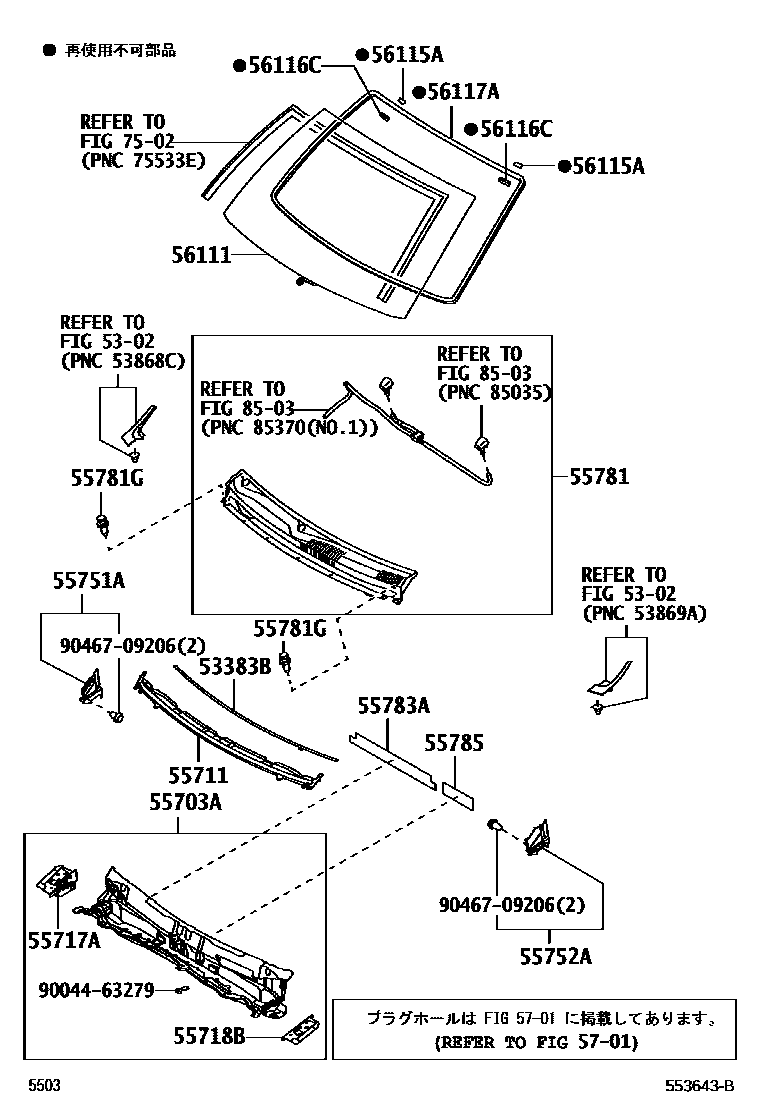

COWL PANEL & WINDSHIELD GLASS

5302

53383BSEAL, HOOD TO COWL TOP

main53383-B1040iKGC3#,NGC30201206-201404

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-B1130iKGC3#,NGC30201002-201206

main55703-B1131iKGC3#,NGC30201402-201404

main55703-B1151iKGC3#,NGC30201404-201604

55711PANEL, COWL TOP, OUTER

main55701-B1030iKGC3#,NGC30201002-201206

55717APANEL, COWL TOP SIDE, INNER RH

main55717-B1050iKGC3#,NGC30201002-201206

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-B1050iKGC3#,NGC30201002-201206

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-B1020iKGC3#,NGC30201002-201206

main55751-B1030iKGC3#,NGC30201404

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55752-B1020iKGC3#,NGC30201002-201206

main55752-B1030iKGC3#,NGC30201404

55781LOUVER, COWL VENTILATOR

main55708-B1060supersedes 55708-B1050iKGC3#,NGC30201002-201206

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90044-67496×2iKGC3#,NGC30201002-201206

55783APAD, COWL TOP SILENCER

main55783-B1010iKGC3#,NGC30201206-201404

55785PAD, COWL OUTER PANEL, NO.2

main55785-B1010iKGC3#,NGC30201002-201206

56111GLASS, WINDSHIELD

main56101-B1150supersedes 56101-B1170iKGC3#,NGC30201002-201206

main56101-B1180supersedes 56101-B1170iKGC3#,NGC30201404

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-97402×2iKGC3#,NGC30201002-201206

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401×2iKGC3#,NGC30201002-201206

56117ADAM, WINDOW GLASS ADHESIVE

main56117-B1010iKGC3#,NGC30201002-201206

5701

7502

8503

9004463279

main90044-63279

9046709206

main90467-09206

21 parts on this diagram · 1 diagram in section
