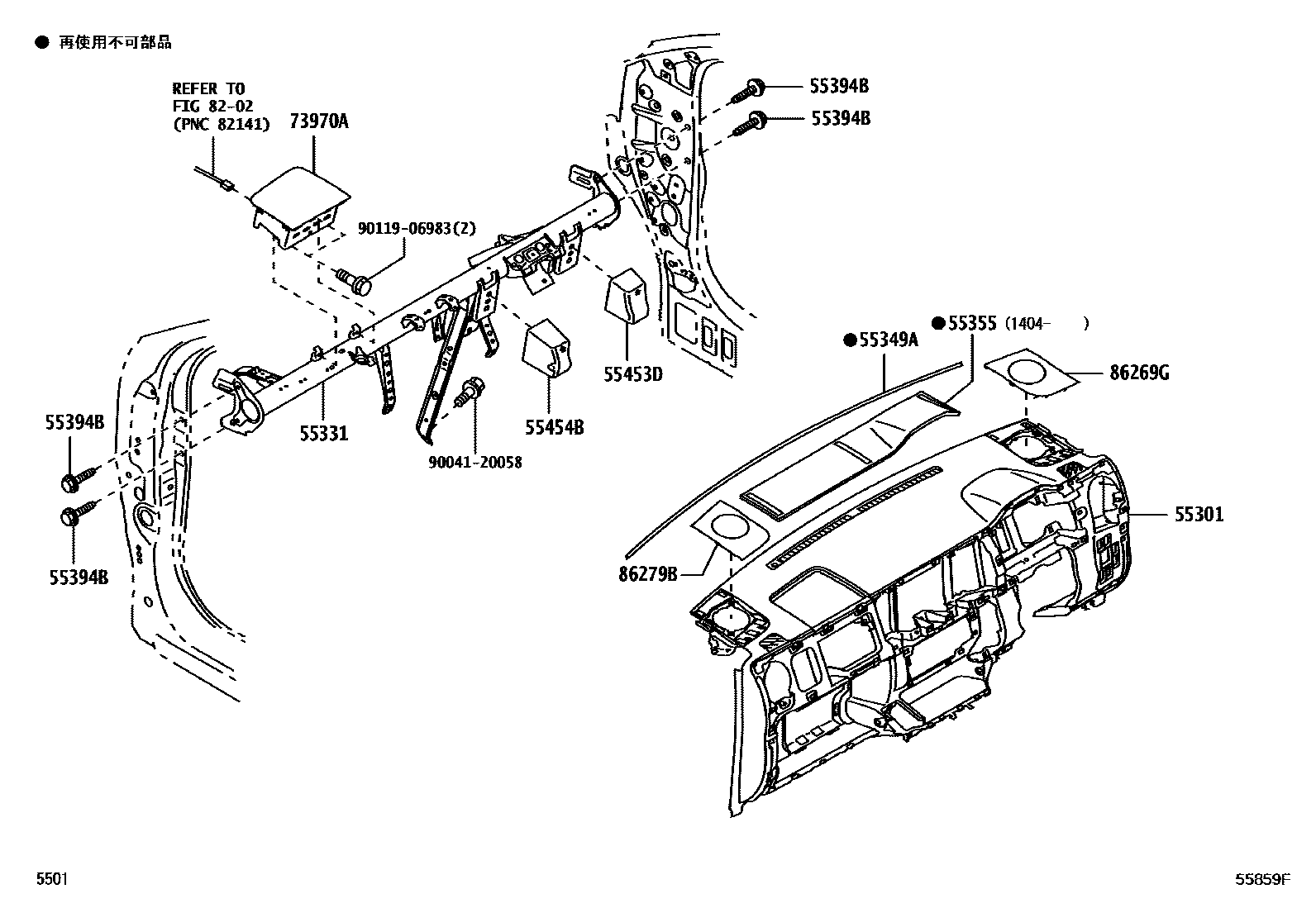

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1�������� 0003 1�������� 0004 1��������

55301PANEL SUB-ASSY, INSTRUMENT

main55311-B1100-E0iKGC3#,NGC30201002-201604

EBONY BROWN,TRIM4#

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-B1100iKGC3#,NGC30201002-201404

sub55305-B1101

main55305-B1101iKGC3#,NGC30201404

55349ACUSHION, INSTRUMENT PANEL

main55349-B1020iKGC3#,NGC30201002-201404

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-B1070iKGC3#,NGC30201404-201604

55394BBOLT, INSTRUMENT PANEL

main55394-B2030iKGC3#,NGC30201002-201404

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-B1060iKGC3#,NGC30201002-201404

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-B1060iKGC3#,NGC30201002-201404

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-B1080-E0iKGC3#,NGC30201002-201604

EBONY BROWN,TRIM4#

8202

86269GGRILLE, SPEAKER, RH

main86269-B1060-E0iKGC3#,NGC30201002-201604

EBONY BROWN,TRIM4#

86279BGRILLE, SPEAKER, LH

main86279-B1020-E0iKGC3#,NGC30201002-201604

EBONY BROWN,TRIM4#

9004120058

main90041-20058

9011906983

main90119-06983

13 parts on this diagram · 4 diagrams in section
