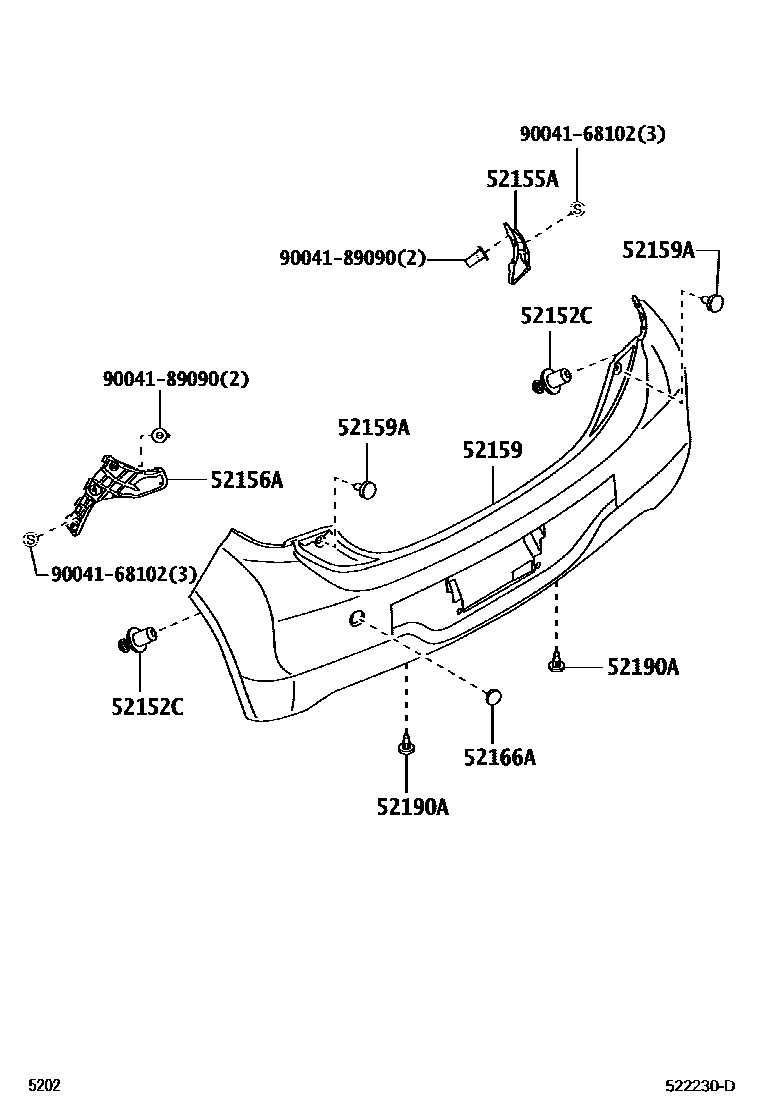

REAR BUMPER & BUMPER STAY
52152CCLIP, REAR BUMPER SIDE
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
WHITE,W09
WHITE PEARL.MC.,W16
WHITE PEARL MC.CS,W24
SILVER ME.,S28
BLACK M.M.,X07
RED,R40
DK.RED.MC,R54
LT.ORANGE.M.M.,R62
PINK PEARL SE,R65 ,X82
BEIGE.ME.,T25
LT.GREEN.ME.,G50 ,X88
LT.GREEN.ME.,G50
OLIVE ME.SE,G52
LT.BLUE ME.OP.,B57
LIGHT BLUE M.M.,B67
DARK BLUE SE.,B79
GRAYISH PURPLE ME.OP.,P12 ,X89
GRAYISH PURPLE ME.OP.,P12
52159ABOLT(FOR REAR BUMPER COVER)
52166ACOVER, REAR BUMPER, UPR LH
WHITE,W09
WHITE PEARL.MC.,W16
WHITE PEARL MC.CS,W24
SILVER ME.,S28
BLACK M.M.,X07
RED,R40
DK.RED.MC,R54
LT.ORANGE.M.M.,R62
PINK PEARL SE,R65 ,X82
BEIGE.ME.,T25
LT.GREEN.ME.,G50 ,X88
LT.GREEN.ME.,G50
OLIVE ME.SE,G52
LT.BLUE ME.OP.,B57
LIGHT BLUE M.M.,B67
DARK BLUE SE.,B79
GRAYISH PURPLE ME.OP.,P12
GRAYISH PURPLE ME.OP.,P12 ,X89
52190ACLIP
sub90044-68378
9004168102
main90041-68102
9004189090
main90041-89090
9 parts on this diagram · 1 diagram in section
