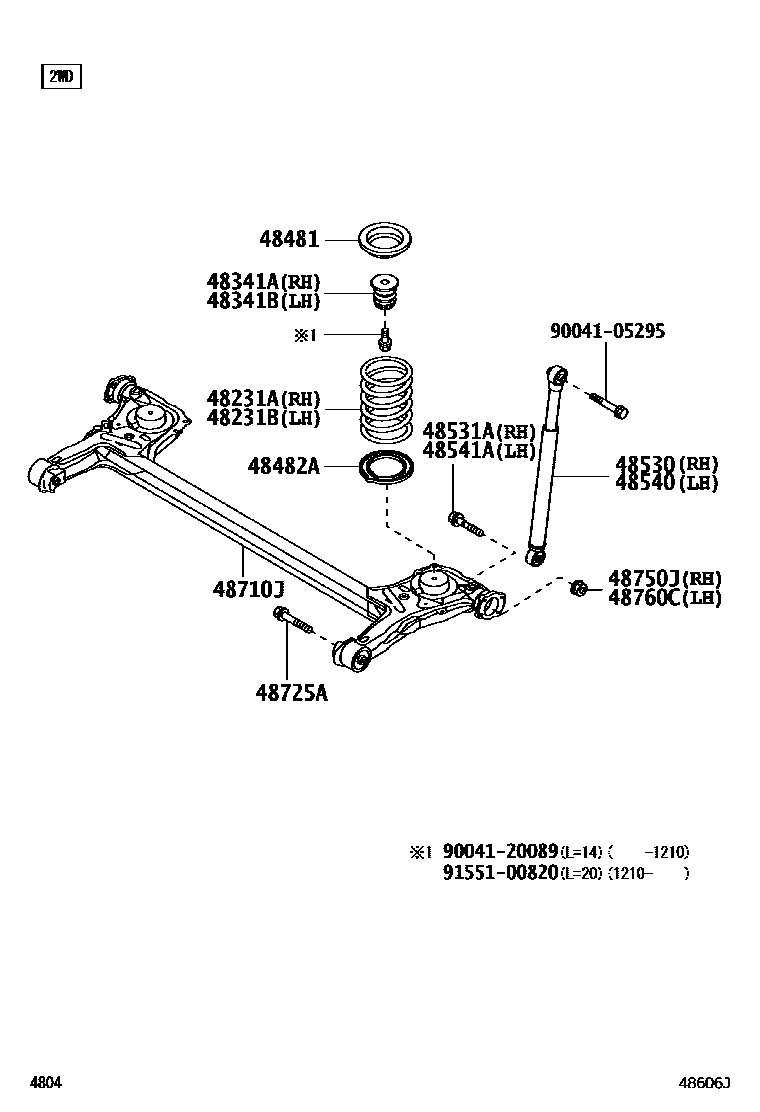

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48481SEAT, REAR SPRING, UPPER
48530ABSORBER ASSY, SHOCK, REAR RH
48531ABOLT, UNION(FOR REAR SHOCK ABSORBER RH)
48540ABSORBER ASSY, SHOCK, REAR LH
48541ABOLT, UNION(FOR REAR SHOCK ABSORBER LH)
48710JARM ASSY, REAR SUSPENSION, NO.1
48725ABOLT(FOR LOWER CONTROL ARM)
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
9004105295
main90041-05295
9004120089
main90041-20089
9155100820
main91551-00820
17 parts on this diagram · 2 diagrams in section
