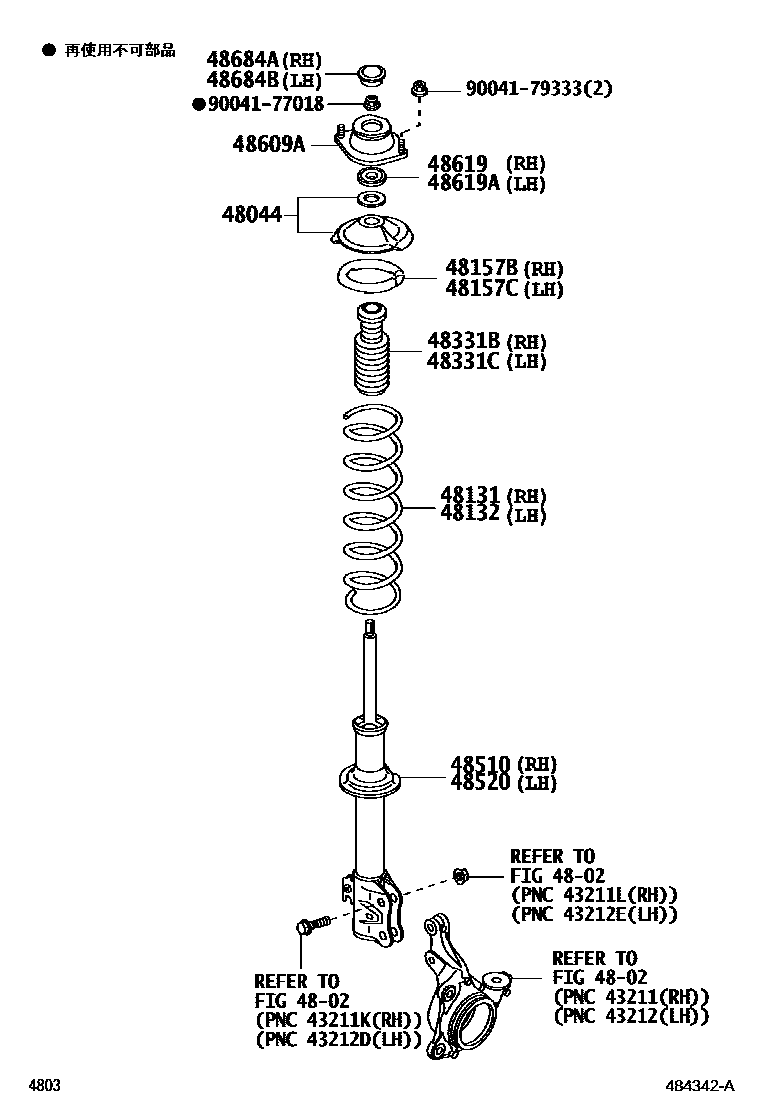

FRONT SPRING & SHOCK ABSORBER

4802

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48470-97403×2iKGC3#,NGC30201206-201404

48131SPRING, FRONT COIL, RH

main48131-B1250iKGC30201404-201604

main48131-B1260iKGC35,NGC30201206-201404

48132SPRING, FRONT COIL, LH

main48131-B1250iKGC30201002-201206

main48131-B1260iKGC35,NGC30201002-201206

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-B1010iKGC3#,NGC30201002-201206

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-B1010iKGC3#,NGC30201002-201206

48331BBUMPER, FRONT SPRING, RH

main48331-B1010iKGC3#,NGC30201002-201206

48331CBUMPER, FRONT SPRING, LH

main48331-B1010iKGC3#,NGC30201002-201206

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-B1200supersedes 48510-B1010iKGC30,NGC30..G,HANA201206-201404

main48510-B1250iKGC35201404

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-B1200supersedes 48510-B1010iKGC30,NGC30..G,HANA201206-201404

main48510-B1250iKGC35201206-201404

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-B1050×2iKGC3#,NGC30201002-201202

main48609-B1051×2iKGC3#,NGC30201404

48619BEARING, STRUT MOUNTING, RH

main48619-B2010iKGC3#,NGC30201206-201404

48619ABEARING, STRUT MOUNTING, LH

main48619-B2010iKGC3#,NGC30201404

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-87202iKGC3#,NGC30201002-201206

main48684-B2010iKGC3#,NGC30201404

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-87202iKGC3#,NGC30201206-201309

main48684-B2010iKGC3#,NGC30201404

9004177018

main90041-77018

9004179333

main90041-79333

17 parts on this diagram · 1 diagram in section
