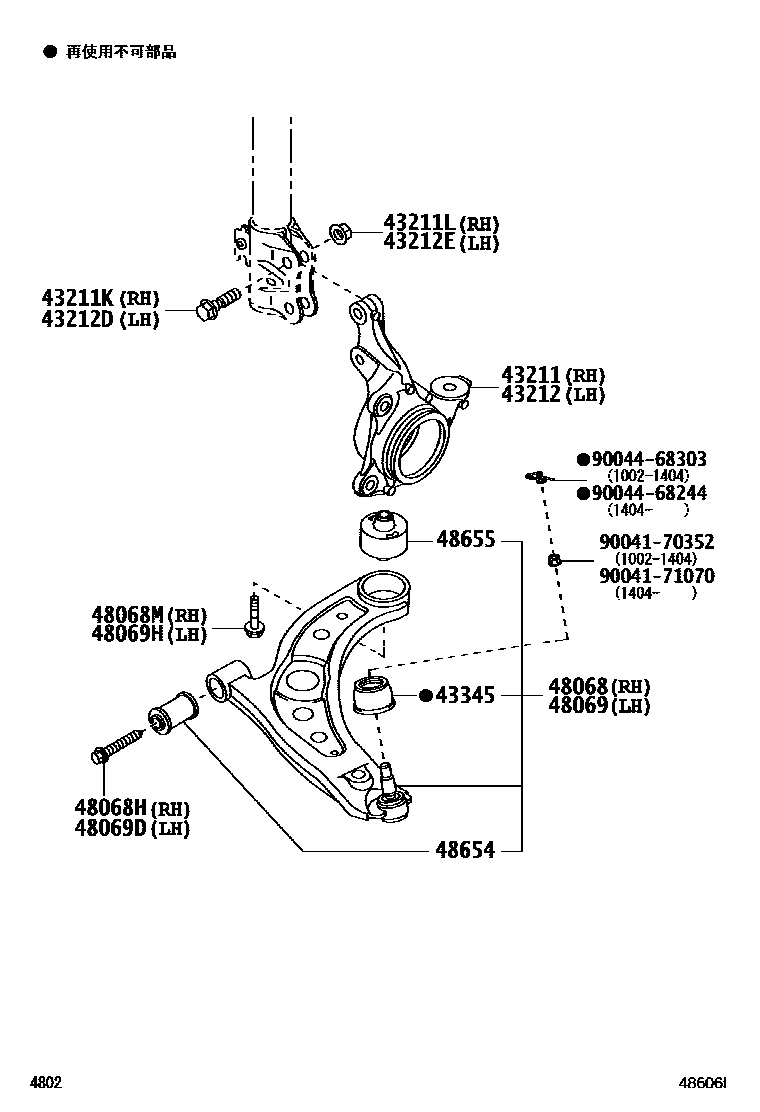

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-B1040iKGC3#,NGC30201002-201404

43211KBOLT (FOR STEERING KNUCKLE RH)

main90041-01652iKGC3#,NGC30201002-201203

main90041-01701iKGC3#,NGC30201204-201404

43211LNUT (FOR STEERING KNUCKLE RH)

main90041-70362iKGC3#,NGC30201002-201201

main90041-70393iKGC3#,NGC30201202-201404

43212KNUCKLE, STEERING, LH

main43212-B1040iKGC3#,NGC30201002-201404

43212DBOLT (FOR STEERING KNUCKLE LH)

main90041-01652iKGC3#,NGC30201002-201203

main90041-01701iKGC3#,NGC30201204-201404

43212ENUT (FOR STEERING KNUCKLE LH)

main90041-70362iKGC3#,NGC30201002-201201

main90041-70393iKGC3#,NGC30201202-201404

43345COVER, LOWER BALL JOINT DUST

main43345-B2010iKGC3#,NGC30201002-201601

sub43345-B2011

main43345-B2011iKGC3#,NGC30201602

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-B1110iKGC3#,NGC30201002-201404

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90041-05296iKGC3#,NGC30201002-201404

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90041-05332iKGC3#,NGC30201002-201212

sub90041-05482

main90041-05482iKGC3#,NGC30201301-201404

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-B1110iKGC3#,NGC30201002-201404

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90041-05296iKGC3#,NGC30201002-201404

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90041-05332iKGC3#,NGC30201002-201212

sub90041-05482

main90041-05482iKGC3#,NGC30201301-201404

48654BUSH, LOWER ARM

main48654-B2010iKGC3#,NGC30201002-201404

48655BUSH, LOWER ARM, NO.2

main48655-B1020iKGC3#,NGC30201002-201404

9004170352

main90041-70352

9004171070

main90041-71070

9004468244

main90044-68244

9004468303

main90044-68303

19 parts on this diagram · 1 diagram in section
