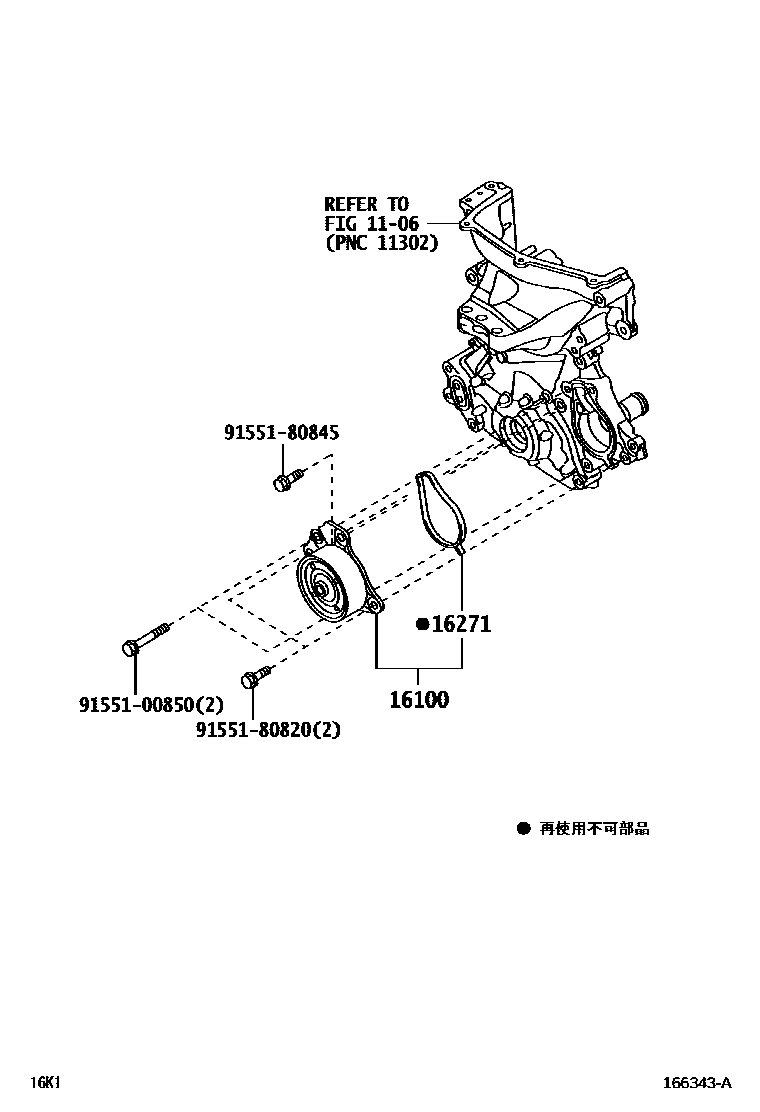

WATER PUMP

0001 1 0002 1 0003 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-80004i1NRFE..NGC30201002-201308

sub16100-80010

sub91552-81050

main16100-80007i1KRFE..KGC3#201002-201404

main16100-80010i1NRFE..NGC30201308-201404

sub16100-80019

main16100-80012i1KRFE..KGC3#201404

sub16100-80015

16271GASKET, WATER PUMP

main16271-40020i1KRFE..KGC3#201002-201404

main16271-40030i1KRFE..KGC3#201404

main16271-47031i1NRFE..NGC30201002-201404

9155100850

main91551-00850

9155180820

main91551-80820

9155180845

main91551-80845

6 parts on this diagram · 3 diagrams in section
