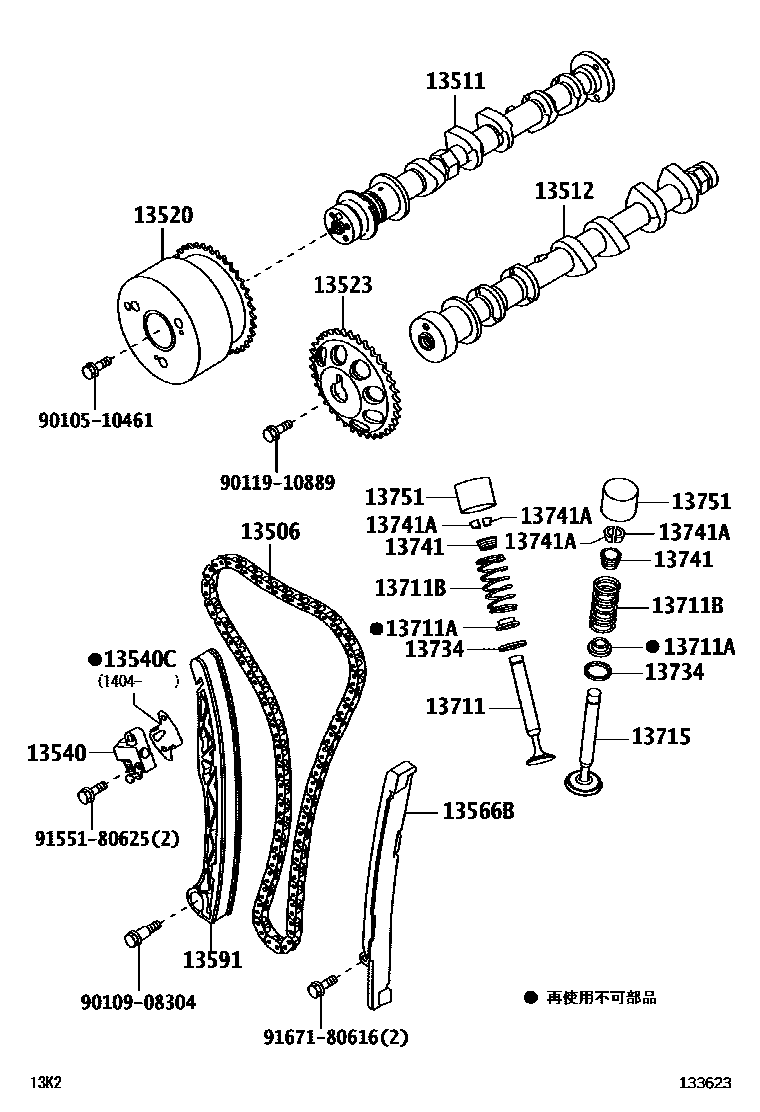

CAMSHAFT & VALVE

0001 1 0002 1

13506CHAIN SUB-ASSY

main13506-40010i1KRFE..KGC3#201002-201206

main13506-40020i1KRFE..KGC3#201404

main13506-47010i1NRFE..NGC30201002-201206

main13506-47030i1NRFE..NGC30201404

13511CAMSHAFT

main13501-40040i1KRFE..KGC3#201206-201402

main13501-40041i1KRFE..KGC3#201403-201404

main13501-47020i1NRFE..NGC30201404

main13501-B1010i1KRFE..KGC3#201404

13512CAMSHAFT, NO.2

main13502-40010i1KRFE..KGC3#201002-201206

main13502-40011i1KRFE..KGC3#201403-201404

main13502-40040i1KRFE..KGC3#201404

main13502-47010i1NRFE..NGC30201404

13520SPROCKET ASSY, CAMSHAFT TIMING

main13520-40020i1KRFE..KGC3#201206-201404

sub13520-40021

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-22020i1KRFE..KGC3#201404

13540TENSIONER ASSY, CHAIN, NO.1

main13540-21020i1KRFE..KGC3#201206-201404

main13540-47010i1NRFE..NGC30201206-201311

main13540-47011i1NRFE..NGC30201312-201404

13540CGASKET(FOR CHAIN TENSIONER)

main13552-40010i1KRFE..KGC3#201404

main13552-47010i1NRFE..NGC30201002-201206

13566BGUIDE, TIMING CHAIN

main13566-40020i1KRFE..KGC3#201002-201206

main13566-40030i1KRFE..KGC3#201404

sub13566-40031

main13566-47010i1NRFE..NGC30201206-201209

main13566-47030i1NRFE..NGC30201404

13591ARM, TIMING CHAIN TENSION

main13591-40020i1KRFE..KGC3#201206-201404

main13591-40040i1KRFE..KGC3#201404

sub13591-40041

main13591-47010i1NRFE..NGC30201002-201206

main13591-47030i1NRFE..NGC30201210-201404

sub13591-47050

13711VALVE, INTAKE

main13711-40040×6i1KRFE..KGC3#201002-201206

main13711-40050×6i1KRFE..KGC3#201404

main13711-47010×8i1NRFE..NGC30201002-201206

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02092×6i1KRFE..KGC3#201404

sub90913-02128

main90913-02093×6i1KRFE..KGC3#201206-201404

13711BSPRING, COMPRESSION(FOR INNER)

main90501-25063×12i1KRFE..KGC3#201002-201206

main90501-25064×12i1KRFE..KGC3#201002-201206

main90501-25069×12i1KRFE..KGC3#201404

13715VALVE, EXHAUST

main13715-40040×6i1KRFE..KGC3#201206-201402

main13715-40050×6i1KRFE..KGC3#201403-201404

main13715-47010×8i1NRFE..NGC30201002-201206

13734SEAT, VALVE SPRING

main13734-40010×12i1KRFE..KGC3#201206-201404

main13734-62020×16i1NRFE..NGC30201206-201404

13741RETAINER, VALVE SPRING

main13741-20021×16i1NRFE..NGC30201206-201401

main13741-22021×12i1KRFE..KGC3#201002-201206

main13741-36010×16i1NRFE..NGC30201404

13741ALOCK, VALVE SPRING RETAINER

main90913-03028×32i1NRFE..NGC30201206-201404

main90913-03031×24i1KRFE..KGC3#201404

13751LIFTER, VALVE

main13751-23030×12i1KRFE..KGC3#201206-201404

main13751-23040×12i1KRFE..KGC3#201206-201404

main13751-23050×12i1KRFE..KGC3#201002-201206

main13751-23060×12i1KRFE..KGC3#201002-201206

main13751-23070×12i1KRFE..KGC3#201002-201206

main13751-23080×12i1KRFE..KGC3#201206-201404

main13751-23090×12i1KRFE..KGC3#201002-201206

main13751-23100×12i1KRFE..KGC3#201206-201404

main13751-23110×12i1KRFE..KGC3#201206-201404

main13751-23120×12i1KRFE..KGC3#201002-201206

main13751-23130×12i1KRFE..KGC3#201002-201206

main13751-23140×12i1KRFE..KGC3#201206-201404

main13751-23150×12i1KRFE..KGC3#201002-201206

main13751-23160×12i1KRFE..KGC3#201002-201206

main13751-23170×12i1KRFE..KGC3#201002-201206

main13751-23180×12i1KRFE..KGC3#201206-201404

main13751-23190×12i1KRFE..KGC3#201206-201404

main13751-23200×12i1KRFE..KGC3#201206-201404

main13751-23210×12i1KRFE..KGC3#201206-201404

main13751-23220×12i1KRFE..KGC3#201002-201206

main13751-23230×12i1KRFE..KGC3#201206-201404

main13751-23240×12i1KRFE..KGC3#201206-201404

main13751-23250×12i1KRFE..KGC3#201206-201404

main13751-23260×12i1KRFE..KGC3#201206-201404

main13751-23270×12i1KRFE..KGC3#201206-201404

main13751-23280×12i1KRFE..KGC3#201002-201206

main13751-23290×12i1KRFE..KGC3#201002-201206

main13751-23300×12i1KRFE..KGC3#201206-201404

main13751-23310×12i1KRFE..KGC3#201002-201206

main13751-40030×12i1KRFE..KGC3#201404

sub13751-40630

main13751-40040×12i1KRFE..KGC3#201404

sub13751-40640

main13751-40050×12i1KRFE..KGC3#201404

sub13751-40650

main13751-40060×12i1KRFE..KGC3#201404

sub13751-40660

main13751-40070×12i1KRFE..KGC3#201404

sub13751-40670

main13751-40080×12i1KRFE..KGC3#201404

sub13751-40680

main13751-40090×12i1KRFE..KGC3#201404

sub13751-40690

main13751-40100×12i1KRFE..KGC3#201404

sub13751-40700

main13751-40110×12i1KRFE..KGC3#201404

sub13751-40710

main13751-40120×12i1KRFE..KGC3#201404

sub13751-40720

main13751-40130×12i1KRFE..KGC3#201404

sub13751-40730

main13751-40140×12i1KRFE..KGC3#201404

sub13751-40740

main13751-40150×12i1KRFE..KGC3#201404

sub13751-40750

main13751-40160×12i1KRFE..KGC3#201404

sub13751-40760

main13751-40170×12i1KRFE..KGC3#201404

sub13751-40770

main13751-40180×12i1KRFE..KGC3#201404

sub13751-40780

main13751-40190×12i1KRFE..KGC3#201404

sub13751-40790

main13751-40200×12i1KRFE..KGC3#201404

sub13751-40800

main13751-40210×12i1KRFE..KGC3#201404

sub13751-40810

main13751-40220×12i1KRFE..KGC3#201404

sub13751-40820

main13751-40230×12i1KRFE..KGC3#201404

sub13751-40830

main13751-40240×12i1KRFE..KGC3#201404

sub13751-40840

main13751-40250×12i1KRFE..KGC3#201404

sub13751-40850

main13751-40260×12i1KRFE..KGC3#201404

sub13751-40860

main13751-40270×12i1KRFE..KGC3#201404

sub13751-40870

main13751-40280×12i1KRFE..KGC3#201404

sub13751-40880

main13751-40290×12i1KRFE..KGC3#201404

sub13751-40890

main13751-40300×12i1KRFE..KGC3#201404

sub13751-40A10

main13751-40310×12i1KRFE..KGC3#201404

sub13751-40A20

9010510461

main90105-10461

9010908304

main90109-08304

9011910889

main90119-10889

9155180625

main91551-80625

9167180616

main91671-80616

22 parts on this diagram · 2 diagrams in section
