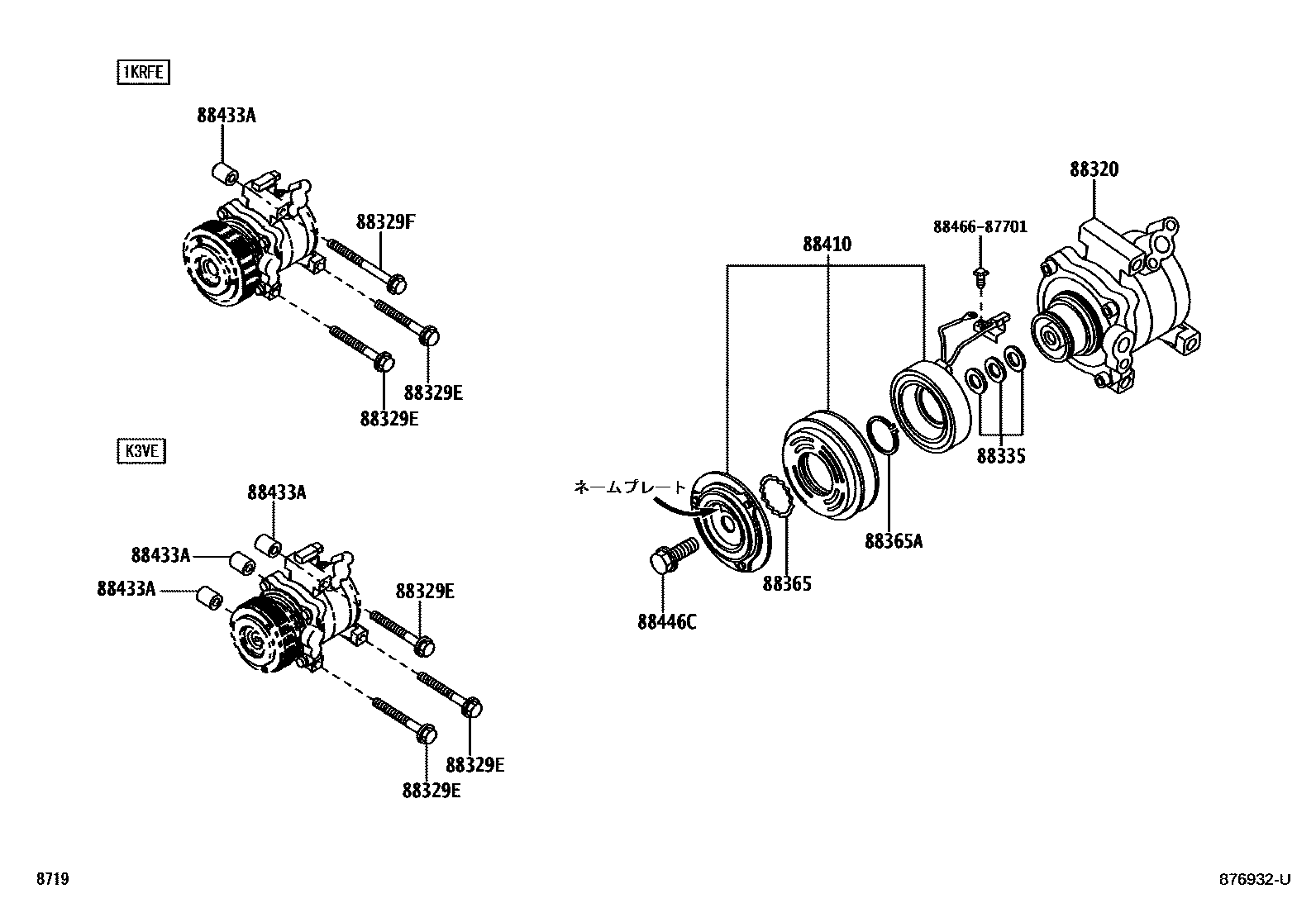

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88320COMPRESSOR ASSY, COOLER

main88320-97401iQNC10200405-200512

sub88310-B1060

sub88310-B1070

main88320-97401iKGC1#200405-200512

sub88310-B1060

sub88310-B1070

main88320-B1020iQNC10200512-201002

main88320-B1020iKGC1#200512-201002

88329EBOLT, COMPRESSOR, NO.1

main88329-B1010iKGC1#200405-201002

main88329-B1030iQNC10200405-201002

88329FBOLT, COMPRESSOR, NO.2

main88329-B1020iKGC1#200405-201002

88335GASKET KIT, OVERHAUL

main88335-14020iKGC1#,QNC10200405-200512

88365RING, SNAP

main90099-07125iKGC1#,QNC10200405-201002

88365ARING, SNAP (FOR COMPRESSOR)

main88365-87201iKGC1#,QNC10200405-201002

88410CLUTCH ASSY, MAGNET

main88410-97403iKGC1#200405-200512

main88410-97404iQNC10200405-200512

main88410-B1030iQNC10200512-201002

main88410-B1040iKGC1#200512-201002

88433ASTAY, COMPRESSOR

main88433-B1010iQNC10200405-201002

main88433-B1020iKGC1#200405-201002

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iKGC1#,QNC10200405-201002

8846687701

main88466-87701

10 parts on this diagram · 2 diagrams in section
